Monitoring Display Options
The X Series unit gives you great flexibility in how you display a patient’s vital signs
information. By pressing the Display/Home button ( ) on the front panel, you can
successively display the patient’s vital signs information in these three windows:
• Waveform Display window, which initially displays an ECG waveform trace and numeric
displays for each monitoring function.
• Trends Status window, which displays a report listing vital signs measurements that the X
Series unit logs automatically, and the primary ECG waveform trace.
• Large Numerics Display window, on which large numeric displays of all vital signs
measurements appear.

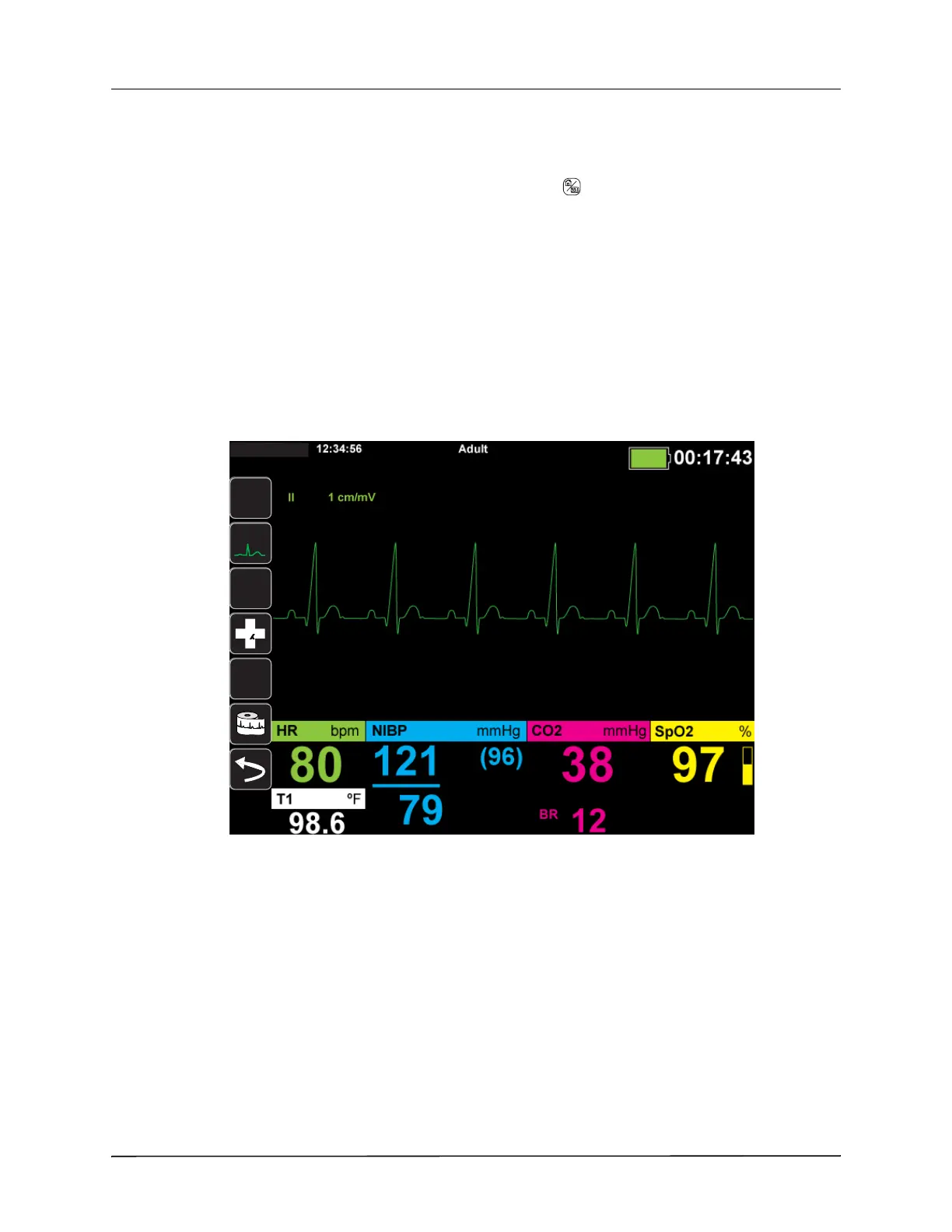

The Waveform Display window appears when you power on the X Series unit. Initially, the
Waveform Display window displays a single ECG waveform trace. All other monitored values
appear in numeric display areas at the bottom of the screen:
You can display up to four waveform traces that you specify on the Waveform Display window.
You will determine how to add waveform traces to this window later in this chapter.
