Patient Alarm Display
9650-001355-01 Rev. M X Series Operator’s Guide 5-3
Patient Alarm Display
When a patient’s vital signs measurements trigger an alarm, in addition to sounding the patient
alarm, the X Series unit displays an alarm message, and changes the display characteristics of
the monitoring function’s numeric display (the alarming parameter appears in red against a
white background).

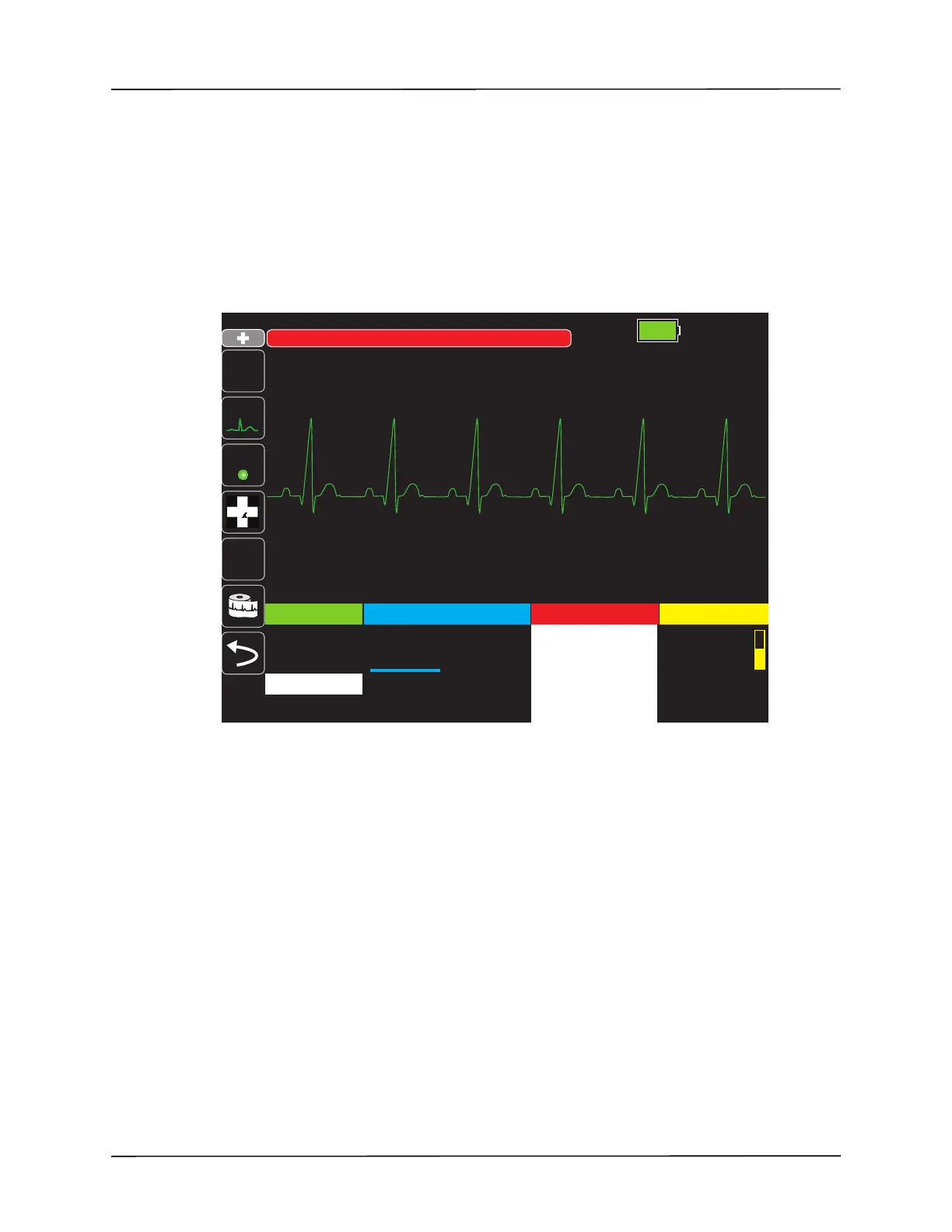

In the following example, the EtCO
2
measurement (22 mmHg) has dropped below the lower
alarm limit (
EtCO2 Low Alarm):
06/06/2011 12:34:56
Adult
00:17:43
I, II,
III...
12
CO
2
R
SYNC
1 cm/mV
II
HR bpm
80
121
79
(96)
NIBP mmHg
38
12
BR
CO2 mmHgCO2 mmHg
BR
33
22
SpO2 %
97
T1 ºF
98.6
EtCO2 Low Alarm

ZOLL X Series Specifications

General

Type	Defibrillator/Monitor
Display	Color LCD
ECG Monitoring	Yes
Pacing	Yes
SpO2 Monitoring	Yes
NIBP Monitoring	Yes
Defibrillator Type	Biphasic
EtCO2 Monitoring	Optional
Data Storage	Yes
Battery	Rechargeable Lithium-ion
CPR Feedback	Real CPR Help
Energy Selection	1-360 J
Pacing Rate	30 – 180 ppm
Pacing Output	0 – 140 mA
Display Size	6.5 inches
Invasive Pressure Monitoring	Optional
Temperature Monitoring	Optional
Wireless Connectivity	Wi-Fi, Bluetooth
