ZOLL X Series User Manual

Chapter 24 Maintenance
24-8 www.zoll.com 9650-001355-01 Rev. M
Cleaning Cables and Accessories
Cables, cuff tubing, paddles and other accessories can be wiped clean with a damp cloth
moistened in a mild detergent solution.
Loading Recorder Paper
The unit displays the message PRINTER OUT OF PAPER when the printer is activated without
recorder paper or if the supply runs out during printing.
Use ZOLL recorder paper (part number 8000-000901).
To load the recorder paper into the printer:
1. Insert your fingers into the indentations on the sides of the printer door, pull the door open,
then remove any paper from the spool.

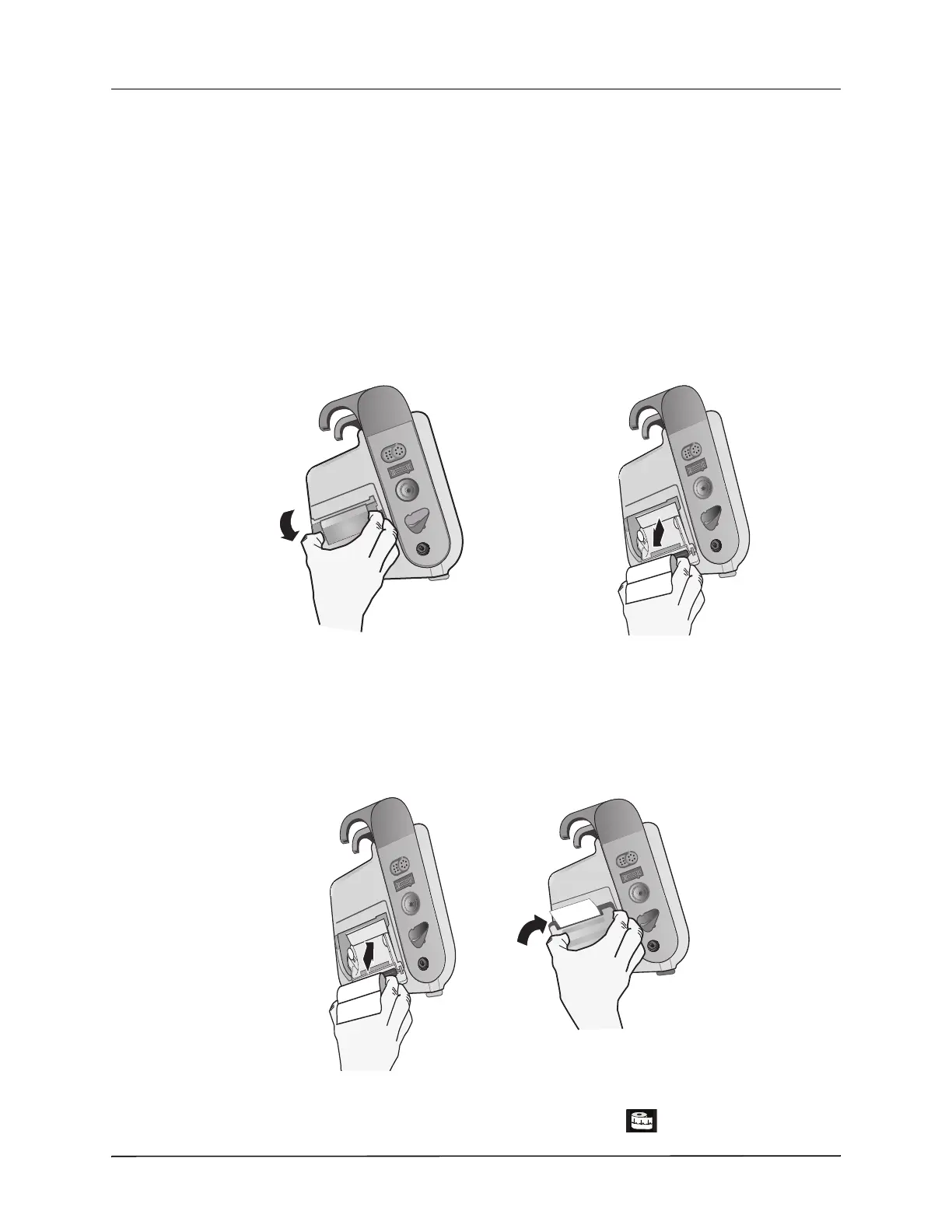

Figure 24-1. Opening the Printer Door and Removing Paper
2. Refer to the illustration inside of the paper compartment for proper paper orientation, and
place a new roll of recorder paper on the empty spool.
3. Pull enough paper off the spool so that paper extends out of the unit when the printer cover
is closed.
4. Close the printer door. Be sure the cover is flush with the side of the unit.
Figure 24-2. Inserting the Paper and Closing Printer Door
5. After the paper is loaded, press the Print quick access key () to resume printing.

ZOLL X Series Specifications

General

Type	Defibrillator/Monitor
Display	Color LCD
ECG Monitoring	Yes
Pacing	Yes
SpO2 Monitoring	Yes
NIBP Monitoring	Yes
Defibrillator Type	Biphasic
EtCO2 Monitoring	Optional
Data Storage	Yes
Battery	Rechargeable Lithium-ion
CPR Feedback	Real CPR Help
Energy Selection	1-360 J
Pacing Rate	30 – 180 ppm
Pacing Output	0 – 140 mA
Display Size	6.5 inches
Invasive Pressure Monitoring	Optional
Temperature Monitoring	Optional
Wireless Connectivity	Wi-Fi, Bluetooth
