CPR Compression Bar Graph (Adult Only)
9650-001355-01 Rev. M X Series Operator’s Guide 19-7
CPR Compression Bar Graph (Adult Only)

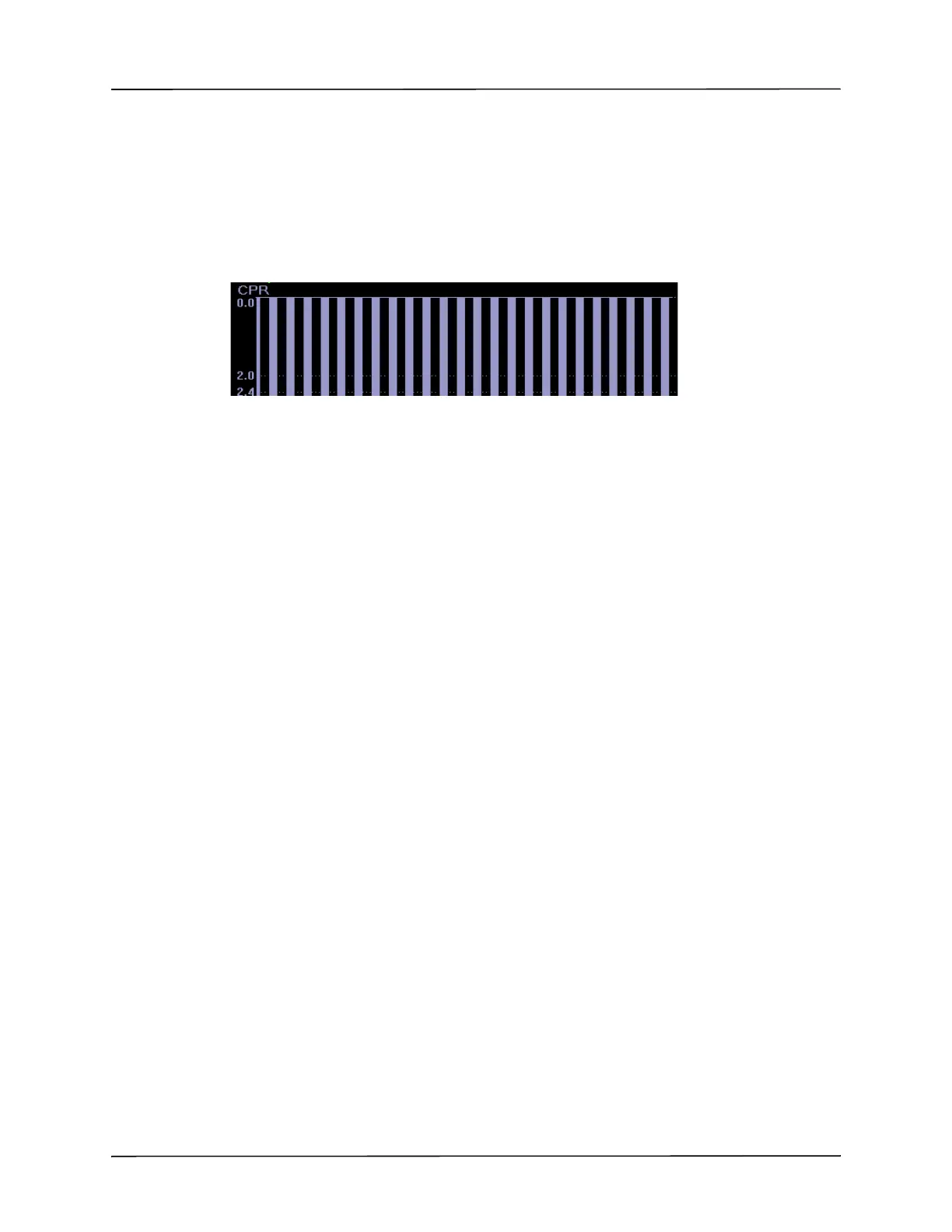

When Adult CPR electrodes are attached, the X Series unit can display a CPR compression bar
graph next to the dashboard that is computed from the CPR sensor signals. This bar graph,
representing depth of compression, is presented on a (AHA/ERC 2005: 0 - 2.1, AHA/ERC
2010: 0 - 2.5) inch displacement scale with reference markers at (AHA/ERC 2005: 1.5 and 2.0,
AHA/ERC 2010: 2.0 and 2.4) inches. The unit displays a minimum of 12 seconds of
compression data at a rate of approximately 133 compressions per minute.
The CPR Compression Bar Graph is only available when using Adult CPR electrodes.

ZOLL X Series Specifications

General

Type	Defibrillator/Monitor
Display	Color LCD
ECG Monitoring	Yes
Pacing	Yes
SpO2 Monitoring	Yes
NIBP Monitoring	Yes
Defibrillator Type	Biphasic
EtCO2 Monitoring	Optional
Data Storage	Yes
Battery	Rechargeable Lithium-ion
CPR Feedback	Real CPR Help
Energy Selection	1-360 J
Pacing Rate	30 – 180 ppm
Pacing Output	0 – 140 mA
Display Size	6.5 inches
Invasive Pressure Monitoring	Optional
Temperature Monitoring	Optional
Wireless Connectivity	Wi-Fi, Bluetooth
