Measuring CO2
9650-001355-01 Rev. M X Series Operator’s Guide 9-7
Measuring CO
2
Once setup is complete, press to begin monitoring CO
2
. The numeric CO
2
display appears
on the screen and displays the message, INITIALIZING. The CO
2
display gives the current
EtCO
2
value, and after a delay of approximately 1 minute, the patient’s Respiration Rate (in
Breaths/Minute), identified as
BR:

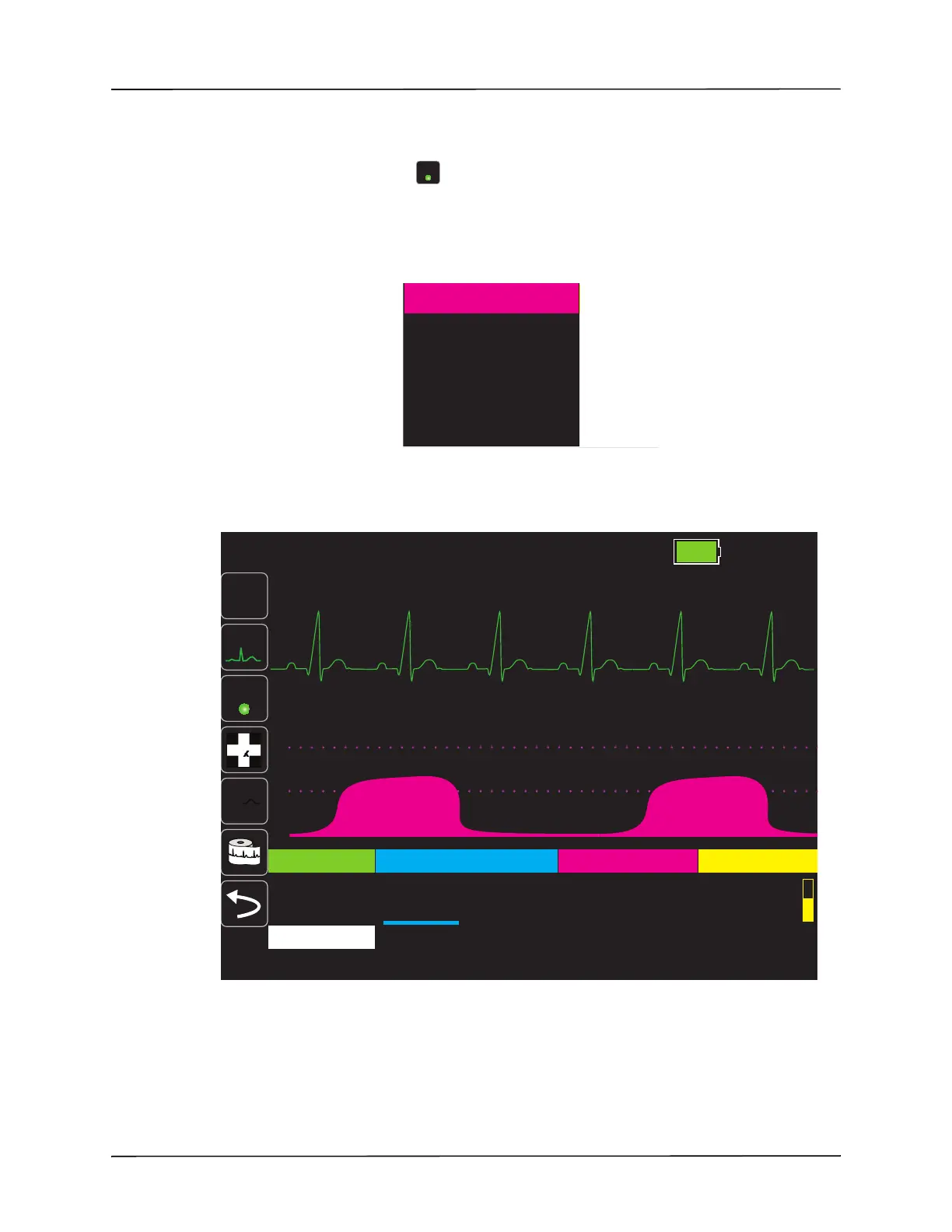

Check that connections have been made correctly by verifying the display a proper capnogram
(the waveform is inserted automatically on the waveform display window).
CO
2
CO
2
EtCO2
mmHg
36
16
BR
06/06/2011 12:34:56
Adult
00:17:43
I, II,
III...
12
CO
2
R
SYNC
60
30
0
CO2
0 to 60 mmHg
1 cm/mV
II
HR bpm
80
121
79
(96)
NIBP mmHg
38
12
BR
CO2 mmHg
SpO2 %
97
T1 ºF
98.6

ZOLL X Series Specifications

General

Type	Defibrillator/Monitor
Display	Color LCD
ECG Monitoring	Yes
Pacing	Yes
SpO2 Monitoring	Yes
NIBP Monitoring	Yes
Defibrillator Type	Biphasic
EtCO2 Monitoring	Optional
Data Storage	Yes
Battery	Rechargeable Lithium-ion
CPR Feedback	Real CPR Help
Energy Selection	1-360 J
Pacing Rate	30 – 180 ppm
Pacing Output	0 – 140 mA
Display Size	6.5 inches
Invasive Pressure Monitoring	Optional
Temperature Monitoring	Optional
Wireless Connectivity	Wi-Fi, Bluetooth
