Defibrillator Controls and Indicators
9650-001355-01 Rev.M X Series Operator’s Guide 2-7
Patient Cables and Connectors
The left and right sides of the unit include sets of connectors for patient cables.
Note: The SPO
2
, NIBP, CO
2
, Temperature, and IBP functions are optional. If your unit does
not include these options, it does not have the applicable connectors.

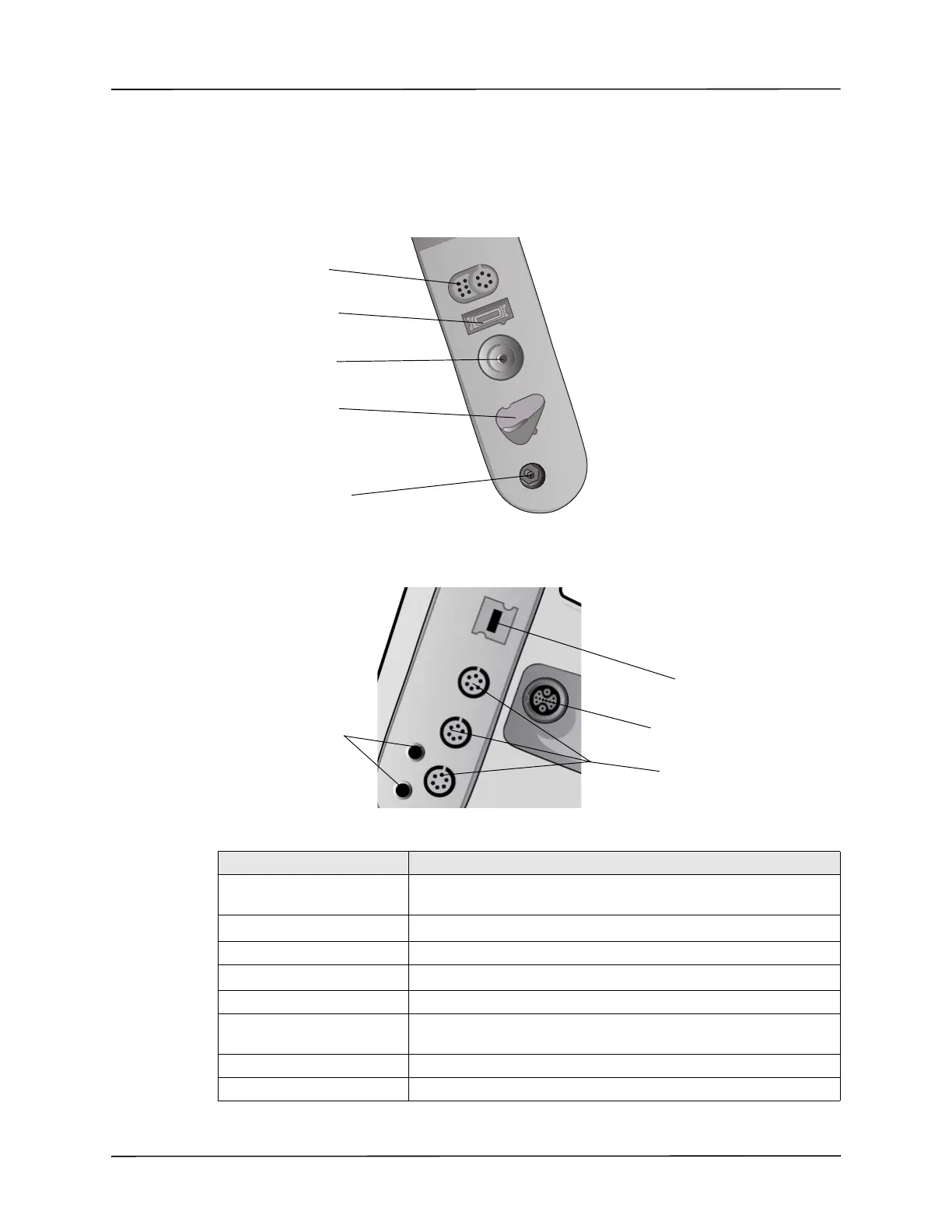

Figure 2-2 Patient Cable Connectors on Left Side of Unit
Figure 2-3 Patient Cable Connectors on Right Side of Unit
Connector Description
ECG For connecting 3- or 5-lead ECG cable (12-lead monitoring is
optional).
SpO
2
For connecting Masimo SpO
2
/CO cable.
NIBP For connecting NIBP hose.
CO
2
For connecting CO
2
sampling line.
Temp For connecting temperature probe(s).
Multifunction Cable (MFC) For connecting paddles or ZOLL hands-free therapy and pacing
electrodes.
USB For connecting the X Series defibrillator to a USB device.
IBP For connecting IBP cable(s).
ECG
SpO
2
NIBP
CO
2
CO
2
Exhaust
USB
IBP
Temp
MFC

ZOLL X Series Specifications

General

Type	Defibrillator/Monitor
Display	Color LCD
ECG Monitoring	Yes
Pacing	Yes
SpO2 Monitoring	Yes
NIBP Monitoring	Yes
Defibrillator Type	Biphasic
EtCO2 Monitoring	Optional
Data Storage	Yes
Battery	Rechargeable Lithium-ion
CPR Feedback	Real CPR Help
Energy Selection	1-360 J
Pacing Rate	30 – 180 ppm
Pacing Output	0 – 140 mA
Display Size	6.5 inches
Invasive Pressure Monitoring	Optional
Temperature Monitoring	Optional
Wireless Connectivity	Wi-Fi, Bluetooth
