Chapter 15 Manual Defibrillation
15-4 www.zoll.com 9650-001355-01 Rev. M
To increase or decrease the selected energy after you have pressed the CHARGE button, use
the defibrillator ENERGY SELECT buttons on either the STERNUM paddle or the
defibrillator front panel.
Caution Changing the selected energy while the unit is charging or charged causes the defibrillator to
disarm itself. Press the CHARGE button again to charge the unit to the newly selected energy
level.
Press the CHARGE button again to confirm the charge.
A charging message displays at the bottom of the screen, and a distinctive charging tone sounds
indicating that the unit is charging.

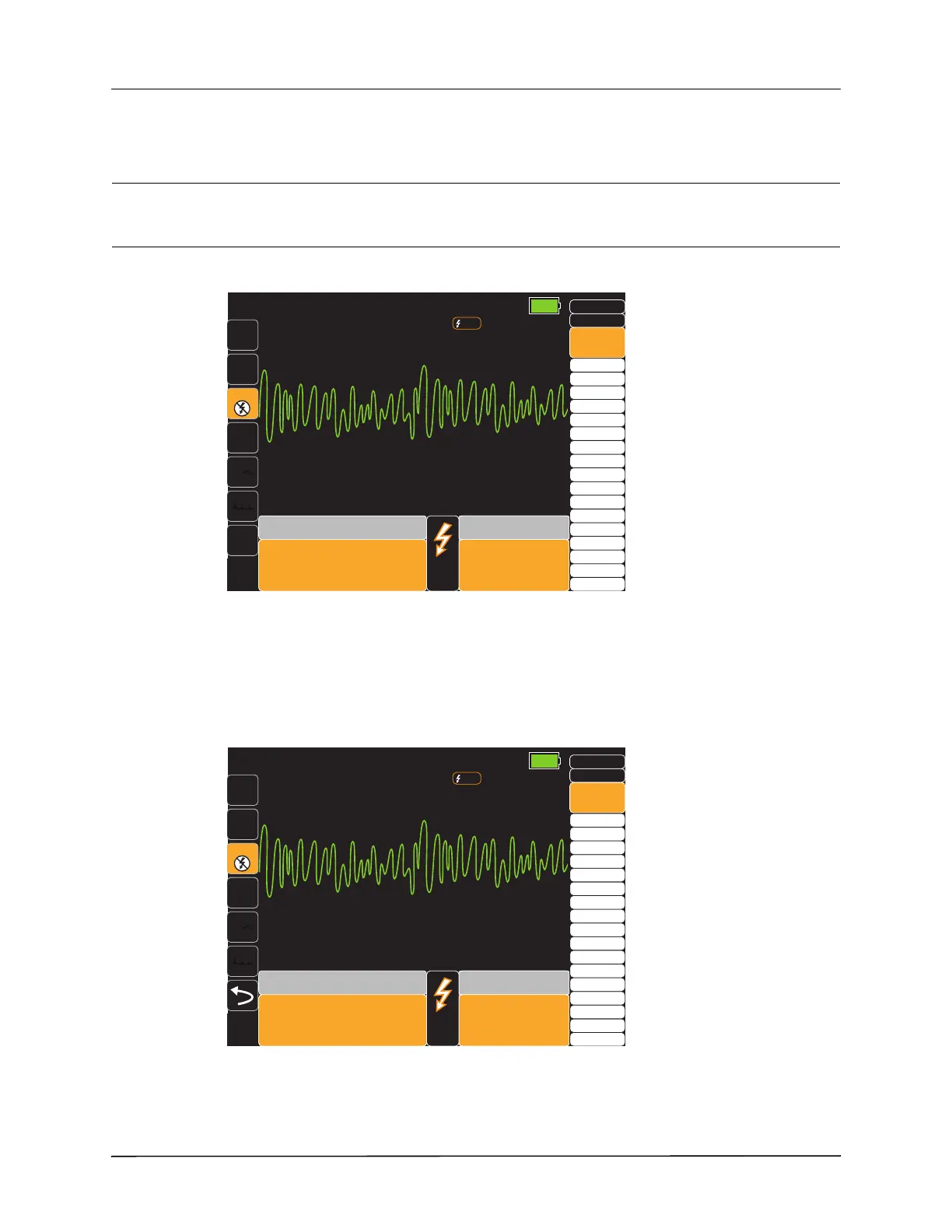

The energy range bar graph on the right side of the display highlights the charge level until it
reaches the selected energy. When the unit is fully charged, the tone changes to a continuous
charge ready tone, the highlighted energy bar graph includes the selected energy, and the charge
indicator on the APEX paddle lights up.
Adult
00:17:43
I, II,
III...
IBP
12
CO
2
1 cm/mV
II
1
Defibrillator
Biphasic
Confirm Energy
Press CHARGE
1
200 J120 J
Selected Energy
2
4
5
6
8
9
10
15
20
30
50
120
70
150
200
3
7
85
100
Disarm
SYNC
Adult
00:17:43
I, II,
III...
IBP
12
CO
2
1 cm/mV
II
1
Defibrillator
Biphasic
CHARGED
Press to Shock
1
200
J
120
J
Selected Energy
2
4
5
6
8
9
10
15
20
30
50
120
70
150
200
3
7
85
100
Disarm
SYNC
