VMG8924-B10D/B30D User’s Guide
135
CHAPTER 9
Routing
9.1 Overview
The VMG usually uses the default gateway to route outbound traffic from computers on the LAN to the
Internet. To have the VMG send data to devices not reachable through the default gateway, use static
routes.

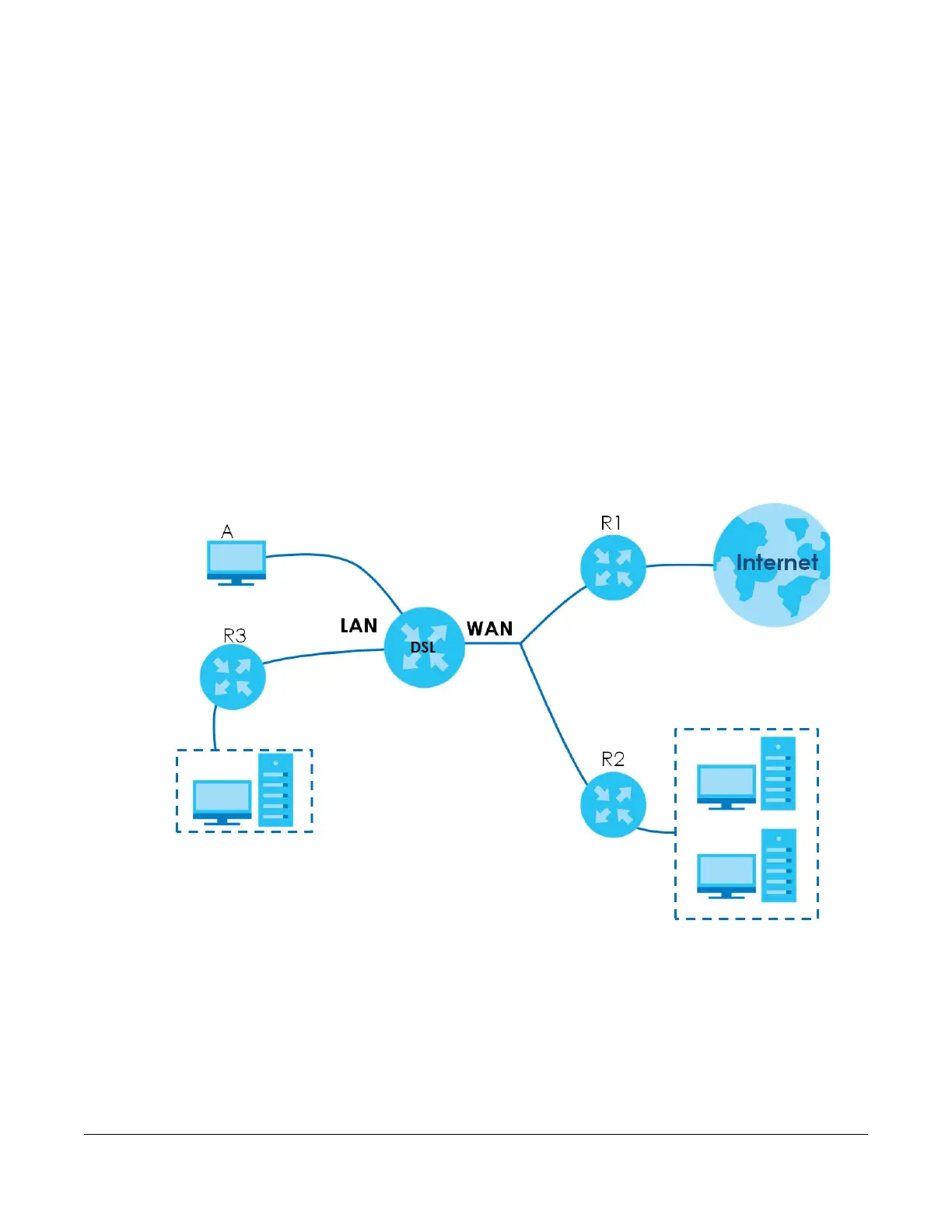

For example, the next figure shows a computer (A) connected to the VMG’s LAN interface. The VMG
routes most traffic from A to the Internet through the VMG’s default gateway (R1). You create one static
route to connect to services offered by your ISP behind router R2. You create another static route to
communicate with a separate network behind a router R3 connected to the LAN.
Figure 56 Example of Routing Topology
9.2 The Routing Screen
Use this screen to view and configure the static route rules on the VMG. Click Network Setting > Routing
> Static Route to open the following screen.
