Chapter 10 Quality of Service (QoS)
VMG8924-B10D/B30D User’s Guide
153
10.6.1 Add/Edit a QoS Shaper
Click Add New Shaper in the Shaper Setup screen or the Edit icon next to a shaper to show the following
screen.

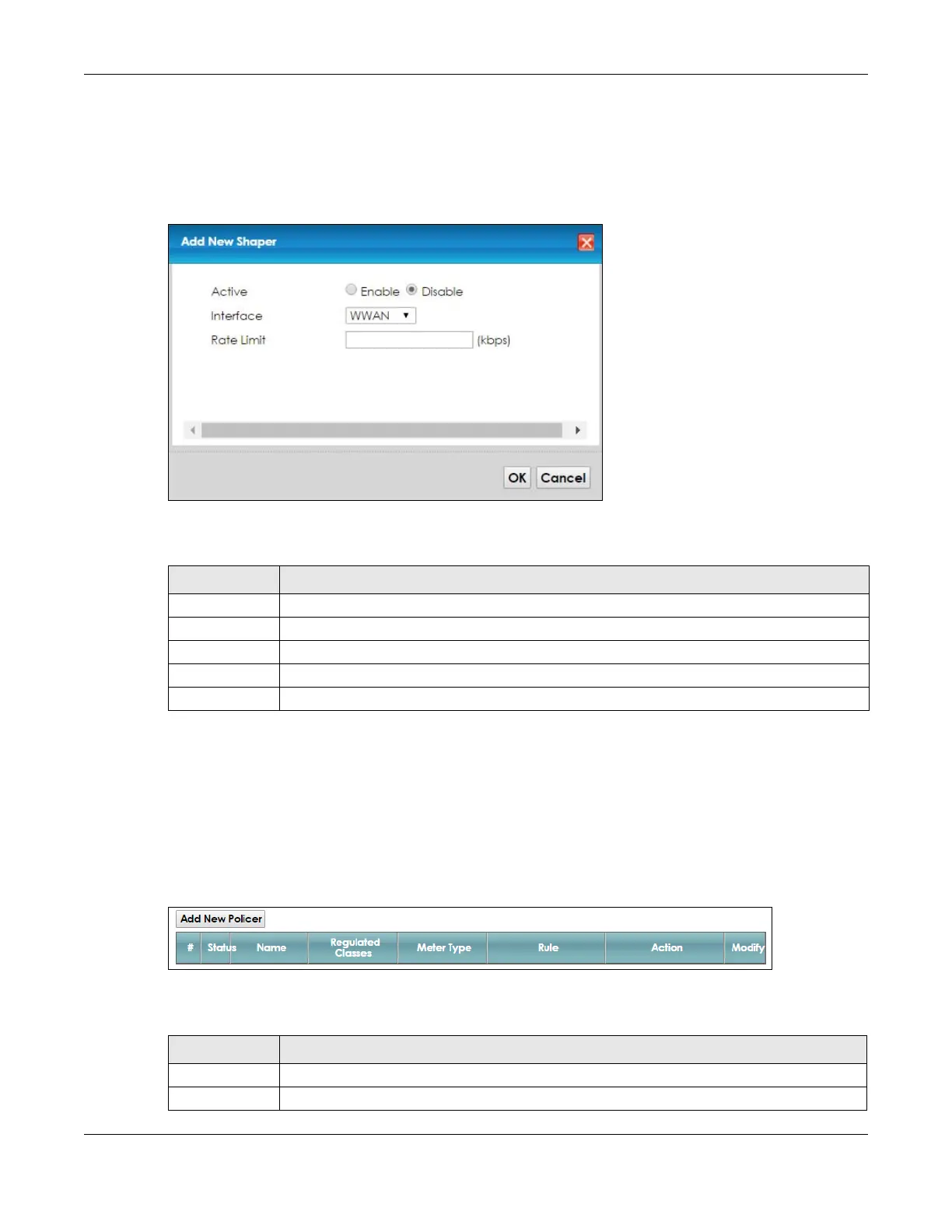

Figure 70 Shaper Setup: Add/Edit
The following table describes the labels in this screen.
10.7 The QoS Policer Setup Screen
Use this screen to view QoS policers that allow you to limit the transmission rate of incoming traffic and
apply actions, such as drop, pass, or modify the DSCP value for matched traffic. Click Network Setting >
QoS > Policer Setup. The screen appears as shown.
Figure 71 Network Setting > QoS > Policer Setup
The following table describes the labels in this screen.
Table 50 Shaper Setup: Add/Edit
LABEL DESCRIPTION
Active Select Enable or Disable to activate or deactivate the shaper.
Interface Select the VMG's interface through which traffic in this shaper applies
Rate Limit Enter the average rate limit of traffic bursts for this shaper.
OK Click OK to save your changes.
Cancel Click Cancel to exit this screen without saving.
Table 51 Network Setting > QoS > Policer Setup
LABEL DESCRIPTION
Add new Policer Click this to create a new entry.
# This is the index number of the entry.
