11.7 The Address Mapping Screen
Ordering your rules is important because the VMG applies the rules in the order that you specify. When a
rule matches the current packet, the VMG takes the corresponding action and the remaining rules are
ignored.
Click Network Setting > NAT > Address Mapping to display the following screen.

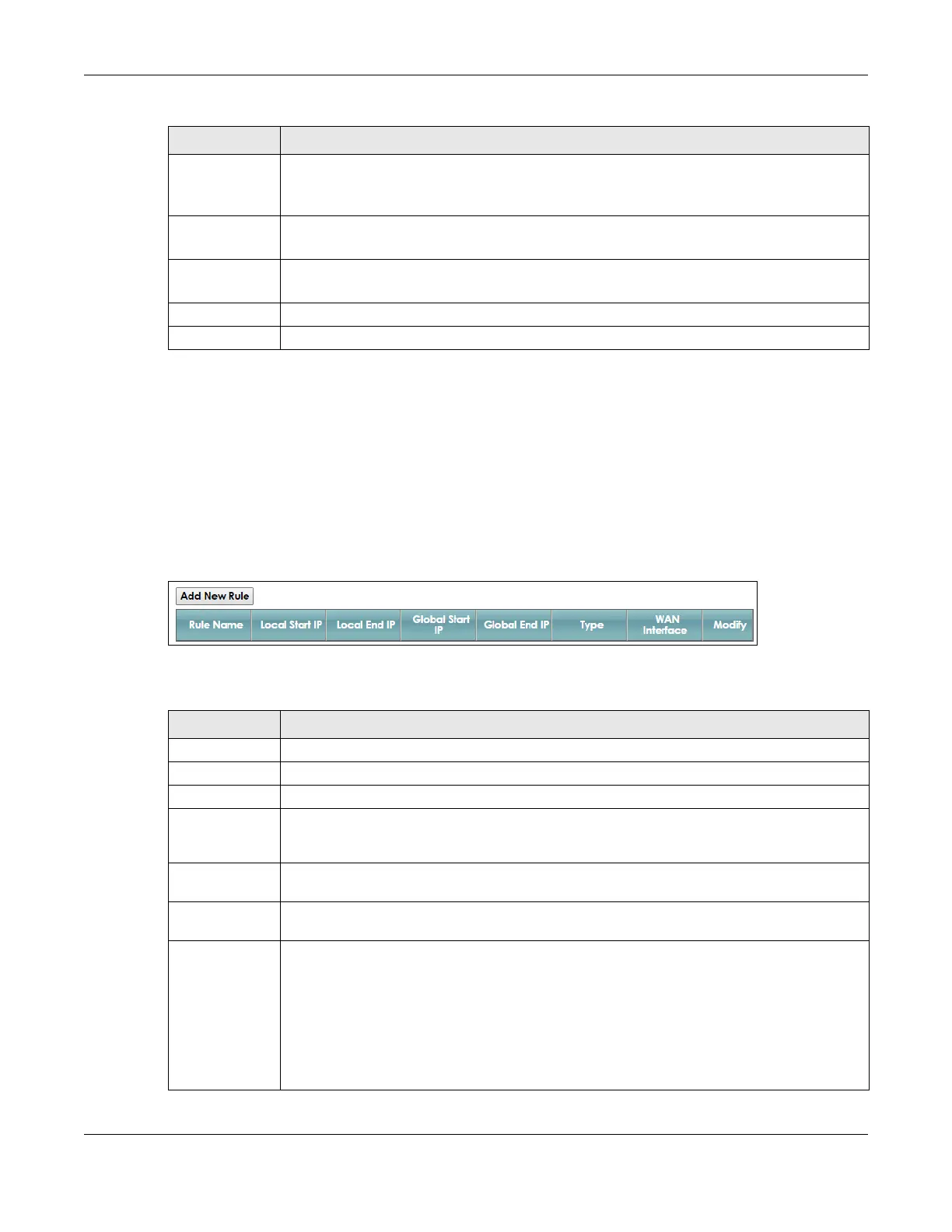

Figure 83 Network Setting > NAT > Address Mapping
The following table describes the fields in this screen.
RTSP ALG
Enable this to have the VMG detect RTSP traffic and help build RTSP sessions through its NAT. The
Real Time Streaming (media control) Protocol (RTSP) is a remote control for multimedia on the
Internet.
PPTP ALG
Enable this to turn on the PPTP ALG on the VMG to detect PPTP traffic and help build PPTP
sessions through the VMG’s NAT.
IPSEC ALG
Enable this to turn on the IPsec ALG on the VMG to detect IPsec traffic and help build IPsec
sessions through the VMG’s NAT.
Apply Click Apply to save your changes.
Cancel Click Cancel to restore your previously saved settings.
Table 62 Network Setting > NAT > ALG (continued)
LABEL DESCRIPTION
Table 63 Network Setting > NAT > Address Mapping
LABEL DESCRIPTION
Add new rule Click this to create a new rule.
Rule Name This is the name of the rule.
Local Start IP This is the starting Inside Local IP Address (ILA).
Local End IP This is the ending Inside Local IP Address (ILA). If the rule is for all local IP addresses, then this field
displays 0.0.0.0 as the Local Start IP address and 255.255.255.255 as the Local End IP address. This
field is blank for One-to-One mapping types.
Global Start IP This is the starting Inside Global IP Address (IGA). Enter 0.0.0.0 here if you have a dynamic IP
address from your ISP. You can only do this for the Many-to-One mapping type.
Global End IP This is the ending Inside Global IP Address (IGA). This field is blank for One-to-One and Many-to-
One mapping types.
Type This is the address mapping type.
One-to-One: This mode maps one local IP address to one global IP address. Note that port
numbers do not change for the One-to-one NAT mapping type.
Many-to-One: This mode maps multiple local IP addresses to one global IP address. This is
equivalent to SUA (i.e., PAT, port address translation), the VMG's Single User Account feature that
previous routers supported only.
Many-to-Many: This mode maps multiple local IP addresses to shared global IP addresses.
