VMG8924-B10D/B30D User’s Guide
183
CHAPTER 14
Vlan Group
14.1 Overview
Virtual LAN IDs are used to identify different traffic types over the same physical link.
In the following example, the VMG (DSL) can use VLAN IDs (VID) 100 and 200 to identify Video-on-
Demand and IPTV traffic respectively coming from the two VoD and IPTV multicast servers. The VMG
(DSL) can also tag outgoing requests to these servers with these VLAN IDs.

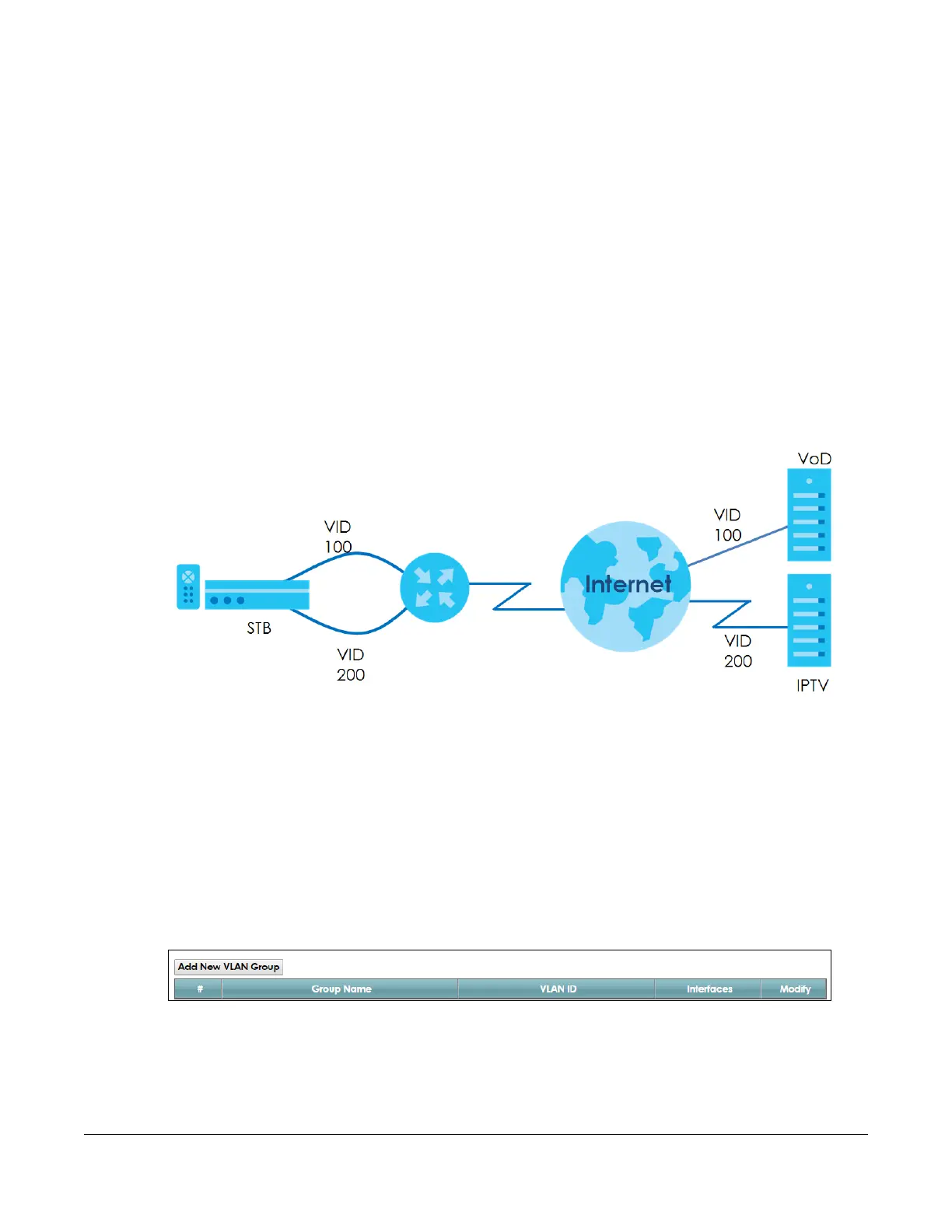

Figure 93 VLAN Group Example
14.1.1 What You Can Do in this Chapter
Use these screens to group separate VLAN groups together to be treated as one VLAN group.
14.2 The Vlan Group Screen
Click Network Setting > Vlan Group to open the following screen.
Figure 94 Network Setting > Vlan Group
DSL
