11.3 The Applications Screen
This screen provides a summary of all NAT applications and their configuration. In addition, this screen
allows you to create new applications and/or remove existing ones.
To access this screen, click Network Setting > NAT > Applications. The following screen appears.

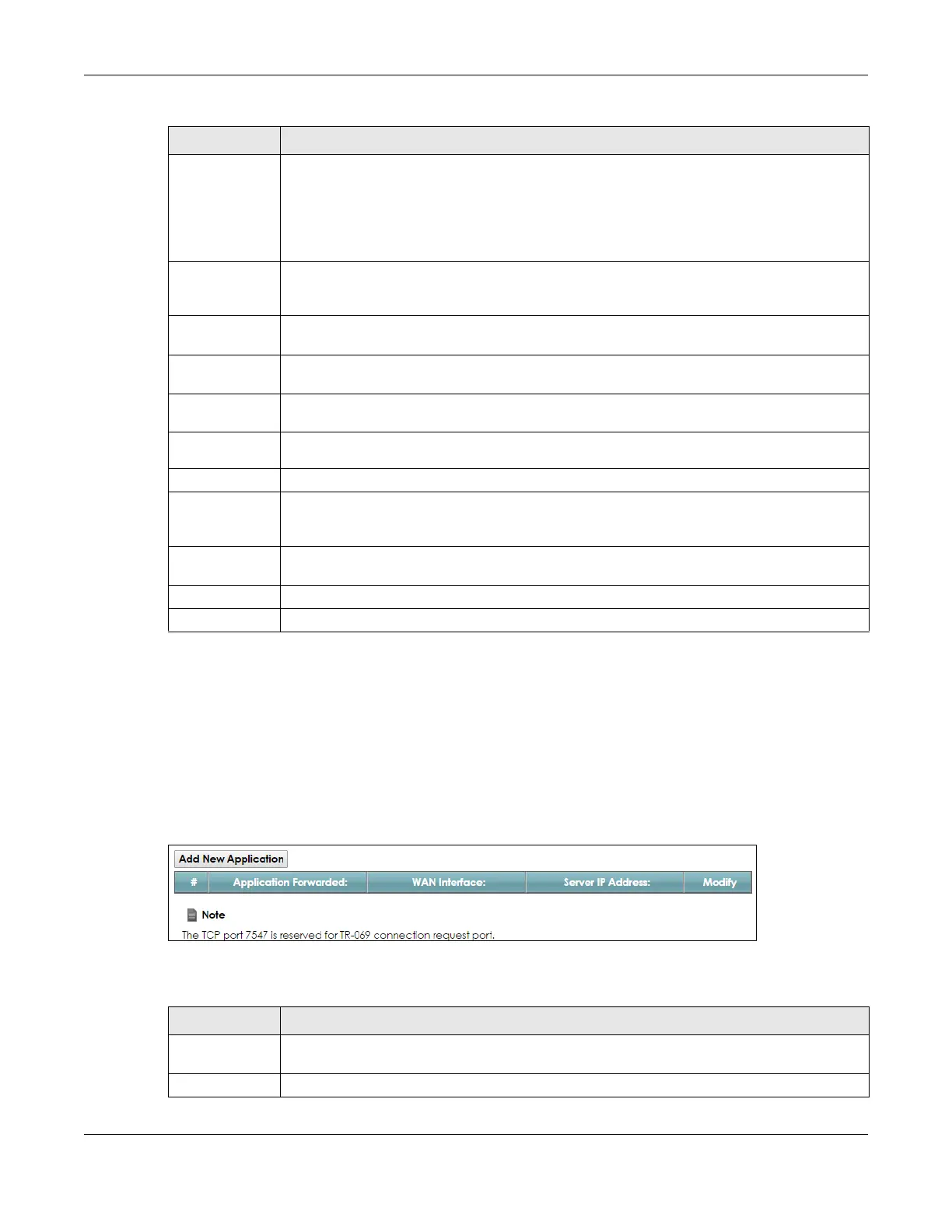

Figure 76 Network Setting > NAT > Applications
The following table describes the labels in this screen.
End Port Enter the last port of the original destination port range.
To forward only one port, enter the port number in the Start Port field above and then enter it
again in this field.
To forward a series of ports, enter the last port number in a series that begins with the port
number in the Start Port field above.
Translation Start
Port
This shows the port number to which you want the VMG to translate the incoming port. For a
range of ports, enter the first number of the range to which you want the incoming ports
translated.
Translation End
Port
This shows the last port of the translated port range.
Server IP
Address
Enter the inside IP address of the virtual server here.
Configure
Originating IP
Select Enable to enter the source IP address of WAN interface.
Originating
IP
Enter the source IP address of WAN interface.
Protocol Select the protocol supported by this virtual server. Choices are TCP, UDP, or TCP/UDP.
Wake up this
target by Wake
on LAN(WOL)
Select this to turn on the virtual server remotely.
MAC address of
WOL device
Enter the MAC address of the device to turn it on.
OK Click OK to save your changes.
Cancel Click Cancel to exit this screen without saving.
Table 56 Port Forwarding: Add/Edit (continued)
LABEL DESCRIPTION
Table 57 Network Setting > NAT > Applications
LABEL DESCRIPTION
Add New
Application
Click this to add a new NAT application rule.
# This is the index number of the entry.
