Chapter 10 Quality of Service (QoS)
VMG8924-B10D/B30D User’s Guide
152
10.6 The QoS Shaper Setup Screen
This screen shows that you can use the token bucket algorithm to allow a certain amount of large bursts
while keeping a limit for processing outgoing traffic at the average rate. Click Network Setting > QoS >
Shaper Setup. The screen appears as shown.

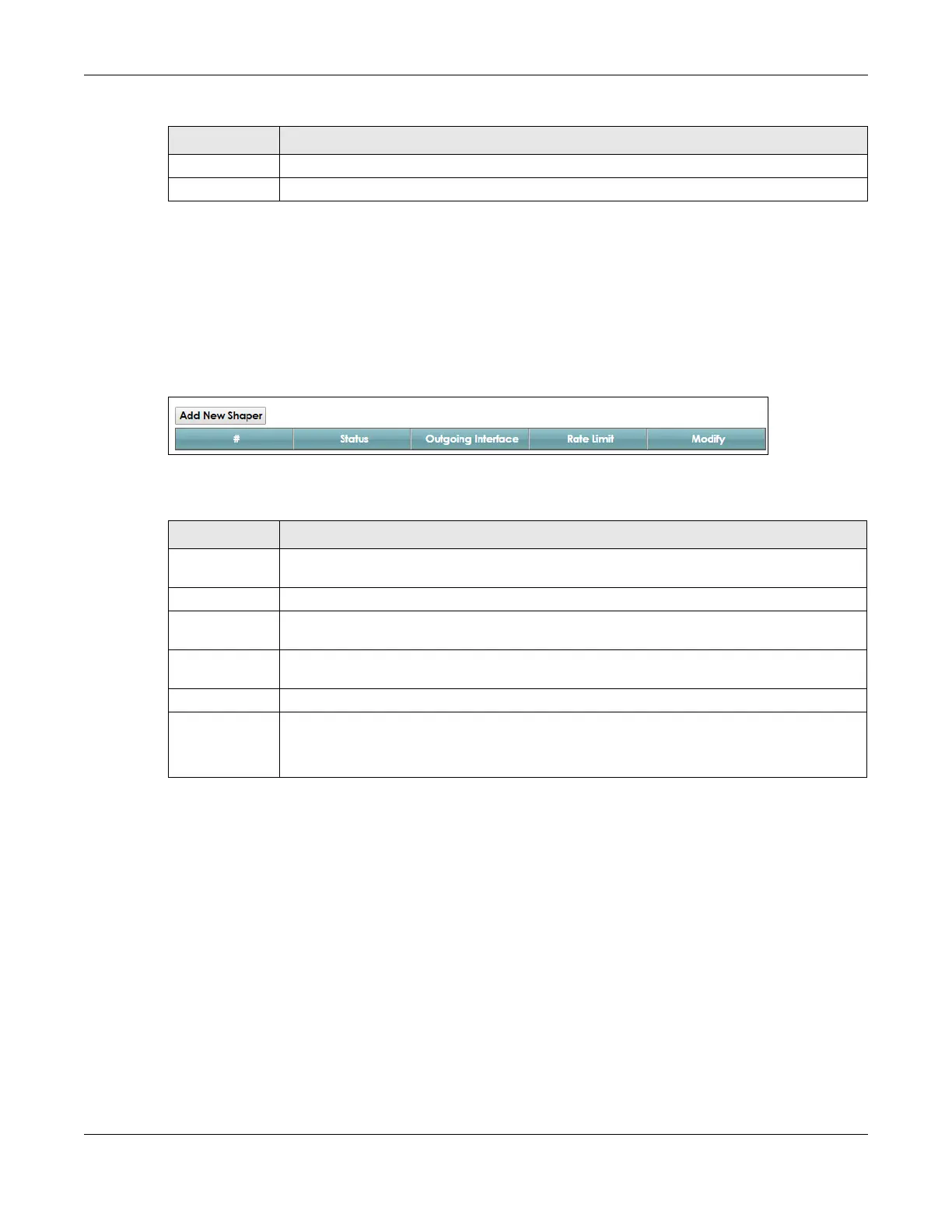

Figure 69 Network Setting > QoS > Shaper Setup
The following table describes the labels in this screen.
OK Click OK to save your changes.
Cancel Click Cancel to exit this screen without saving.
Table 48 Classification Setup: Add/Edit (continued)
LABEL DESCRIPTION
Table 49 Network Setting > QoS > Shaper Setup
LABEL DESCRIPTION
Add New
Shaper
Click this to create a new entry.
# This is the index number of the entry.
Status This field displays whether the shaper is active or not. A yellow bulb signifies that this policer is
active. A gray bulb signifies that this shaper is not active.
Outgoing
Interface
This shows the name of the VMG's interface through which traffic in this shaper applies.
Rate Limit (kbps) This shows the average rate limit of traffic bursts for this shaper.
Modify Click the Edit icon to edit the shaper.
Click the Delete icon to delete an existing shaper. Note that subsequent rules move up by one
when you take this action.
