VMG8924-B10D/B30D User’s Guide
248
CHAPTER 24
Traffic Status
24.1 Overview
Use the Traffic Status screens to look at network traffic status and statistics of the WAN, LAN interfaces
and NAT.
24.1.1 What You Can Do in this Chapter
• Use the WAN screen to view the WAN traffic statistics (Section 24.2 on page 248).
• Use the LAN screen to view the LAN traffic statistics (Section 24.3 on page 249).
• Use the NAT screen to view the NAT status of the VMG’s client(s) (Section 24.4 on page 250)
24.2 The WAN Status Screen
Click System Monitor > Traffic Status to open the WAN screen. The figure in this screen shows the number
of bytes received and sent on the VMG.

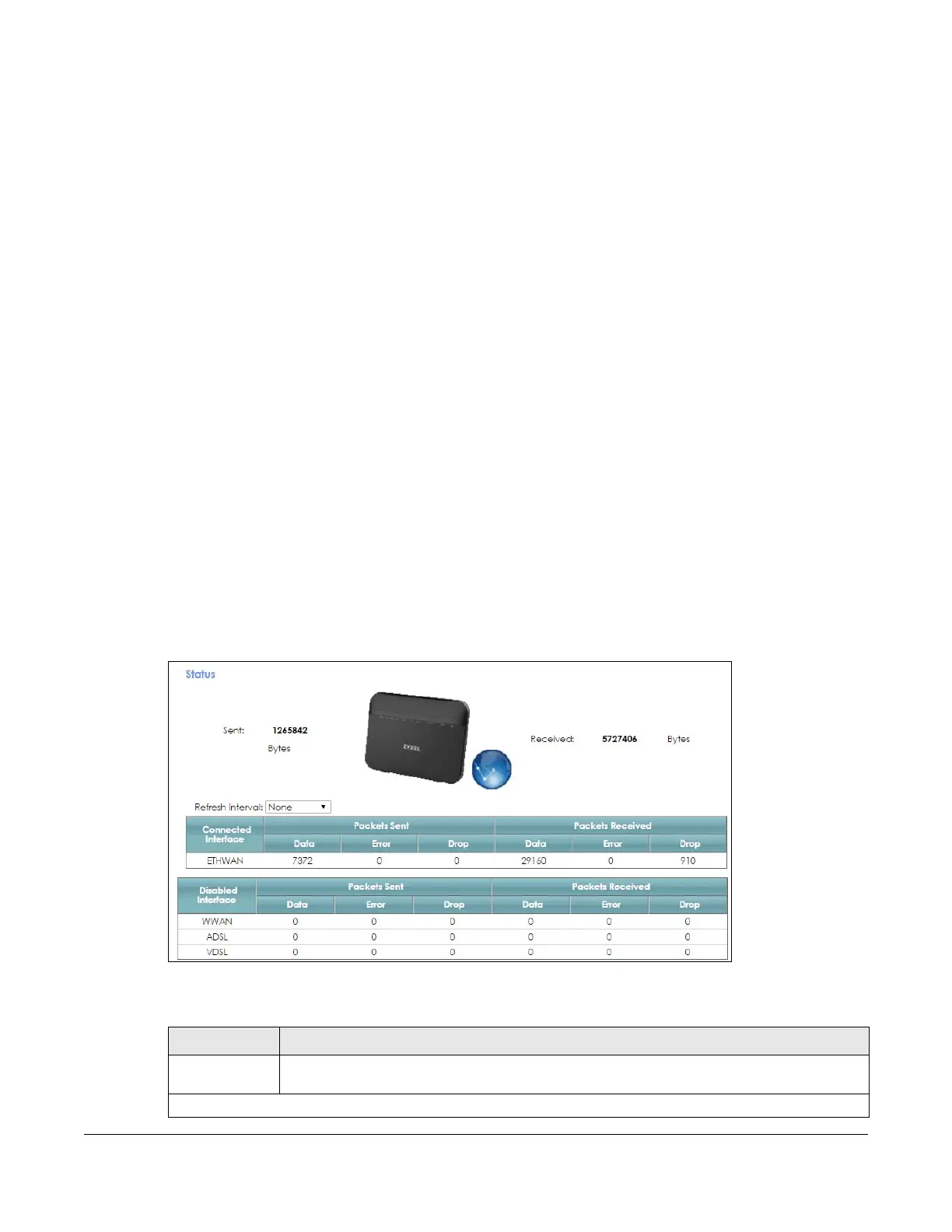

Figure 143 System Monitor > Traffic Status > WAN
The following table describes the fields in this screen.
Table 118 System Monitor > Traffic Status > WAN
LABEL DESCRIPTION
Connected
Interface
This shows the name of the WAN interface that is currently connected.
Packets Sent
