9.4.1 Add/Edit Policy Route
Click Add New Policy Route in the Policy Route screen or click the Edit icon next to a policy. Use this
screen to configure the required information for a policy route.

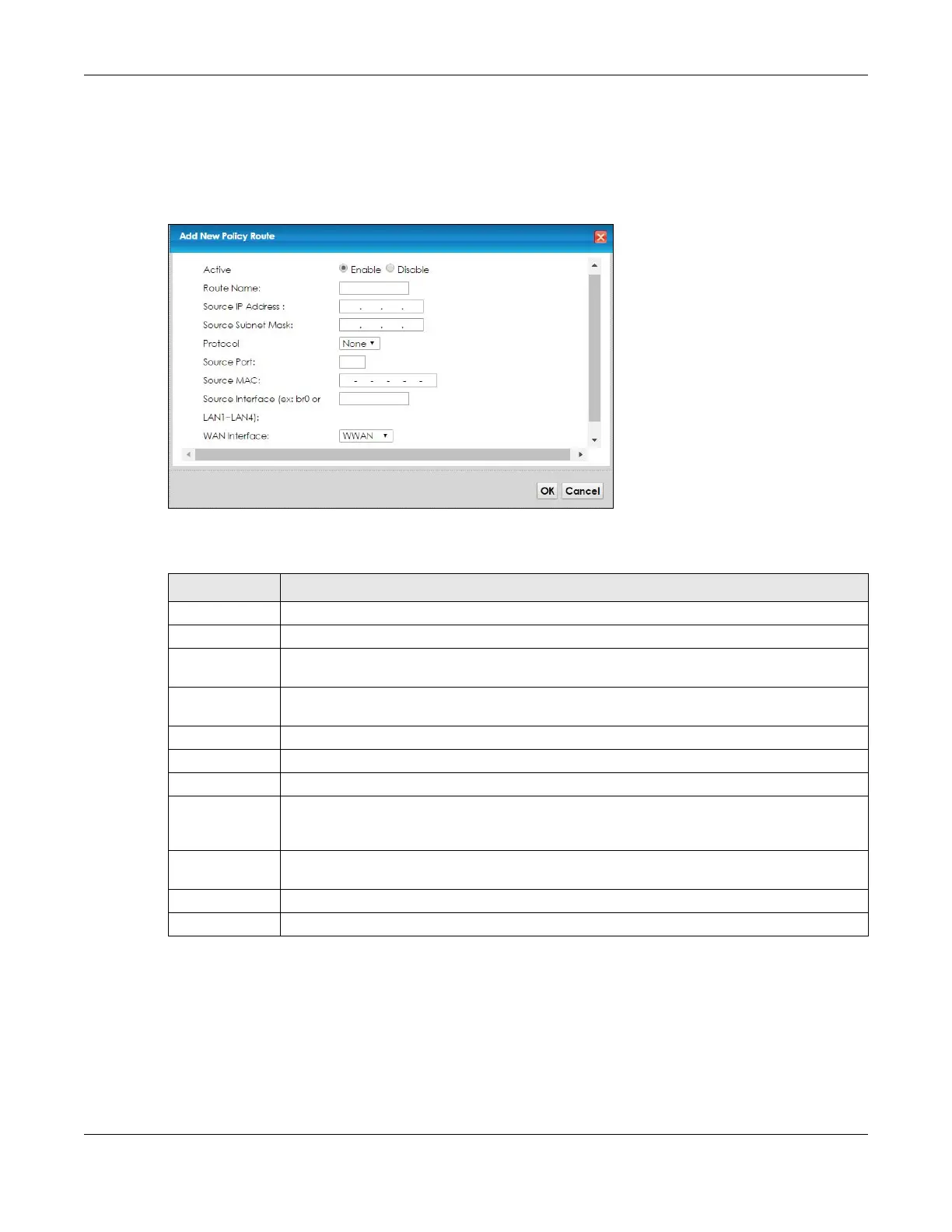

Figure 62 Policy Route: Add/Edit
The following table describes the labels in this screen.
9.5 RIP
Routing Information Protocol (RIP, RFC 1058 and RFC 1389) allows a device to exchange routing
information with other routers.
Table 42 Policy Route: Add/Edit
LABEL DESCRIPTION
Active Select Enable or Disable to activate or deactivate the policy route.
Route Name Enter a descriptive name of up to 8 printable English keyboard characters, not including spaces.
Source IP
Address
Enter the source IP address.
Source Subnet
Mask
Enter the source subnet mask address.
Protocol Select the transport layer protocol (TCP or UDP).
Source Port Enter the source port number.
Source MAC Enter the source MAC address.
Source Interface
(ex: br0 or
LAN1~LAN4)
Type the name of the interface from which the matched traffic is sent.
WAN Interface Select a WAN interface through which the traffic is sent. You must have the WAN interface(s)
already configured in the Broadband screens.
Apply Click Apply to save your changes.
Cancel Click Cancel to exit this screen without saving.
