The Policy Route screen let you view and configure routing policies on the VMG. Click Network Setting >
Routing > Policy Route to open the following screen.

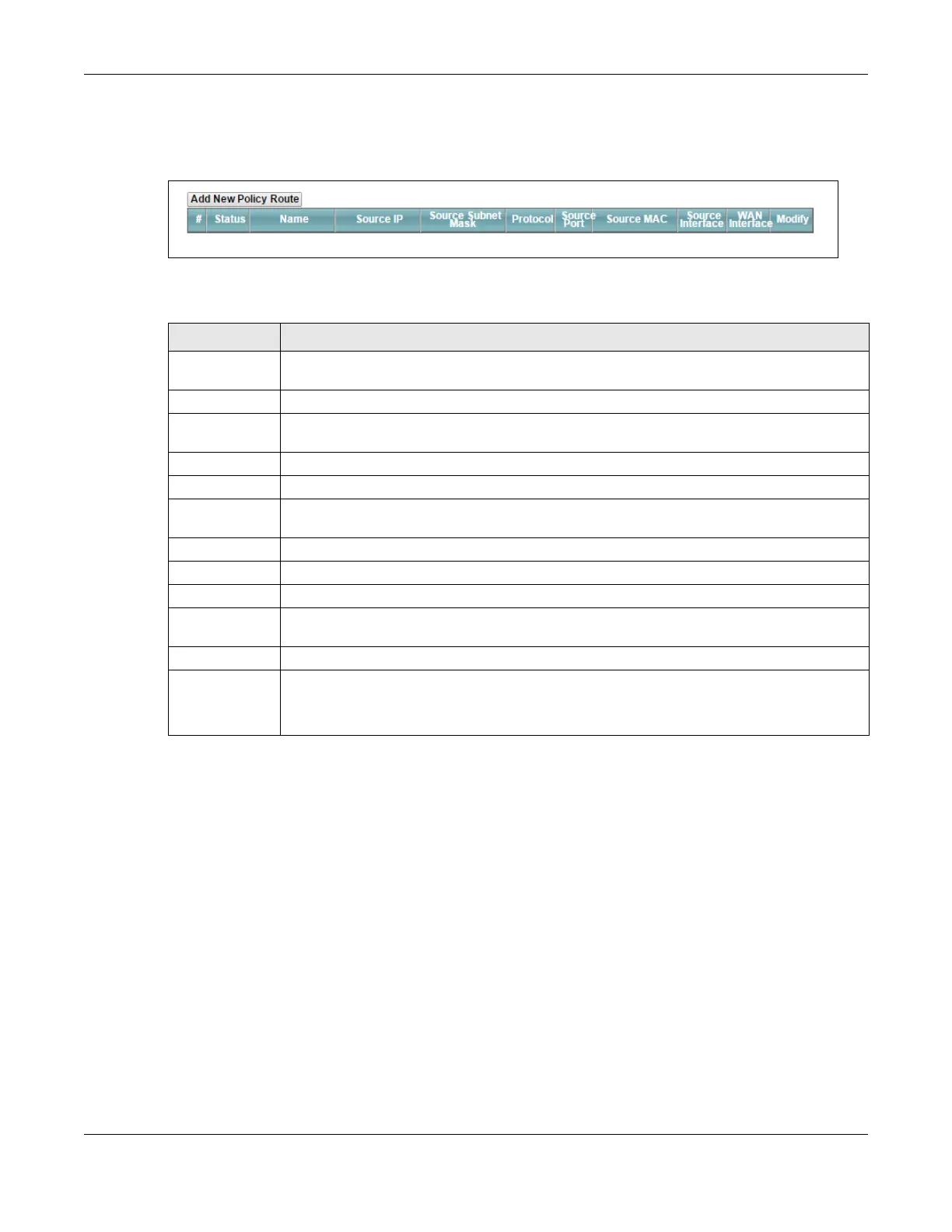

Figure 61 Network Setting > Routing > Policy Route
The following table describes the labels in this screen.
Table 41 Network Setting > Routing >Policy Route
LABEL DESCRIPTION
Add New Policy
Route
Click this to create a new policy forwarding rule.
# This is the index number of the entry.
Status This field displays whether the DNS route is active or not. A yellow bulb signifies that this DNS route
is active. A gray bulb signifies that this DNS route is not active.
Name This is the name of the rule.
Source IP This is the source IP address.
Source Subnet
Mask
his is the source subnet mask address.
Protocol This is the transport layer protocol.
Source Port This is the source port number.
Source MAC This is the source MAC address.
Source
Interface
This is the interface from which the matched traffic is sent.
WAN Interface This is the WAN interface through which the traffic is routed.
Modify Click the Edit icon to edit this policy.
Click the Delete icon to remove a policy from the VMG. A window displays asking you to confirm
that you want to delete the policy.
