11.7.1 Add/Edit Address Mapping Rule
To add or edit an address mapping rule, click Add new rule or the rule’s edit icon in the Address
Mapping screen to display the screen shown next.

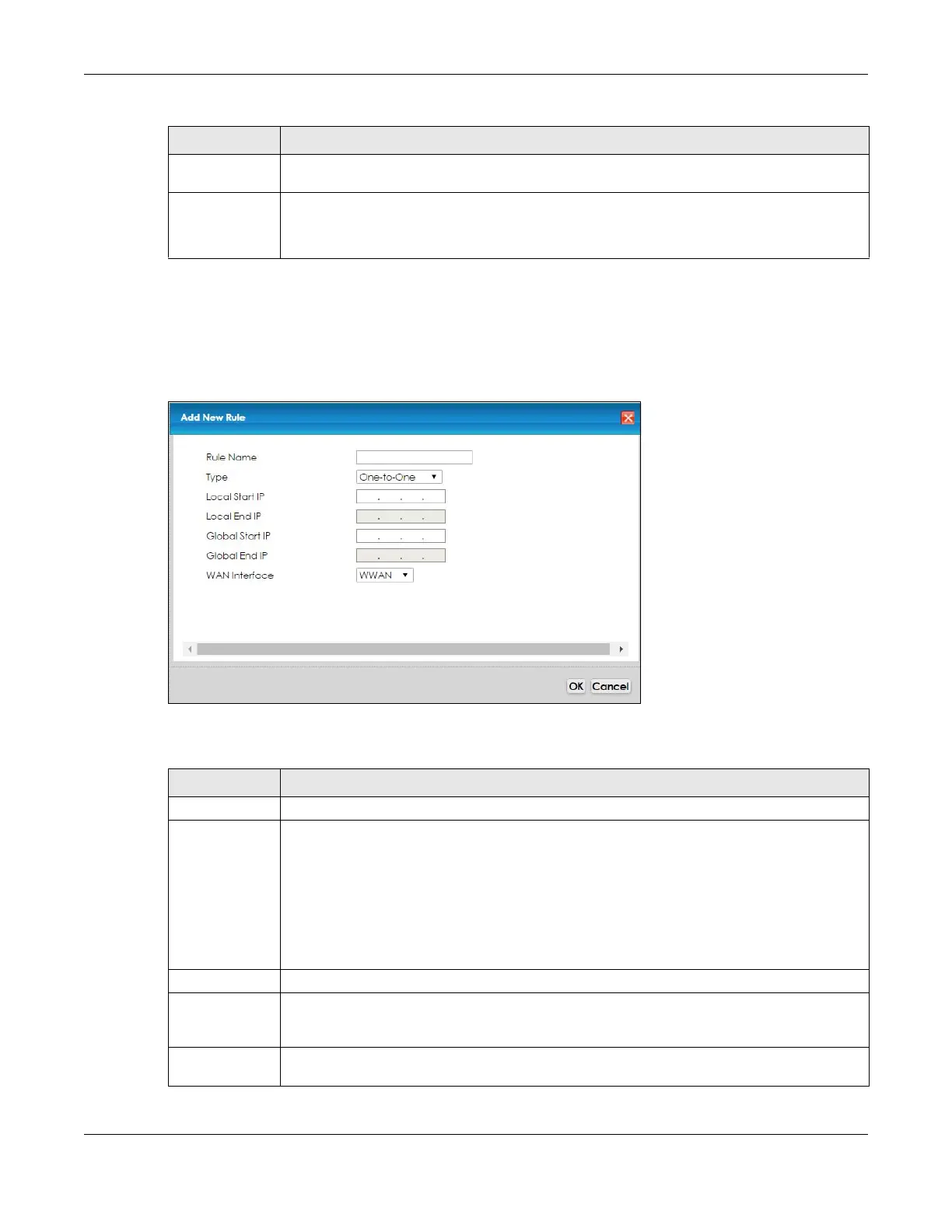

Figure 84 Address Mapping: Add/Edit
The following table describes the fields in this screen.
Wan Interface
Name
This is the WAN interface to which the address mapping rule applies.
Modify Click the Edit icon to go to the screen where you can edit the address mapping rule.
Click the Delete icon to delete an existing address mapping rule. Note that subsequent address
mapping rules move up by one when you take this action.
Table 63 Network Setting > NAT > Address Mapping (continued)
LABEL DESCRIPTION
Table 64 Address Mapping: Add/Edit
LABEL DESCRIPTION
Rule Name Type up to 20 alphanumberic characters for the name of this rule.
Type Choose the IP/port mapping type from one of the following.
One-to-One: This mode maps one local IP address to one global IP address. Note that port
numbers do not change for the One-to-one NAT mapping type.
Many-to-One: This mode maps multiple local IP addresses to one global IP address. This is
equivalent to SUA (i.e., PAT, port address translation), the VMG's Single User Account feature that
previous routers supported only.
Many-to-Many: This mode maps multiple local IP addresses to shared global IP addresses.
Local Start IP
Enter the starting Inside Local IP Address (ILA).
Local End IP Enter the ending Inside Local IP Address (ILA). If the rule is for all local IP addresses, then this field
displays 0.0.0.0 as the Local Start IP address and 255.255.255.255 as the Local End IP address. This
field is blank for One-to-One mapping types.
Global Start IP Enter the starting Inside Global IP Address (IGA). Enter 0.0.0.0 here if you have a dynamic IP
address from your ISP. You can only do this for the Many-to-One mapping type.
