Chapter 6 Broadband
VMG8924-B10D/B30D User’s Guide
72
6.1.3 Before You Begin
You need to know your Internet access settings such as encapsulation and WAN IP address. Get this
information from your ISP.
6.2 The Broadband Screen
Use this screen to change your VMG’s Internet access settings. Click Network Setting > Broadband from
the menu. The summary table shows you the configured WAN services (connections) on the VMG.

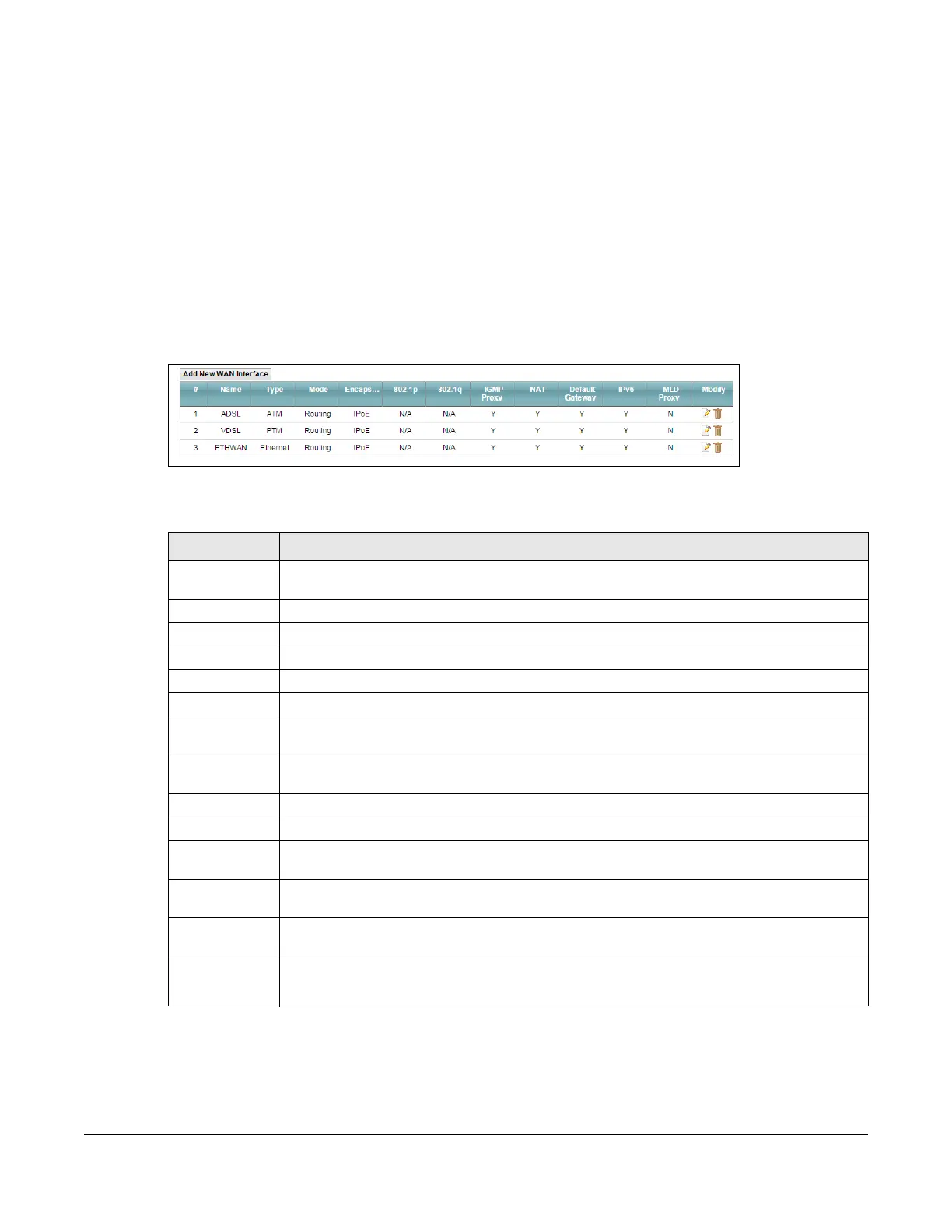

Figure 21 Network Setting > Broadband
The following table describes the labels in this screen.
Table 9 Network Setting > Broadband
LABEL DESCRIPTION
Add New WAN
Interface
Click this button to create a new connection.
# This is the index number of the entry.
Name This is the service name of the connection.
Type This shows whether it is an ATM, Ethernet or a PTM connection.
Mode This shows whether the connection is in routing or bridge mode.
Encapsulation This is the method of encapsulation used by this connection.
802.1p This indicates the 802.1p priority level assigned to traffic sent through this connection. This
displays N/A when there is no priority level assigned.
802.1q This indicates the VLAN ID number assigned to traffic sent through this connection. This displays
N/A when there is no VLAN ID number assigned.
IGMP Proxy This shows whether the VMG act as an IGMP proxy on this connection.
NAT This shows whether NAT is activated or not for this connection.
Default
Gateway
This shows whether the VMG use the WAN interface of this connection as the system default
gateway.
IPv6 This shows whether IPv6 is activated or not for this connection. IPv6 is not available when the
connection uses the bridging service.
MLD Proxy This shows whether Multicast Listener Discovery (MLD) is activated or not for this connection. MLD
is not available when the connection uses the bridging service.
Modify Click the Edit icon to configure the WAN connection.
Click the Delete icon to remove the WAN connection.
