Chapter 7 Wireless
VMG8924-B10D/B30D User’s Guide
99
The following table introduces the supported wireless networks..

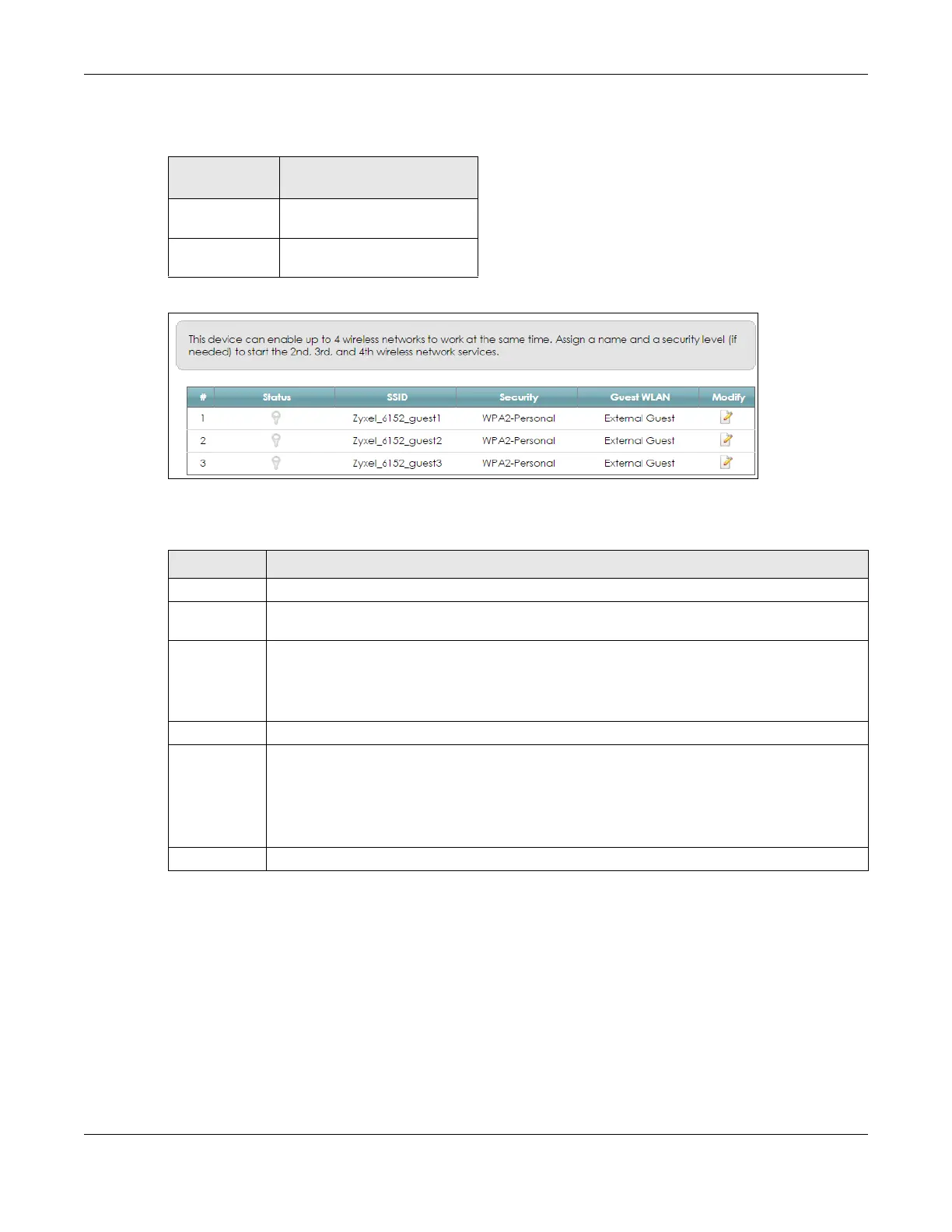

Figure 33 Network Setting > Wireless > Guest/More AP
The following table describes the labels in this screen.
7.3.1 Edit Guest/More AP
Use this screen to edit an SSID profile. Click the Edit icon next to an SSID in the Guest/More AP screen. The
following screen displays.
Table 20 Supported Wireless Networks
WIRELESS
NETWORKS
WHERE TO CONFIGURE
Main/1 Network Setting > Wireless >
General screen
Guest/3 Network Setting > Wireless >
Guest/More AP screen
Table 21 Network Setting > Wireless > Guest/More AP
LABEL DESCRIPTION
# This is the index number of the entry.
Status This field indicates whether this SSID is active. A yellow bulb signifies that this SSID is active. A gray
bulb signifies that this SSID is not active.
SSID An SSID profile is the set of parameters relating to one of the VMG’s BSSs. The SSID (Service Set
IDentifier) identifies the Service Set with which a wireless device is associated.
This field displays the name of the wireless profile on the network. When a wireless client scans for
an AP to associate with, this is the name that is broadcast and seen in the wireless client utility.
Security This field indicates the security mode of the SSID profile.
Guest WLAN This displays if the guest WLAN function has been enabled for this WLAN.
If Home Guest displays, clients can connect to each other directly.
If External Guest displays, clients are blocked from connecting to each other directly.
N/A displays if guest WLAN is disabled.
Modify Click the Edit icon to configure the SSID profile.
