Note: Your VMG has a WPS button located on its front panel as well as a WPS button in its
configuration utility. Both buttons have exactly the same function: you can use one or
the other.
Note: It doesn’t matter which button is pressed first. You must press the second button within
two minutes of pressing the first one.
The VMG sends the proper configuration settings to the wireless client. This may take up to two minutes.
The wireless client is then able to communicate with the VMG securely.

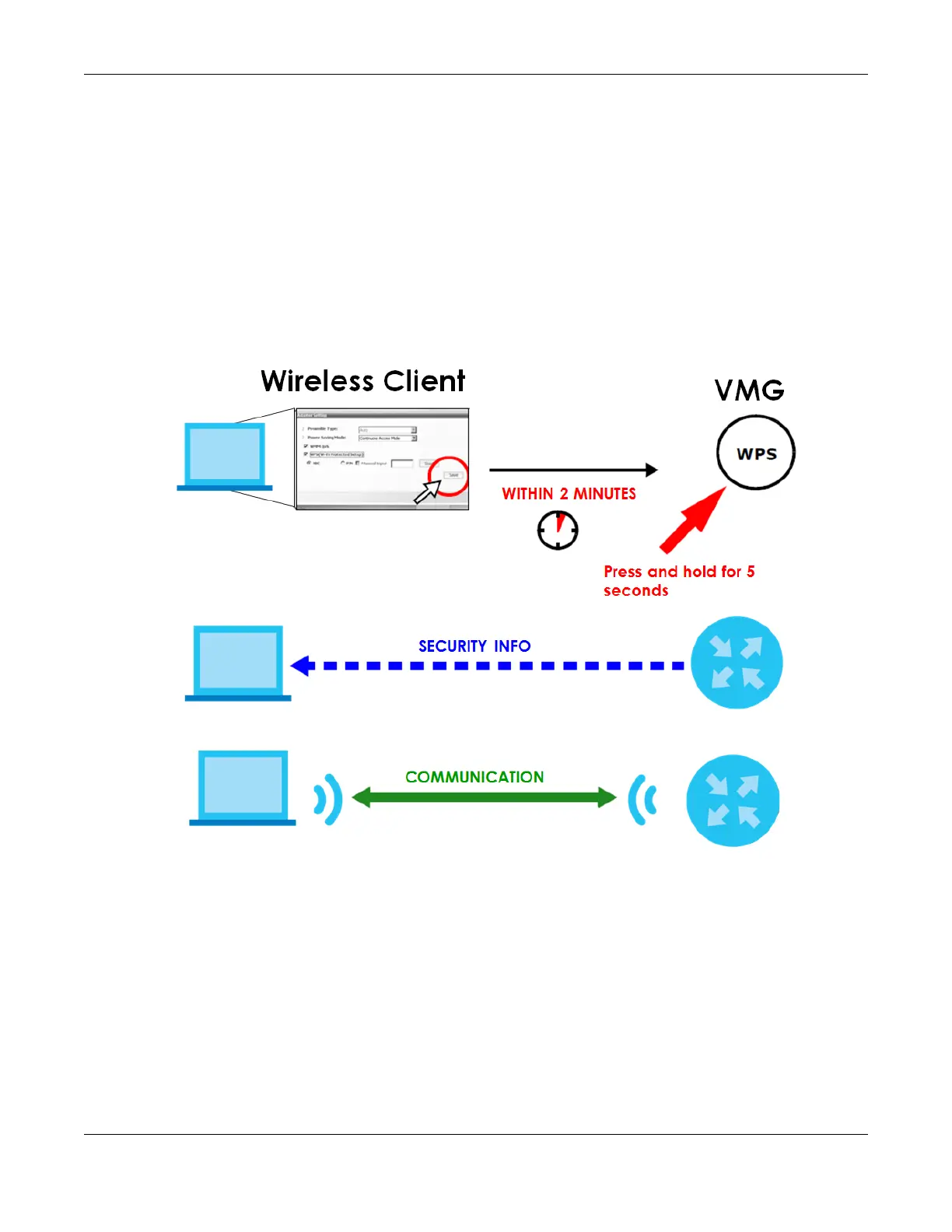

The following figure shows you an example of how to set up a wireless network and its security by
pressing a button on both VMG and wireless client.
Example WPS Process: PBC Method
PIN Configuration
When you use the PIN configuration method, you need to use both the VMG’s web configurator and
the wireless client’s utility.
1 Launch your wireless client’s configuration utility. Go to the WPS settings and select the PIN method to
get a PIN number.
2 Log into VMG’s web configurator and go to the Network Setting > Wireless > WPS screen. Enable the
WPS function and click Apply.
