This tutorial uses the following example IP settings:

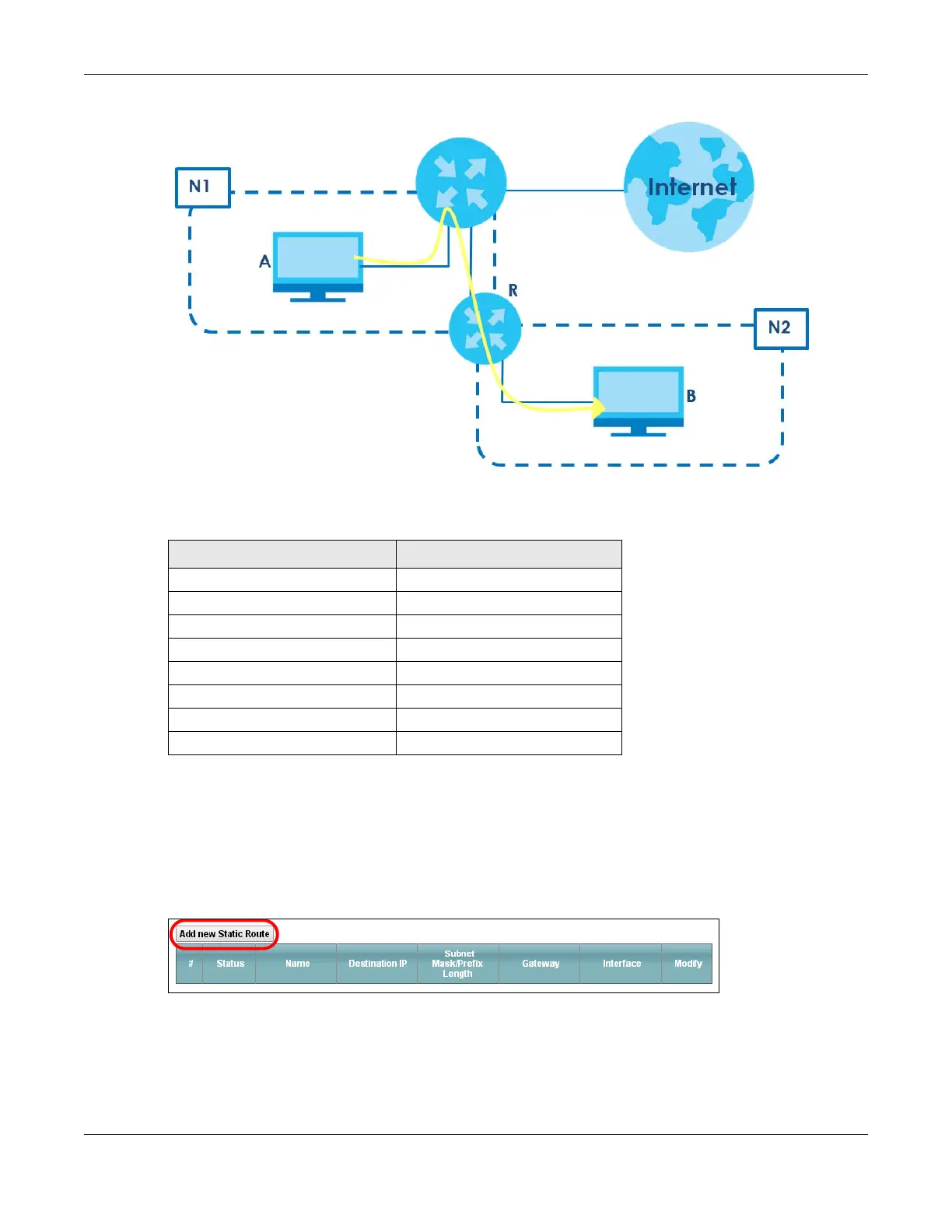

To configure a static route to route traffic from N1 to N2:
1 Log into the VMG’s Web Configurator in advanced mode.
2 Click Network Setting > Routing.
3 Click Add new Static Route in the Static Route screen.
4 Configure the Static Route Setup screen using the following settings:
4a Select Enable in the Active field. Enter the Route Name as R.
4b Set IP Type to IPv4.
Table 6 IP Settings in this Tutorial
DEVICE / COMPUTER IP ADDRESS
The VMG’s WAN 172.16.1.1
The VMG’s LAN 192.168.1.1
IP Type IPv4
Use Interface VDSL
A 192.168.1.34
R’s N1 192.168.1.253
R’s N2 192.168.10.2
B 192.168.10.33
