Chapter 6 Broadband
VMG8924-B10D/B30D User’s Guide
79

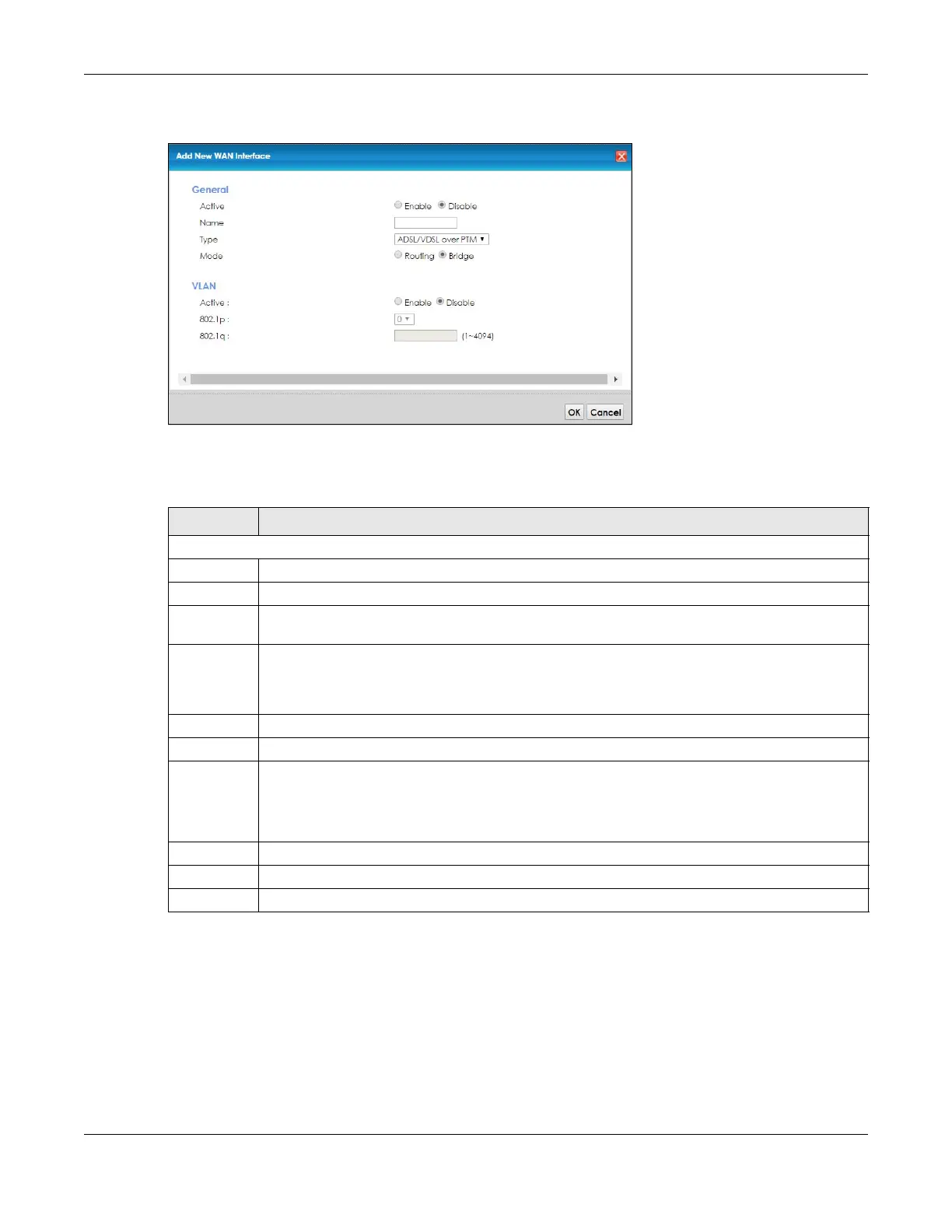

Figure 23 Network Setting > Broadband > Add New WAN Interface/Edit (ADSL/VDSL over PTM -Bridge
Mode)
The following table describes the fields in this screen.
If you select ADSL over ATM as the interface type, the following screen appears.
Table 11 Network Setting > Broadband > Add New WAN Interface/Edit (ADSL/VDSL over PTM -Bridge
Mode)
LABEL DESCRIPTION
General
Active Select Enable or Disable to activate or deactivate the interface.
Name Enter a service name of the connection.
Type Select ADSL/VDSL over PTM as the interface that you want to configure. The VMG uses the VDSL
technology for data transmission over the DSL port.
Mode Select Bridge when your ISP provides you more than one IP address and you want the connected
computers to get individual IP address from ISP’s DHCP server directly. If you select Bridge, you
cannot use routing functions, such as QoS, Firewall, DHCP server and NAT on traffic from the
selected LAN port(s).
VLAN This section is available only when you select ADSL/VDSL over PTM in the Type field.
Active Select Enable to activate VLAN on this WAN interface. Otherwise, select Disable to deactivate.
802.1p IEEE 802.1p defines up to 8 separate traffic types by inserting a tag into a MAC-layer frame that
contains bits to define class of service.
Select the IEEE 802.1p priority level (from 0 to 7) to add to traffic through this connection. The greater
the number, the higher the priority level.
802.1q Type the VLAN ID number (from 0 to 4094) for traffic through this connection.
OK Click OK to save your changes.
Cancel Click Cancel to exit this screen without saving.
