Chapter 6 Broadband
VMG8924-B10D/B30D User’s Guide
86

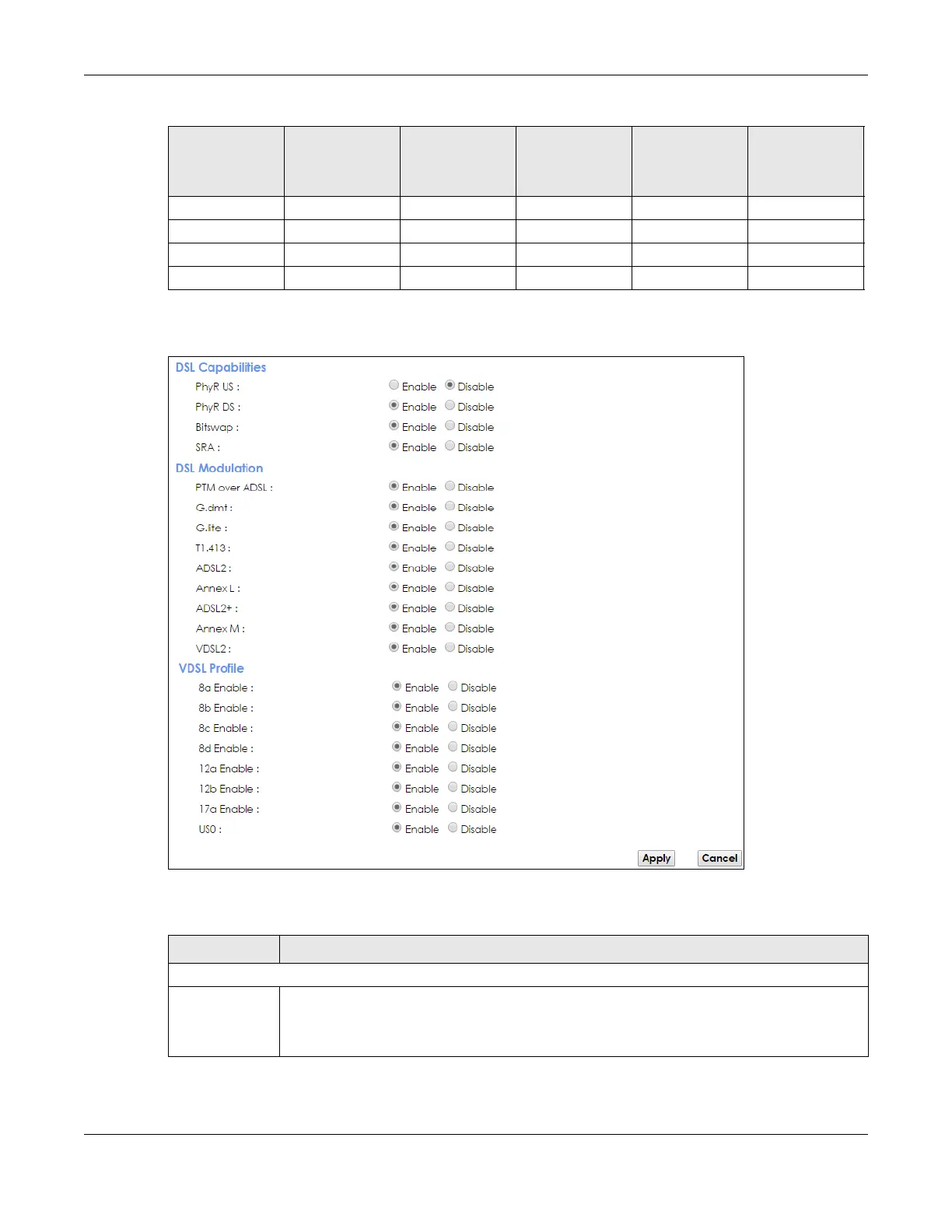

Click Network Setting > Broadband > Advanced to display the following screen.
Figure 27 Network Setting > Broadband > Advanced
The following table describes the labels in this screen.
8d 8.832 2048 4.3125 14.5 50
12a 12 2783 4.3125 14.5 68
12b 12 2783 4.3125 14.5 68
17a 17.664 4096 4.3125 14.5 100
Table 15 Network Setting > Broadband > Advanced
LABEL DESCRIPTION
DSL Capabilities
PhyR US Enable or disable PhyR US (upstream) for upstream transmission to the WAN. PhyR US should be
enabled if data being transmitted upstream is sensitive to noise. However, enabling PhyR US can
decrease the US line rate. Enabling or disabling PhyR will require the CPE to retrain. For PhyR to
function, the DSLAM must also support PhyR and have it enabled.
Table 14 VDSL Profiles (continued)
PROFILE
BANDWIDTH
(MHZ)
NUMBER OF
DOWNSTREAM
CARRIERS
CARRIER
BANDWIDTH
(KHZ)
POWER (DBM)
MAX.
DOWNSTREAM
THROUGHPUT
(MBIT/S)
