9-18 (24) 2UEA001270 Rev. F ACS2000 User manual
Chapter 9 - CDP control panel
9.3.5 Drive selection mode
9.3.5.1 Overview
The drive selection mode is used to connect the CDP control panel to
either the AMC (Application and Motor Controller) circuit board of the AFE
(Active Front End) or the INU (INverter Unit) of the drive.
Note: In this context, the AMC circuit board of the AFE and INU is referred
to as a drive that is identified in the control system by its ID number:
• ID number of INU: 1
• ID number of AFE: 2

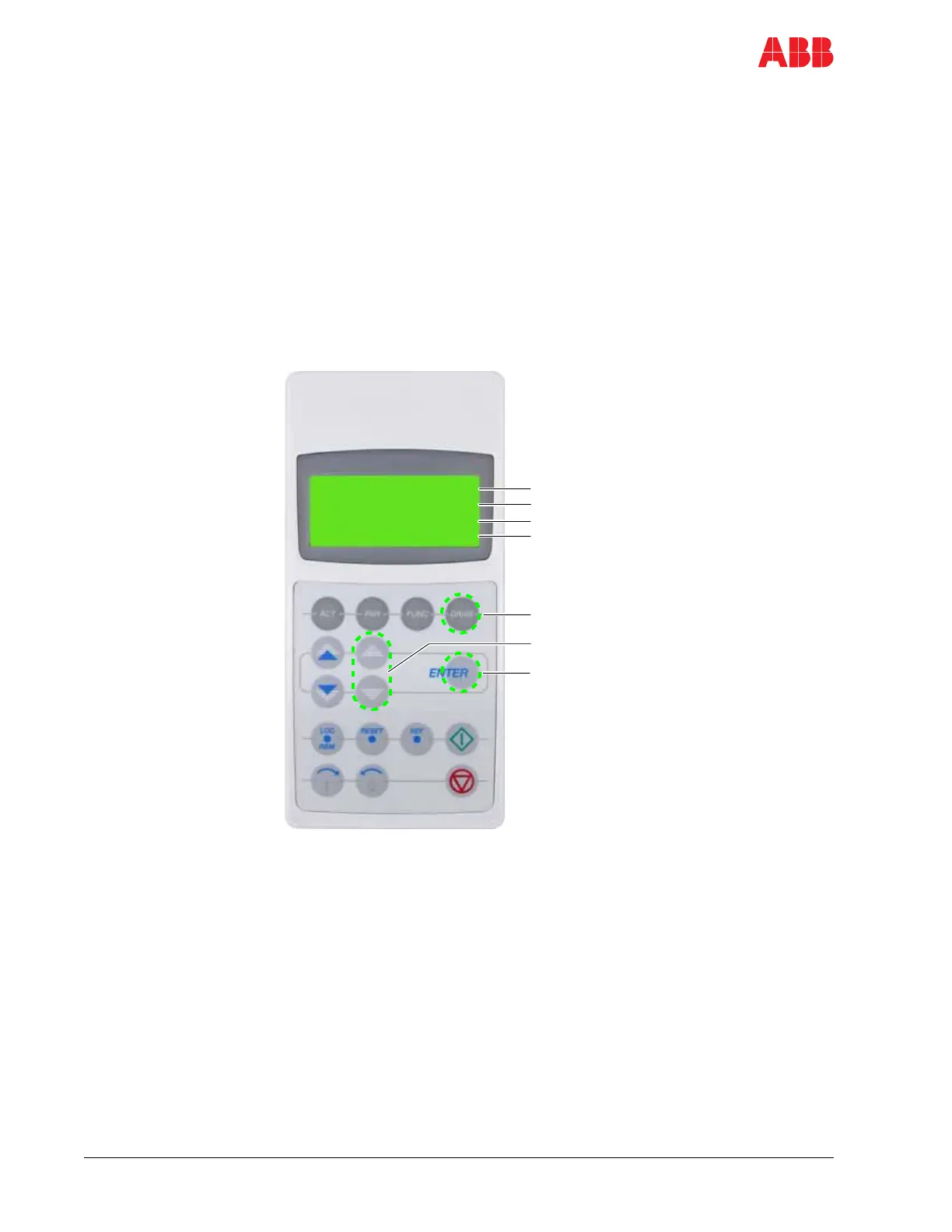

ACS2000AFE
4k SingleINU
LDAI5500
ID-Number
1
Status line
Device type
Application SW version
Drive identification
Selects the drive mode
Selects the AMC circuit board (AFE or INU)
Acknowledges the selection
