ABB ACS2000 User Manual

3-10 (26) 2UEA001270 Rev. F ACS2000 User manual
Chapter 3 - Control system
3.2.2.4 Communication with AMC circuit board
The CDP control panel (1) is connected to the AMC controller of the INU
(2) and AFE (3) of the drive via an RS485 interface. See Figure 3-9.

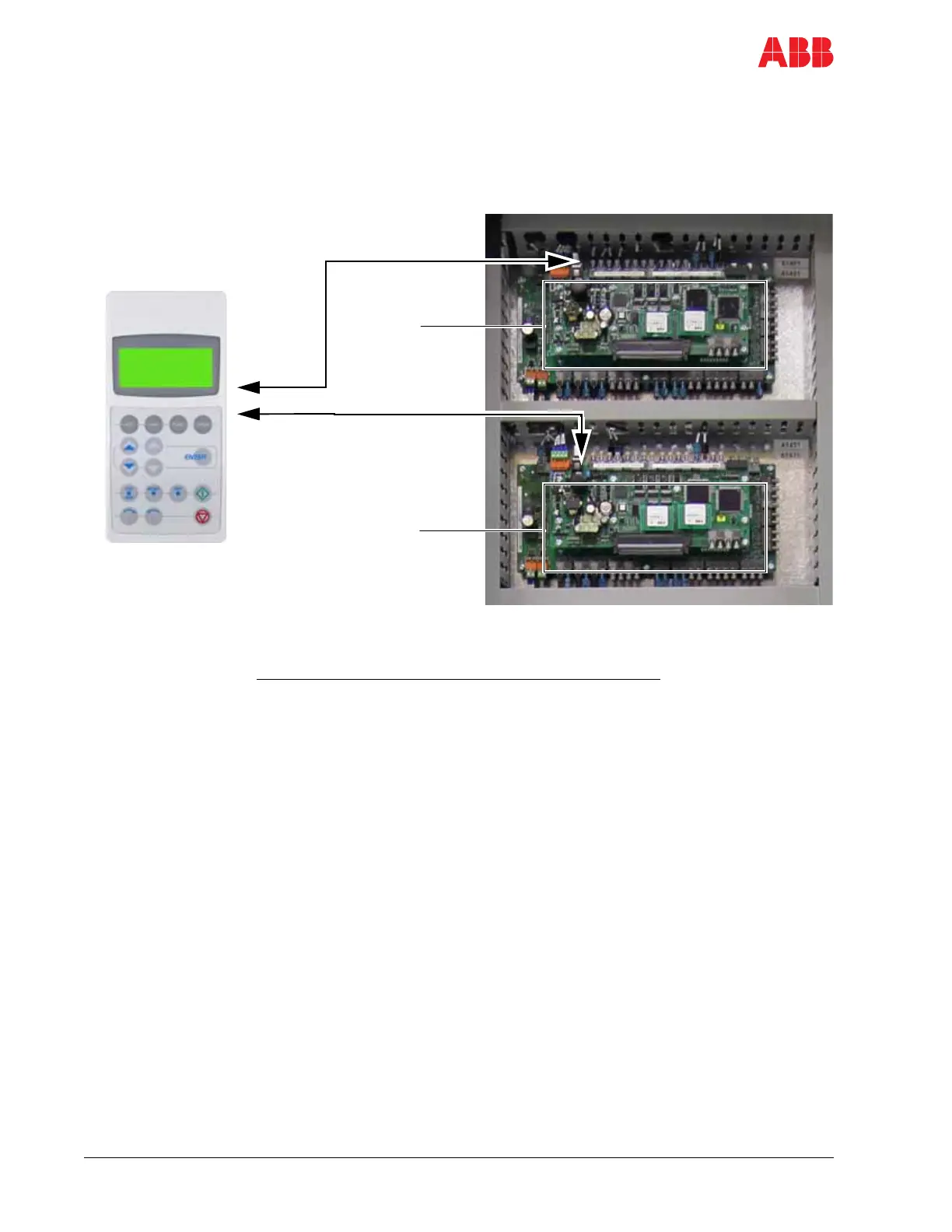

Figure 3-9 AMC circuit boards
1242,0 rpm
1 L ->
StateINU
ReadyOn
1242 rpmMOTOR SP
86.0 kW
POWER
Legend
1 CDP control panel
2 AMC circuit board of the INU (INverter Unit)
3 AMC circuit board of the AFE (Active Front End)
2
1
3

ABB ACS2000 Specifications

General

Cooling Method	Air-cooled
Motor Type	Synchronous and asynchronous motors
Enclosure	IP54
Frequency Range	0 Hz
Control Principle	Closed-loop
Communication Interfaces	Modbus, Profibus, Ethernet
Storage Temperature	-40°C to +70°C
Relative Humidity	Up to 95% non-condensing
Altitude	Up to 1000m without derating
