ACS2000 User manual 2UEA001270 Rev. F 3-9 (26)
Chapter 3 - Control system
3.2.2.2 Panel removal
The CDP control panel can be removed from its mounting cradle.
Before removing the CDP control panel during operation of the drive,
check the setting of parameter 31.01 PANEL LOSS SUPERVISION. If the
parameter is set to NOT USED, the panel can be removed without
interrupting drive operation.
See Appendix M - Signal and parameter table, located on the CD, for
further information on parameter settings.
Note: When the CDP control panel has been removed during operation,
the drive can only be stopped by pressing the emergency-off button.
When removing the panel, proceed as illustrated below. After the panel
has been removed, two LEDs are visible:
• The green LED (see 4 in Figure 3-8) is illuminated when the control
voltage has been switched on.
• The red LED is not used.

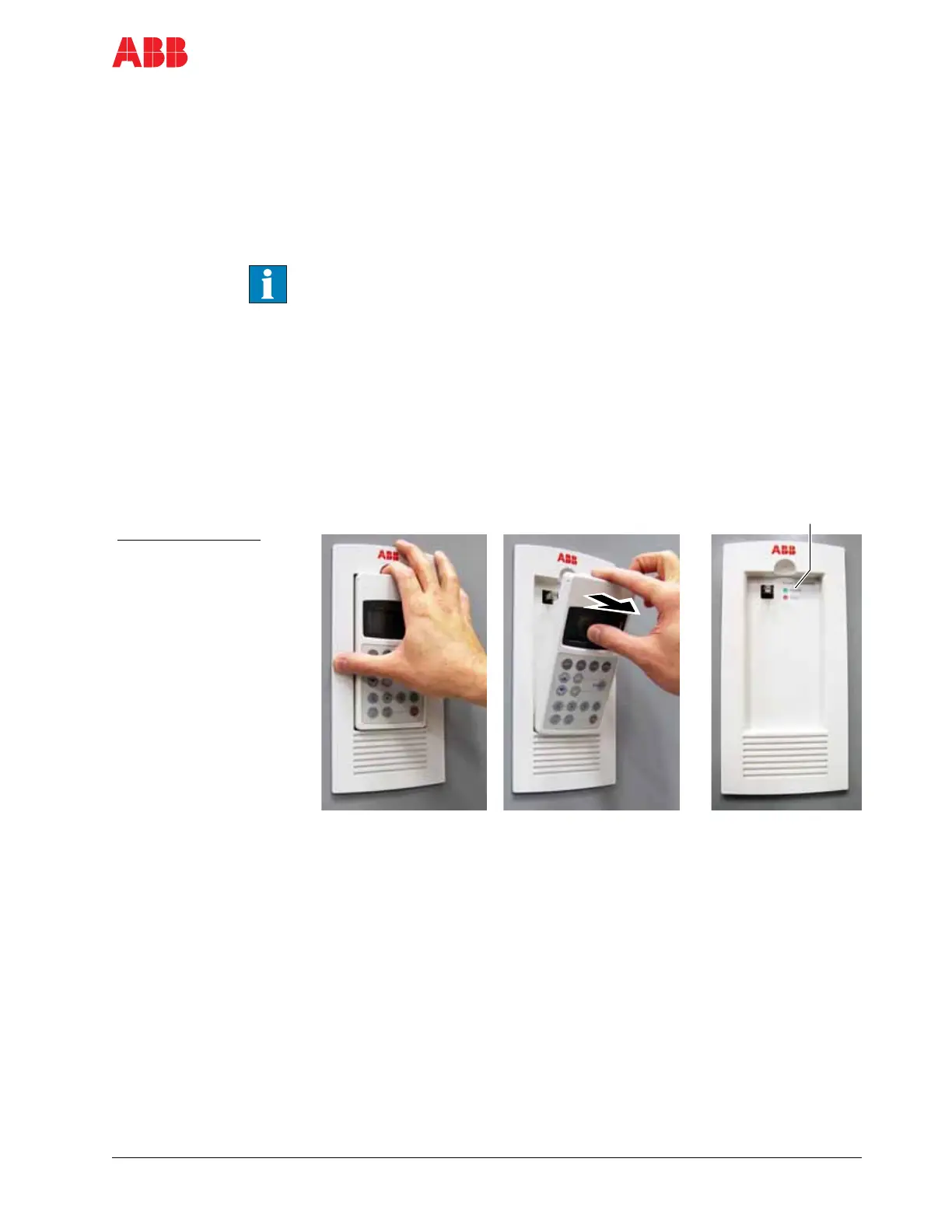

Figure 3-8 CDP control panel removal
3.2.2.3 Dimensions and weight
Dimensions (H x W x D) 170 x 80 x 21 mm [6.7 x 3.2 x 0.8 in]
Weight 0.2 kg [0.4 lbs]
Legend
1 CDP control
panel
2 CDP removal
3 No CDP in
place
4 Green LED
2413
