Installation of FSO-xx beside the control unit
To reserve the slots of the control unit for other modules, you can install the FSO-xx separate
from the control unit using mounting kit 3AXD50000025495. The kit contains the parts for
mounting the FSO-xx either onto a DIN rail nearby the control unit or onto the
grounding/clamping plate of a ZCU-14 (used in frames R1i…R4i) control unit. The kit also
contains longer cables for connecting the FSO-xx to the control unit.
Refer to instruction 3AXD50000025583 for installation details.

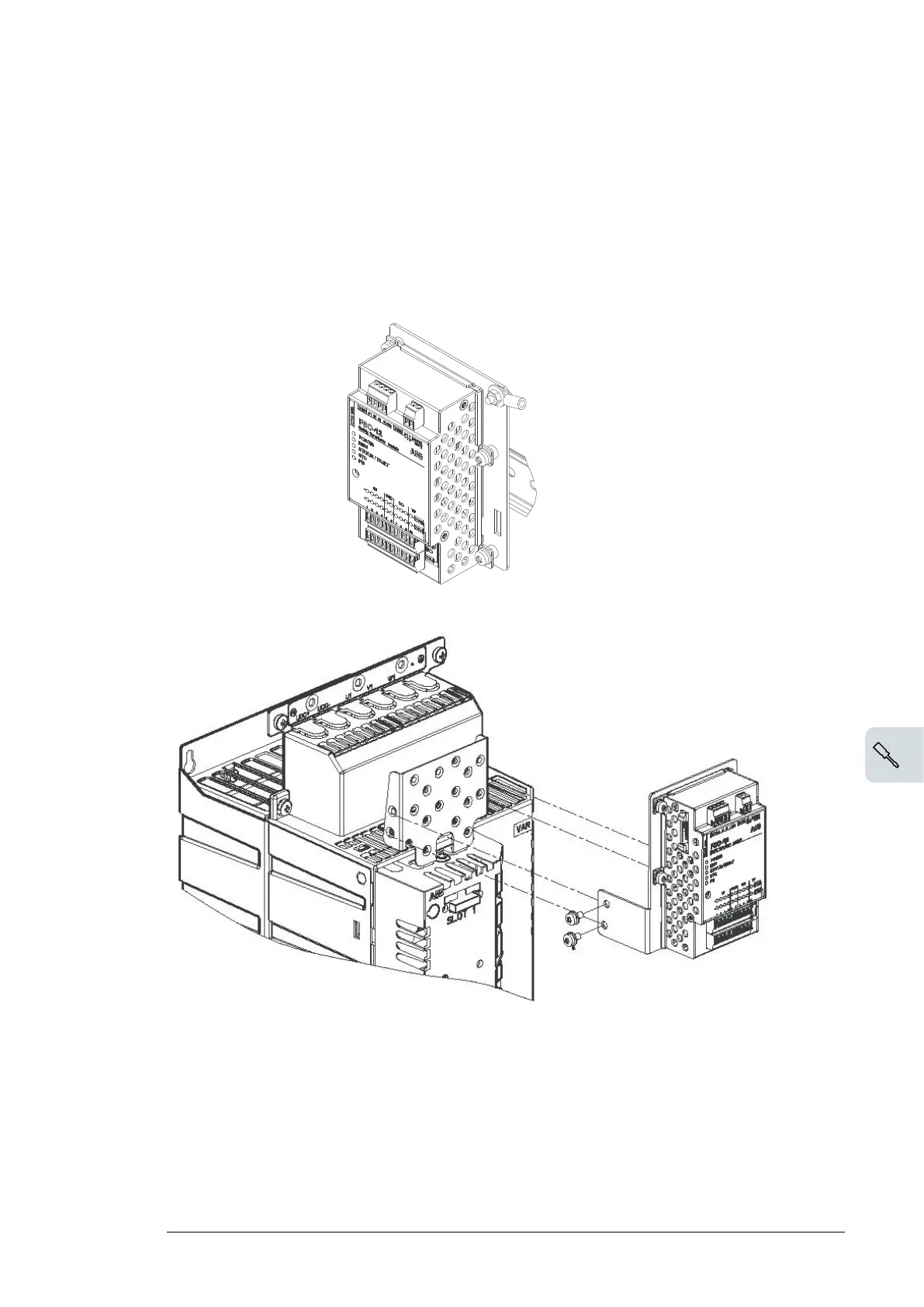

Mounting on DIN rail
Mounting on ZCU-14 grounding/clamping plate (with frames R1i…R4i)
Electrical installation 163
