Control panel
The control panel is not included with the module but must be ordered separately. One
control panel is required for the commissioning of an ACS880 drive system, even if the Drive
composer PC tool is used.
The control panel can be flush mounted on the cabinet door with the help of a door mounting
kit. For more information on the control panel, see ACX-AP-x assistant control panels user’s
manual (3AUA0000085685 [English]).
IllustrationOrdering codeDescriptionType
3AXD50000025965Control panel with BluetoothACS-AP-W
114 Ordering information
 Control panel
The control panel is not included with the supply module but must be ordered separately.
One control panel is required for the commissioning of an ACS880 drive system, even if
the Drive composer PC tool is used.
The control panel can be flush mounted on the cabinet door with the help of a door
mounting kit. For more information on the control panel, see ACX-AP-x assistant control
panels user’s manual (3AUA0000085685 [English]). For the dimension drawing, see
section DPMP-01 door mounting kit on page 159.
The kit contains:
• front cover
• flat cable (between DDPI-01 board and the panel)
• DDPI-01 board, cover and M4×8 combi screw for the cover
• EMC shield
• control panel mounting platform
• grounding wire
• Ethernet cable (3 m).
DPMP-01 mounting platform for ACS-AP control panel installation guide
[3AUA0000100140 (English)].

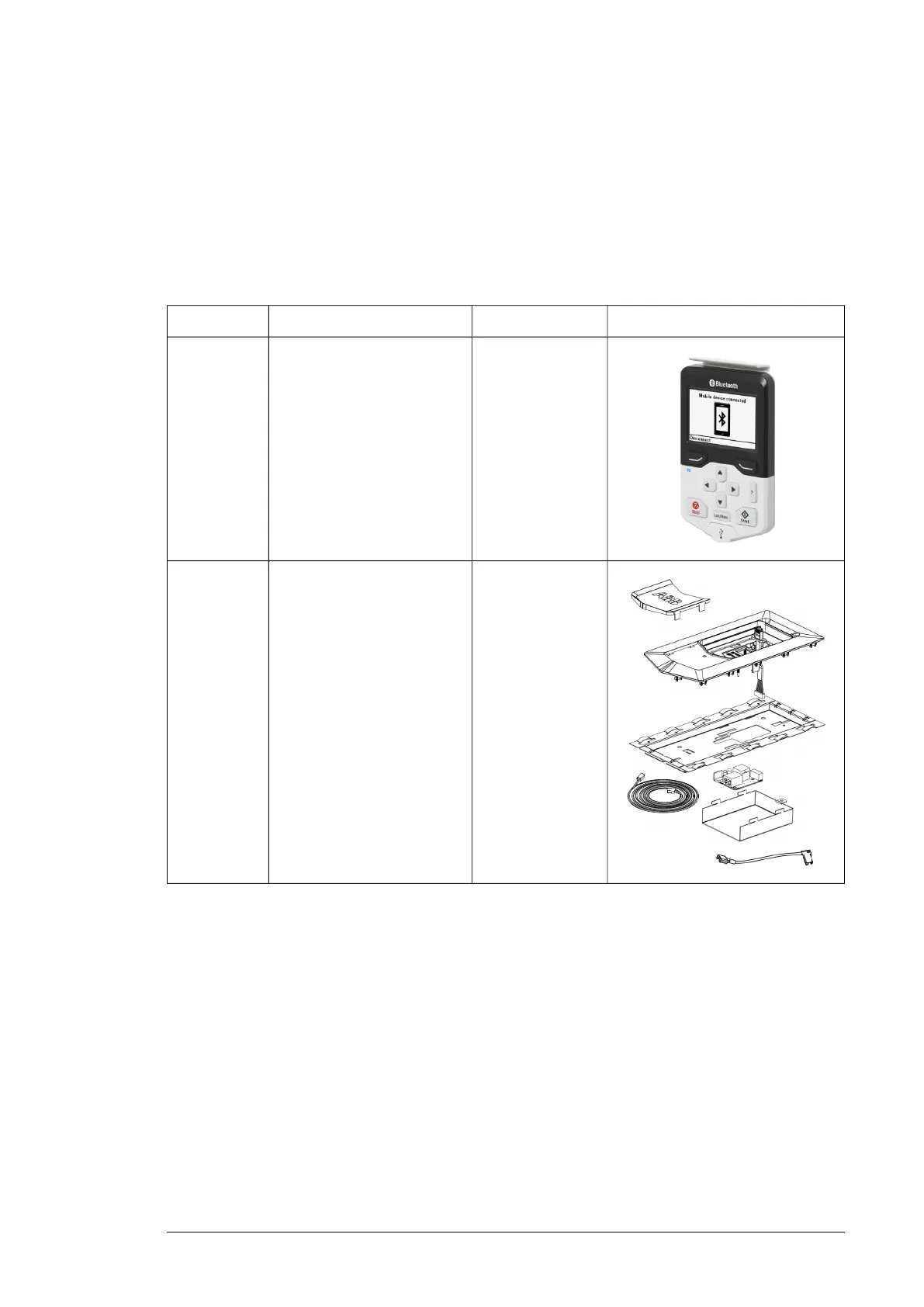

Type Description Ordering code Illustration
ACS-AP-W
Control panel with
Bluetooth
3AXD50000025965
DPMP-01
Door mounting kit
(IP55)
3AUA0000108878
3AUA0000108878Door mounting kit (IP55)DPMP-01
The door mounting kit contains:
• front cover
• flat cable (between DDPI-01 board and the panel)
• DDPI-01 board, cover and M4×8 combi screw for the cover
• EMC shield
• control panel mounting platform
• grounding wire
• Ethernet cable (3 m).
•
DPMP-01 mounting platform for ACS-AP control panel installation guide
[3AUA0000100140 (English)].
