ABB ACS880-104

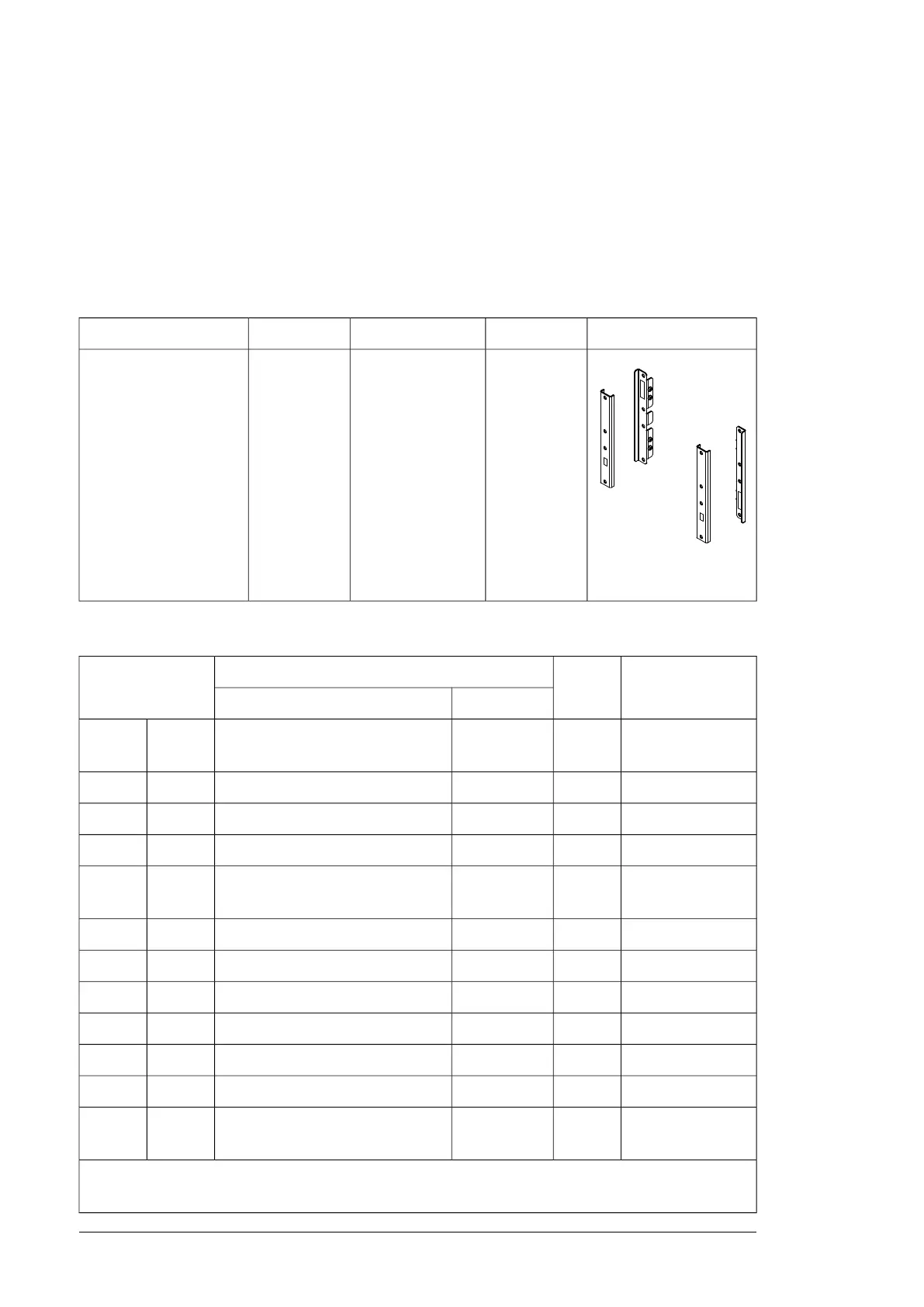

DC bus installation parts (for Rittal VX25 enclosures)
The brackets in this kit act as a mounting base for the busbar supports of the Rittal Flat-PLS
DC bus and ensure its correct placement and alignment inside the cabinet line-up.
Note:
The designs presented in this manual for Rittal VX25 enclosures employ the Rittal Flat-PLS
busbar system. Make sure that the current carrying capability of the busbars is not exceeded
at any point of the drive system.
IllustrationKit codeOrdering codeQtyUsed with …
A-468-X-001-
VX
3AXD50000333387
1 kit per cu-
bicle
400/600/800 mm VX25
enclosure
Instruction code:
3AXD50000333639
Module-specific DC fuses (IEC, UL)
Ordering codeQty
Fuse
Module type
ACS880-104-…
DataType
3AUA0000089115210 A, 660 VBussmann FWP-10A14F*
003A6-5
004A8-5
004A8-3
006A0-3
3AUA0000089116215 A, 660 VBussmann FWP-15A14F*006A0-5008A0-3
3AUA0000089117220 A, 660 VBussmann FWP-20A14F*008A0-50011A-3
3AUA0000089118225 A, 660 VBussmann FWP-25A14F*0011A-50014A-3
3AUA0000089119232 A, 660 VBussmann FWP-32A14F*
0014A-5
0018A-5
0018A-3
3AXD50000000189250 A, 690 VMersen 6,921 CP URQ 27x60/50**0025A-50025A-3
3AXD50000000211263 A, 690 VMersen 6,921 CP URQ 27x60/63**0030A-50035A-3
3AXD50000000213280 A, 690 VMersen 6,921 CP URQ 27x60/80**0035A-50044A-3
3AXD500000002152100 A, 690 VMersen 6,921 CP URQ 27x60/100**0050A-50050A-3
3AXD500000002172125 A, 690 VMersen 6,921 CP URQ 27x60/125**0061A-50061A-3
3AXD500000002192160 A, 690 VMersen 6,921 CP URQ 27x60/160**0078A-50078A-3
3AXD500000002212200 A, 690 VMersen 6,921 CP URQ 27x60/200**
0094A-50094A-3
0100A-3
*Size: 14 × 51 mm
**Size: 27 × 60 mm
