￭ OHB_ switch handles
Note: The drawings are not to scale.

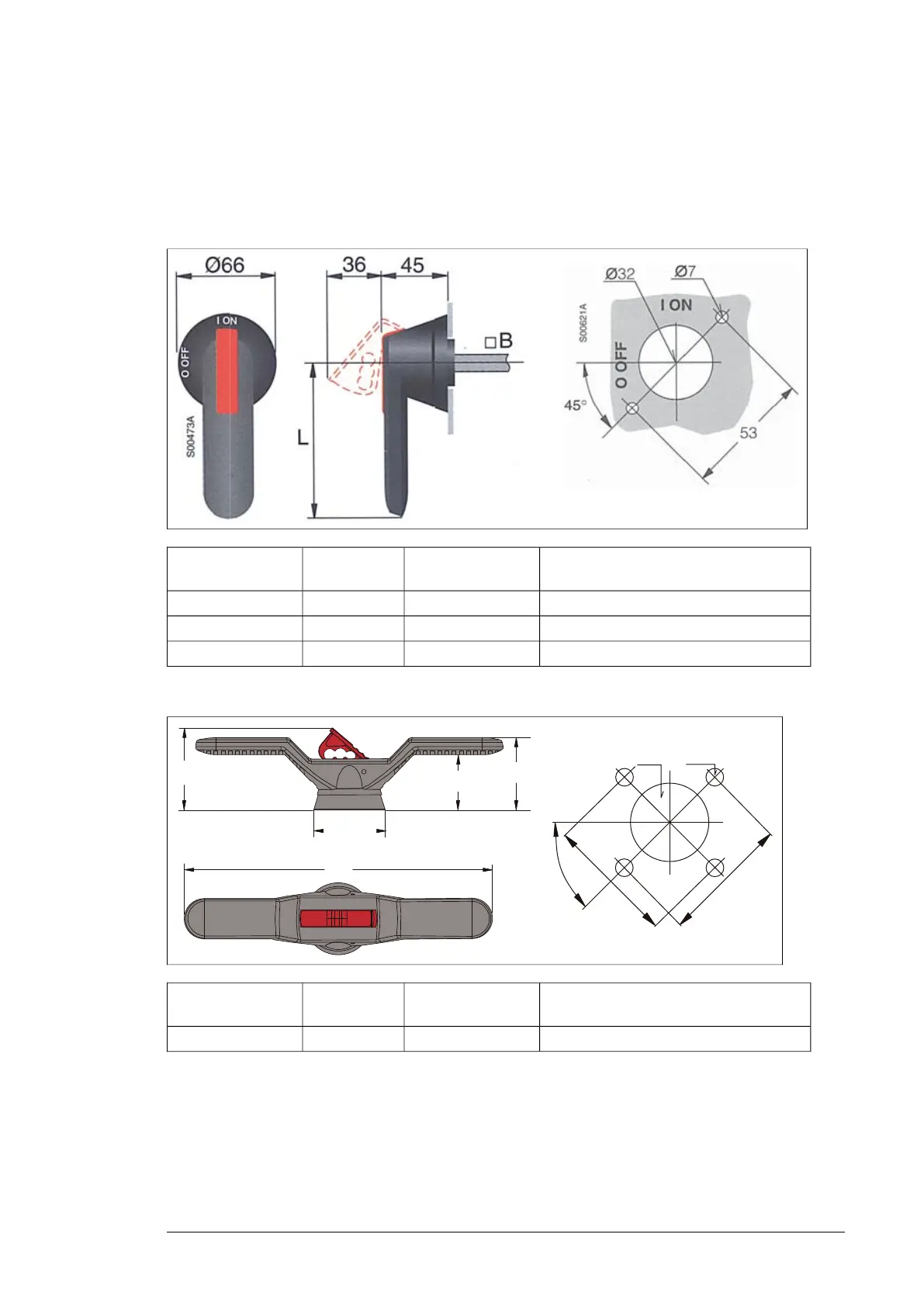

OHB65J6, OHB125J12, OHB145J12

NotesB
mm (inch)
L
mm (inch)
Handle type
Used with OS_, OT200_6 × 6 (0.24 × 0.24)65 (2.56)OHB65J6
Used with OT400_12 × 12 (0.47 × 0.47)125 (4.92)OHB125J12
Used with OT600_ and OT630_12 × 12 (0.47 × 0.47)145 (5.71)OHB145J12
OHB150J12P

Ø 31
Ø 5
45°
53
53
69,4
54
71
80
L
ø
NotesShaft
mm (inch)
L
mm (inch)
Handle type
Used with OT1200U11 and OT1600E1112 × 12 (0.47 × 0.47)300 (11.81)OHB150J12P
Dimension drawings 371
