ZCU-14 layout and connections

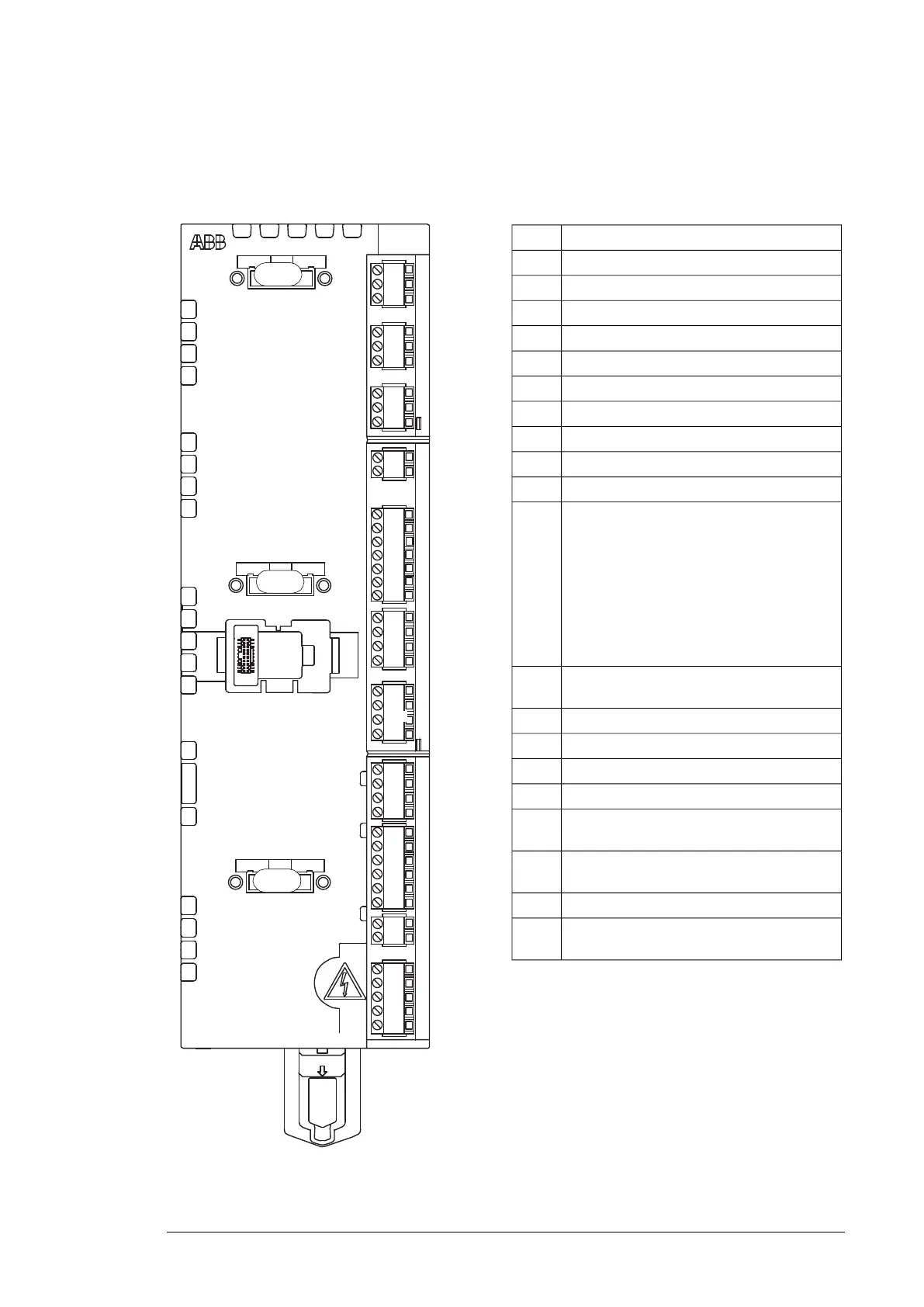

The layout and connections of the ZCU-14 are shown below.
Description
External power inputXPOW
Analog inputsXAI
Analog outputsXAO
Drive-to-drive linkXD2D
Relay output RO1XRO1
Relay output RO2XRO2
Relay output RO3XRO3
Digital input interlock (DIIL) and +24 V outputXD24
Digital input/outputsXDIO
Digital inputsXDI
Safe torque off connection (inverter unit only).
Note:
This connection only acts as a true Safe
torque off input when the ZCU is controlling
an inverter unit. When the ZCU is controlling
a supply unit, de-energizing the inputs will
stop the unit but will not constitute a true
safety function.
XSTO
Connection for FSO-xx safety functions
module (inverter unit only).
X12
Control panel connectionX13
Option slot 1X202
Option slot 2X203
Option slot 3X204
Memory unit connection (memory unit inser-
ted in the drawing)
X205
Voltage/Current selection jumpers (J1, J2) for
analog inputs
J1, J2
Drive-to-drive link termination switch (J3)J3
Common digital input ground selection jumper
(J6).
J6
146 Supply control unit
 Layout and connections
The layout and connections of the ZCU-14 are shown below.
SLOT 1
SLOT 2
SLOT 3
X12
SAFETY
OPTION
X208
FAN2
X210
FAN1
X209
AIR IN
TEMP
X13
CONTROL PANEL
X205
MEMORY UNIT
CLOSE
X
R
O
2
X
R
O
3
X
P
O
W
J1J2
X
A
I
X
A
O
X
D
2
D
X
S
T
O
X
D
I
X
D
I
O
J6
X
D
2
4
X
R
O
1
J3
Description
XPOW External power input
XAI Analog inputs
XAO Analog outputs
XD2D Drive-to-drive link
XRO1 Relay output RO1
XRO2 Relay output RO2
XRO3 Relay output RO3
XD24 Digital input interlock (DIIL) and +24 V output
XDIO Digital input/outputs
XDI Digital inputs
XSTO Safe torque off functionality is not available in the
supply units.
X12 Connection for safety functions modules is not
available in the supply units.
X13 Control panel connection
X202 Option slot 1
X203 Option slot 2
X204 Option slot 3
X205 Memory unit connection (memory unit inserted in the
drawing)
J1, J2 Voltage/Current selection jumpers (J1, J2) for analog
inputs
J3 Drive-to-drive link termination jumper (J3)
ON OFF
J6 Common digital input ground selection jumper (J6).
See the Ground isolation diagram (ZCU) (page 151).
