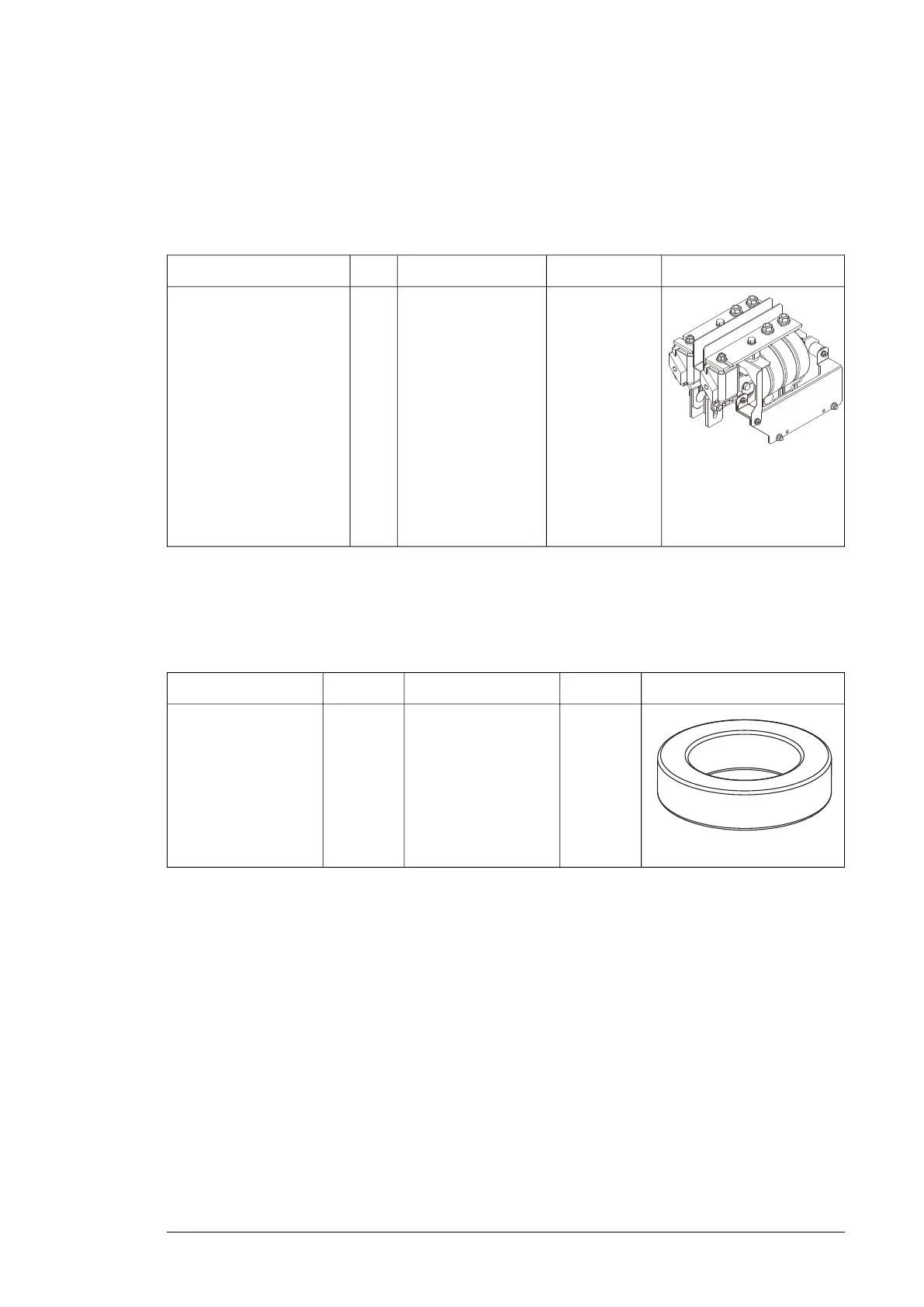

DC busbars with fuse and common mode filter holders (for generic enclosures)
This kit contains the busbars that connect to the DC input of the inverter module. The kit is
mounted onto the module. It has screws for cable lug connection as well as a holder for the
DC fuses and common mode filters. Note that the fuses and filters are not included in the
kit.
IllustrationKit codeOrdering codeQtyUsed with…
Instruction code:
3AXD50000023500
Note: Fuses and filters to be
ordered separately
A-0-67-2443AXD500000233291
R6i
R7i
Common mode filters
Common mode filtering reduces bearing currents and is required for electromagnetic
compatibility (EMC). The filtering is implemented by installing two toroidal cores onto the
DC busbars. The cores must be ordered separately.
IllustrationKit codeOrdering codeQtyUsed with
Instruction code: 3AUA0000123359
-3AUA0000032859
2 per mod-
ule
All enclosure types
Ordering information 231
