￭ ZCU-1x ground isolation diagram
Supply control unit 155

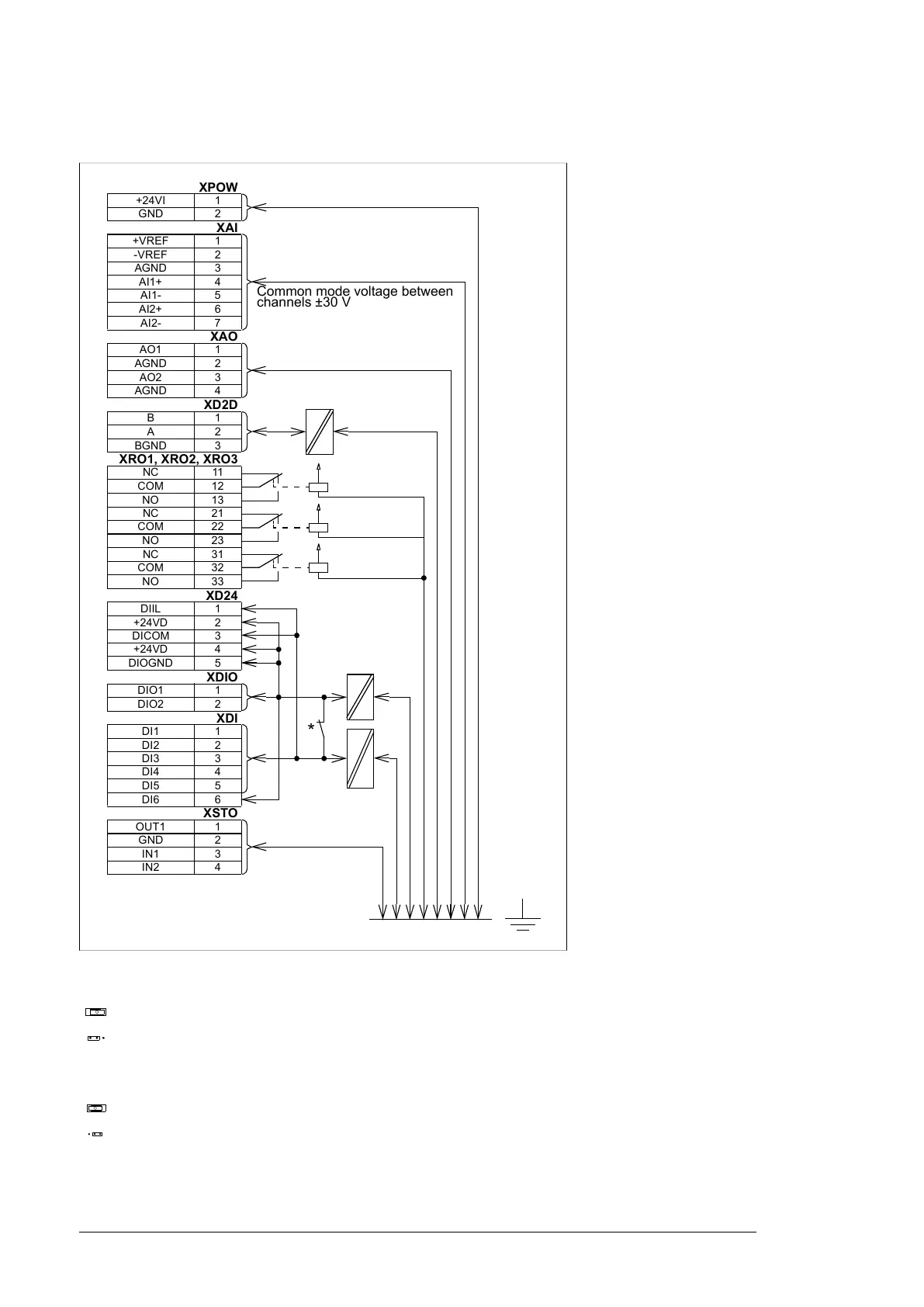

Ground isolation diagram (ZCU)
XPOW
+24VI 1
GND 2
XAI
+VREF 1
-VREF 2
AGND 3
AI1+ 4
AI1- 5
AI2+ 6
AI2- 7
XAO
AO1 1
AGND 2
AO2 3
AGND 4
XD2D
B1
A2
BGND 3
XRO1, XRO2, XRO3
NC 11
COM 12
NO 13
NC 21
COM 22
NO 23
NC 31
COM 32
NO 33
XD24
DIIL 1
+24VD 2
DICOM 3
+24VD 4
DIOGND 5
XDIO
DIO1 1
DIO2 2
XDI
DI1 1
DI2 2
DI3 3
DI4 4
DI5 5
DI6 6
XSTO
OUT1 1
GND 2
IN1 3
IN2 4
*
*Ground selector (J6) settings
(ZCU-12)
(ZCU-14)
All digital inputs share a common ground (DICOM connected to DIOGND). This is the default setting.
(ZCU-12)
(ZCU-14)
Ground of digital inputs DI1…DI5 and DIIL (DICOM) is isolated from DIO signal ground (DIOGND).
Isolation voltage 50 V.
Common mode voltage between
channels ±30 V
* Ground selector (J6) settings
(ZCU-12)
Supply control unit 155
Ground isolation diagram (ZCU)
XPOW
+24VI 1
GND 2
XAI
+VREF 1
-VREF 2
AGND 3
AI1+ 4
AI1- 5
AI2+ 6
AI2- 7
XAO
AO1 1
AGND 2
AO2 3
AGND 4
XD2D
B1
A2
BGND 3
XRO1, XRO2, XRO3
NC 11
COM 12
NO 13
NC 21
COM 22
NO 23
NC 31
COM 32
NO 33
XD24
DIIL 1
+24VD 2
DICOM 3
+24VD 4
DIOGND 5
XDIO
DIO1 1
DIO2 2
XDI
DI1 1
DI2 2
DI3 3
DI4 4
DI5 5
DI6 6
XSTO
OUT1 1
GND 2
IN1 3
IN2 4
*
Ground
Common mode voltage between
channels +
30 V
*Ground selector (J6) settings
(ZCU-12)
(ZCU-14)
All digital inputs share a common ground (DICOM connected to DIOGND). This is the default setting.
(ZCU-12)
(ZCU-14)
Ground of digital inputs DI1…DI5 and DIIL (DICOM) is isolated from DIO signal ground (DIOGND).
Isolation voltage 50 V.
(ZCU-14)
152 Supply control unit
Notes:
Wire sizes and tightening torques: 0.5 … 2.5 mm
2
(24…12 AWG) and 0.5 N·m (5 lbf·in) for both stranded and
solid wiring.
As the very same control program is in use with different diode supply types, the default connections are not
applicable to them all. For example, some units have the DC link charging, some do not have it. The default
parameter settings and IO connections are valid for the version without the charging circuit.
1)
Use of the signal in the control program. When parameter 120.30 External charge enable has value Yes, the
control program reserves this I/O terminal for external charging circuit control and monitoring, and parameters
110.24 RO1 source and 110.30 RO3 source are write-protected. If the value is No, you can use the I/O terminal
for other purposes.
2)
Current [0(4)…20 mA, R
in
> 100 ohm] or voltage [0(2)…10 V, R
in
> 200 kohm] input selected by jumper J1.
Change of setting requires reboot of control unit.
3)
Current [0(4)…20 mA, R
in
> 100 ohm] or voltage [0(2)…10 V, R
in
> 200 kohm] input selected by jumper J2.
Change of setting requires reboot of control unit.
4)
Must be set to ON when the unit is the first or last unit on the drive-to-drive (D2D) link
5)
Determines whether DICOM is separated from DIOGND (ie. common reference for digital inputs floats). See
also section Ground isolation diagram (ZCU) on page 155.
DICOM connected to DIOGND.
DICOM and DIOGND separate.
6)
Total load capacity of these outputs is 4.8 W (200 mA / 24 V) minus the power taken by DIO1 and DIO2.
7)
The function is only implemented in inverter units, not with the supply units.This input only acts as a true Safe
torque off input in control units controlling a motor. In other applications (such as a supply or brake unit), de-
energizing the IN1 and/or IN2 terminal will stop the unit but not constitute a true safety function.
External power supply for the control unit (XPOW)
The cabinet builder must arrange an auxiliary voltage of 24 V DC to power up the ZCU
control unit. External +24 V (2 A) power supply for the control unit is connected to terminal
block XPOW.
All digital inputs share a common ground (DICOM connected to DIOGND). This is the default setting.
(ZCU-12)
Supply control unit 155
Ground isolation diagram (ZCU)
XPOW
+24VI 1
GND 2
XAI
+VREF 1
-VREF 2
AGND 3
AI1+ 4
AI1- 5
AI2+ 6
AI2- 7
XAO
AO1 1
AGND 2
AO2 3
AGND 4
XD2D
B1
A2
BGND 3
XRO1, XRO2, XRO3
NC 11
COM 12
NO 13
NC 21
COM 22
NO 23
NC 31
COM 32
NO 33
XD24
DIIL 1
+24VD 2
DICOM 3
+24VD 4
DIOGND 5
XDIO
DIO1 1
DIO2 2
XDI
DI1 1
DI2 2
DI3 3
DI4 4
DI5 5
DI6 6
XSTO
OUT1 1
GND 2
IN1 3
IN2 4
*
Ground
Common mode voltage between
channels +
30 V
*Ground selector (J6) settings
(ZCU-12)
(ZCU-14)
All digital inputs share a common ground (DICOM connected to DIOGND). This is the default setting.
(ZCU-12)
(ZCU-14)
Ground of digital inputs DI1…DI5 and DIIL (DICOM) is isolated from DIO signal ground (DIOGND).
Isolation voltage 50 V.
(ZCU-14)
152 Supply control unit
Notes:
Wire sizes and tightening torques: 0.5 … 2.5 mm
2
(24…12 AWG) and 0.5 N·m (5 lbf·in) for both stranded and
solid wiring.
As the very same control program is in use with different diode supply types, the default connections are not
applicable to them all. For example, some units have the DC link charging, some do not have it. The default
parameter settings and IO connections are valid for the version without the charging circuit.
1)
Use of the signal in the control program. When parameter 120.30 External charge enable has value Yes, the
control program reserves this I/O terminal for external charging circuit control and monitoring, and parameters
110.24 RO1 source and 110.30 RO3 source are write-protected. If the value is No, you can use the I/O terminal
for other purposes.
2)
Current [0(4)…20 mA, R
in
> 100 ohm] or voltage [0(2)…10 V, R
in
> 200 kohm] input selected by jumper J1.
Change of setting requires reboot of control unit.
3)
Current [0(4)…20 mA, R
in
> 100 ohm] or voltage [0(2)…10 V, R
in
> 200 kohm] input selected by jumper J2.
Change of setting requires reboot of control unit.
4)
Must be set to ON when the unit is the first or last unit on the drive-to-drive (D2D) link
5)
Determines whether DICOM is separated from DIOGND (ie. common reference for digital inputs floats). See
also section Ground isolation diagram (ZCU) on page 155.
DICOM connected to DIOGND.
DICOM and DIOGND separate.
6)
Total load capacity of these outputs is 4.8 W (200 mA / 24 V) minus the power taken by DIO1 and DIO2.
7)
The function is only implemented in inverter units, not with the supply units.This input only acts as a true Safe
torque off input in control units controlling a motor. In other applications (such as a supply or brake unit), de-
energizing the IN1 and/or IN2 terminal will stop the unit but not constitute a true safety function.
External power supply for the control unit (XPOW)
The cabinet builder must arrange an auxiliary voltage of 24 V DC to power up the ZCU
control unit. External +24 V (2 A) power supply for the control unit is connected to terminal
block XPOW.
Ground of digital inputs DI1…DI5 and DIIL (DICOM) is isolated from DIO signal ground (DIOGND).
Isolation voltage 50 V.
