Section D Graphic Display
D-85

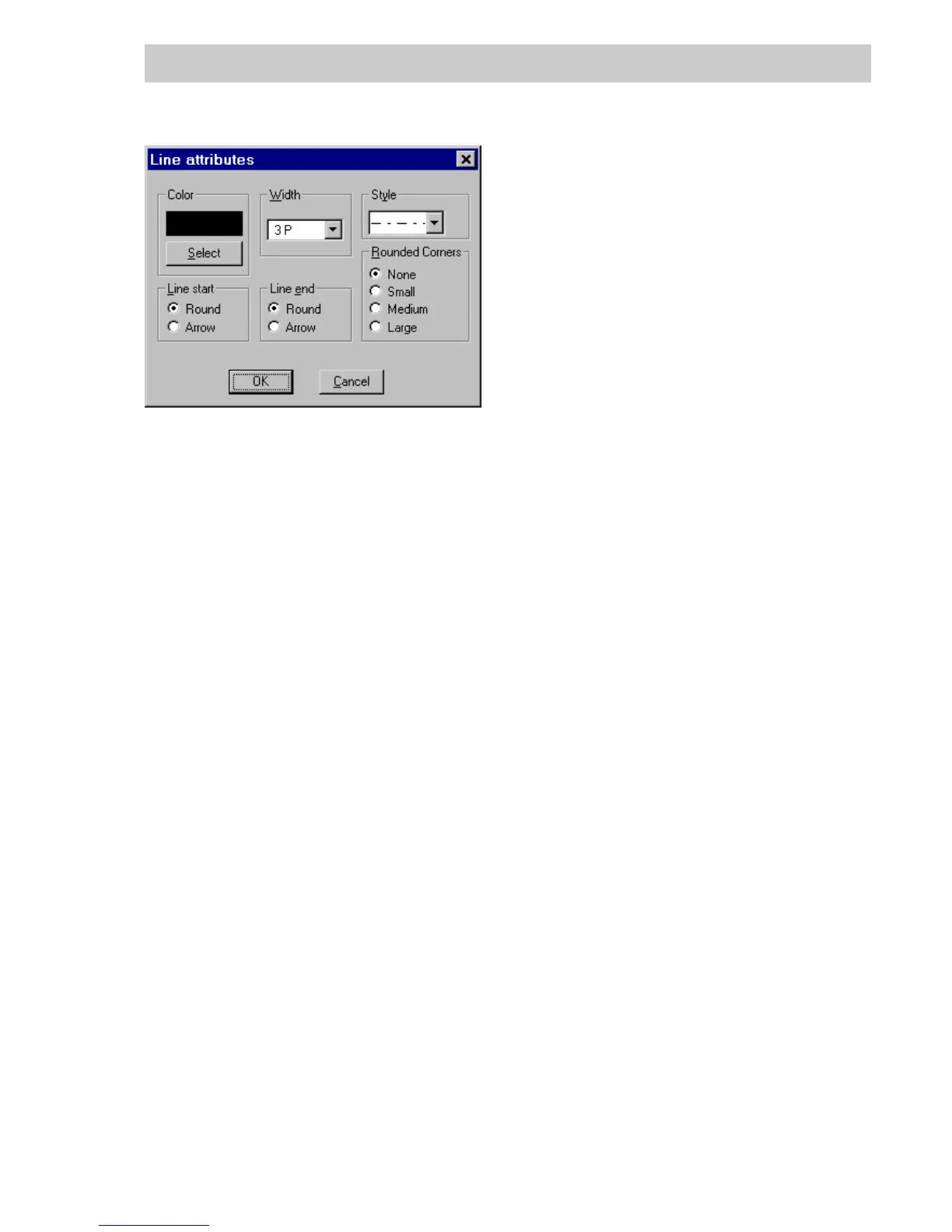

Color The attribute line color applies to all static graphic objects with the
exception of text and bitmaps.
Any of 237 colors or invisible can be selected. See page D-13, Color
selection.
Width The attribute line width applies to all static graphic objects with the
exception of text and bitmaps, and also to the dynamic objects bar graph,
selection field and fill area.
6 width sizes can be selected.
Dimensions like 1P, 5P etc. are abstract and depend on the screen
resolution; they do not refer to pixel size.
Style The attribute line style applies to all static graphic objects with the
exception of text and bitmaps, and also to the dynamic objects bar graph,
selection field and fill level.
Continuous, dashed, dotted, or dash-dotted can be selected.
Line start
Line end The attribute line start/end only applies to the static graphic objects line,
polyline and arc.
An arrow can be selected at the start and/or end.
The size of the arrow depends on the line width.
Rounded corners The attribute rounded corners applies to the static graphic objects
rectangle, polyline and polygon, and to the dynamic objects bar graph,
selection field and fill area.
None, small, medium or large can be selected.
