ABB IRB 2600 Series - Page 57

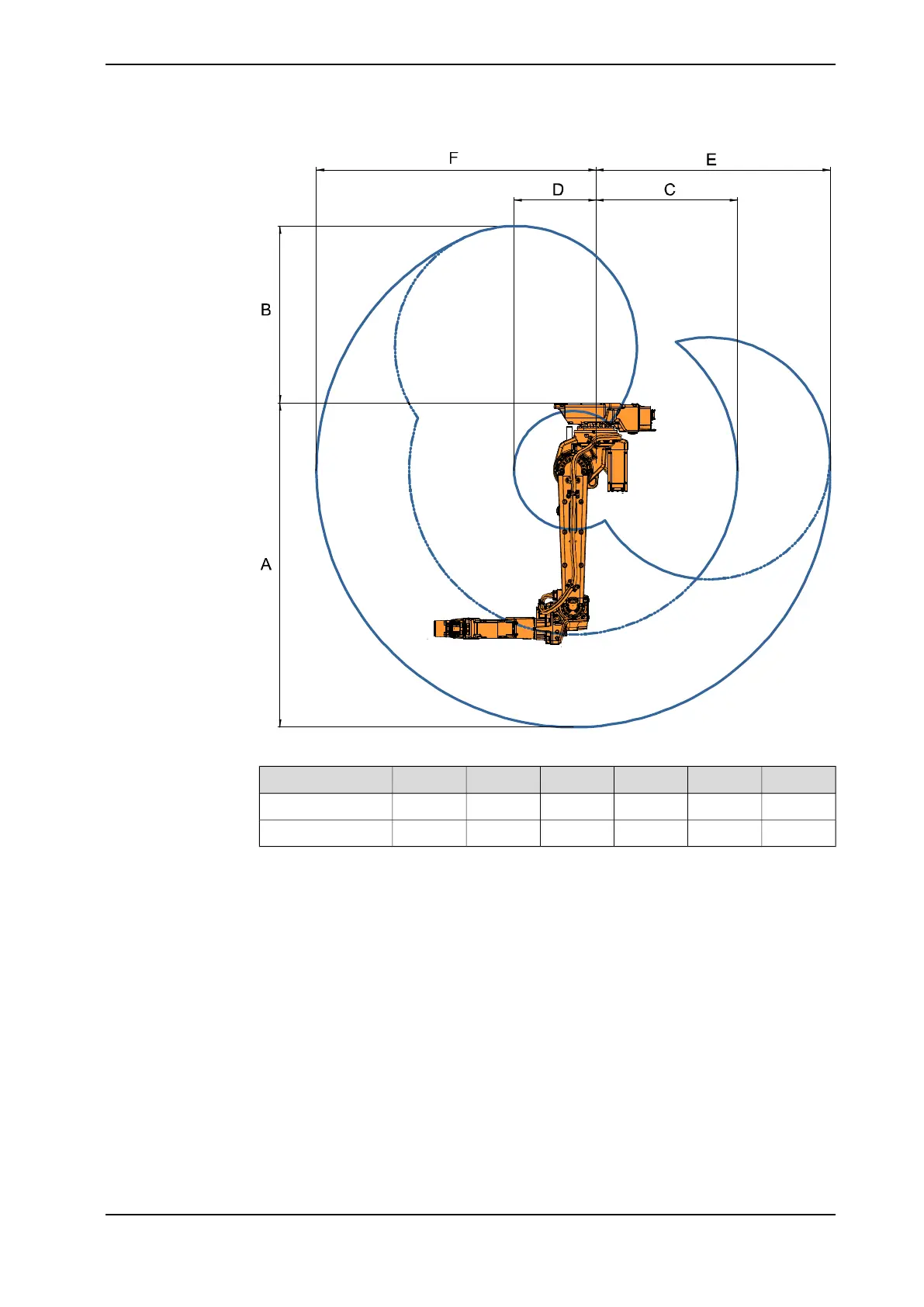

xx1000000986
Pos. FPos. EPos. DPos. CPos. BPos. AVariant
1850 mm1550 mm542 mm936 mm1171 mm2145 mmIRB 2600ID-15/1.85
2000 mm1700 mm539 mm1051 mm1321 mm2295 mmIRB 2600ID-8/2.00
Continues on next page
Product manual - IRB 2600 57
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
2 Installation and commissioning
2.2.2 Working range and type of motion
Continued
