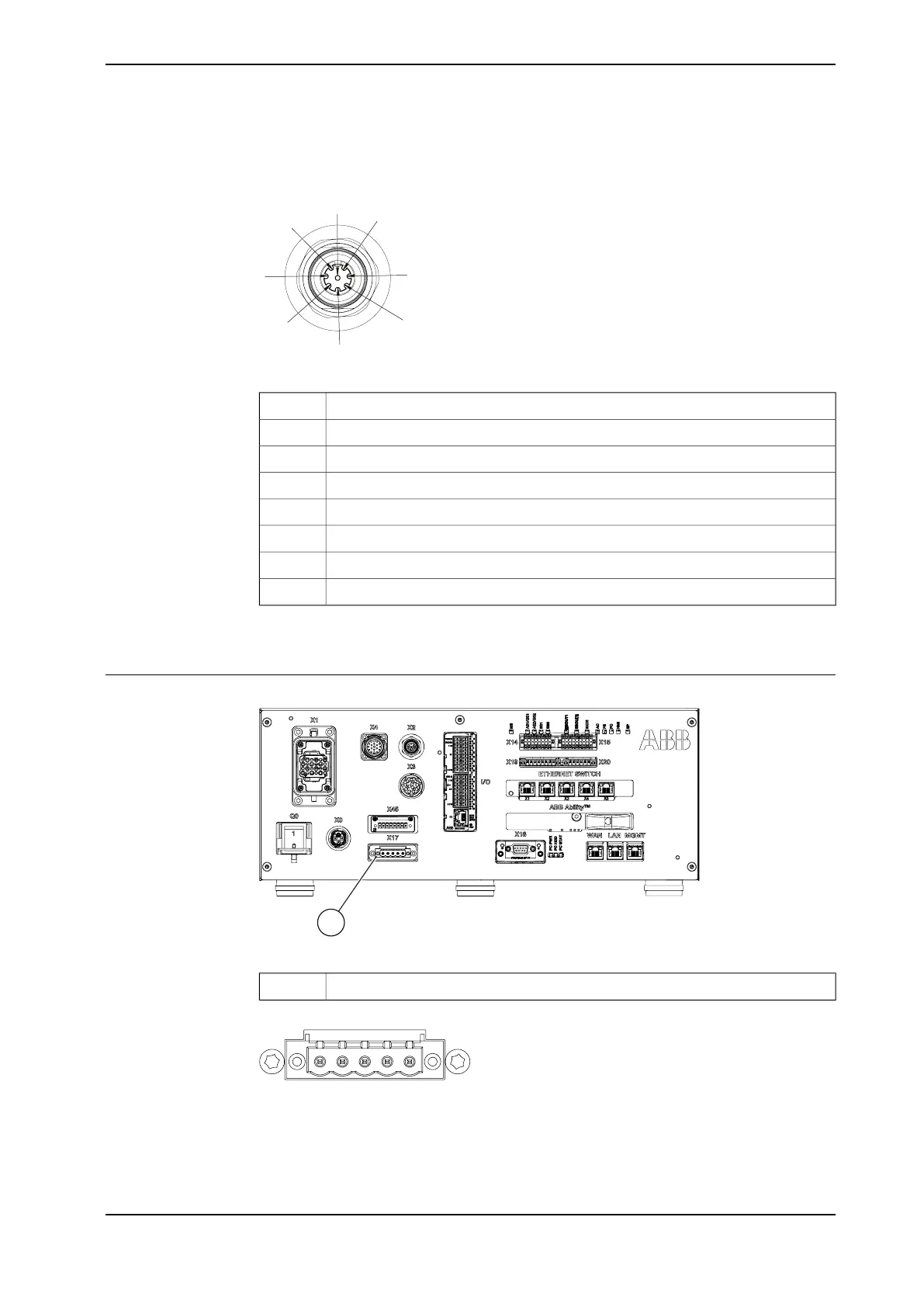

The pins definition for the harness CFI connection is described in the following
illustration.
4
5
2
3
1
7
8
6
xx2100000498
CS pair1+1
CS pair1-2
CS pair2+3
CS pair2-4
Not used5
Not used6
CP+7
CP-8
For connection details, see Circuit diagram - OmniCore C30 for CRB 15000,
3HAC072448-009.
DeviceNet board connector (option)
A
xx2100001564
X17 - IP20 DeviceNet board connectorA
1 2 3 4 5
xx2100001565
Continues on next page
Product manual - OmniCore C30 123
3HAC060860-001 Revision: P
© Copyright 2019-2022 ABB. All rights reserved.
3 Installation and commissioning
3.5.8 Descriptions for connectors
Continued
