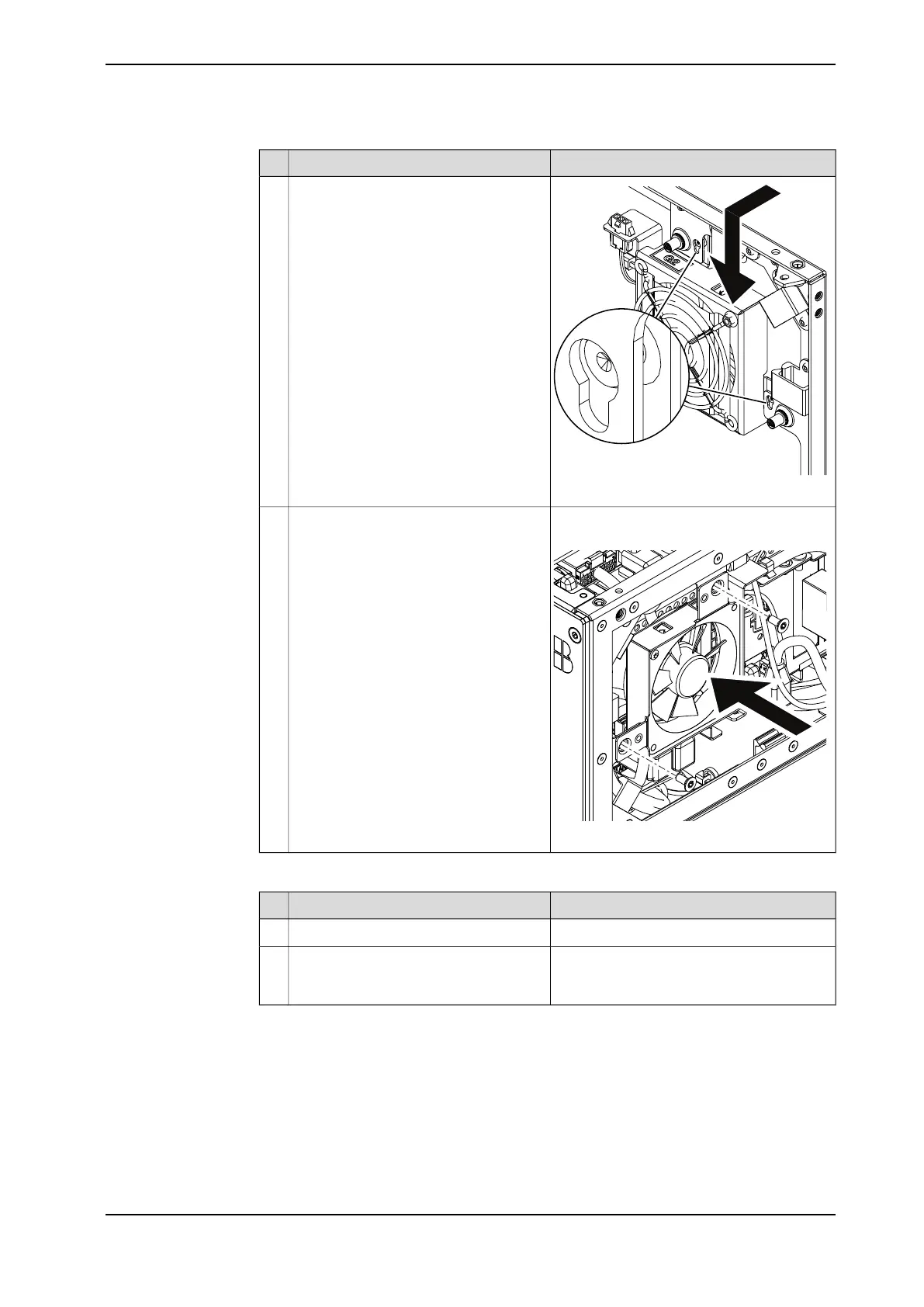

Note/IllustrationAction
xx1800000483
Refit the fan bracket into the cabinet.4
Screws: Torx, countersunk screw M4x10 (2
pcs)
xx1800000484
Secure it with the screws.5
Concluding procedure
Note/IllustrationAction
Refitting the controller covers on page 227Refit the covers.1
Perform the function tests to verify that
the safety features work properly, see
Function tests on page 212.
2
Product manual - OmniCore C30 151
3HAC060860-001 Revision: P
© Copyright 2019-2022 ABB. All rights reserved.
3 Installation and commissioning
3.7.3 Installing the Ethernet extension switch
Continued
