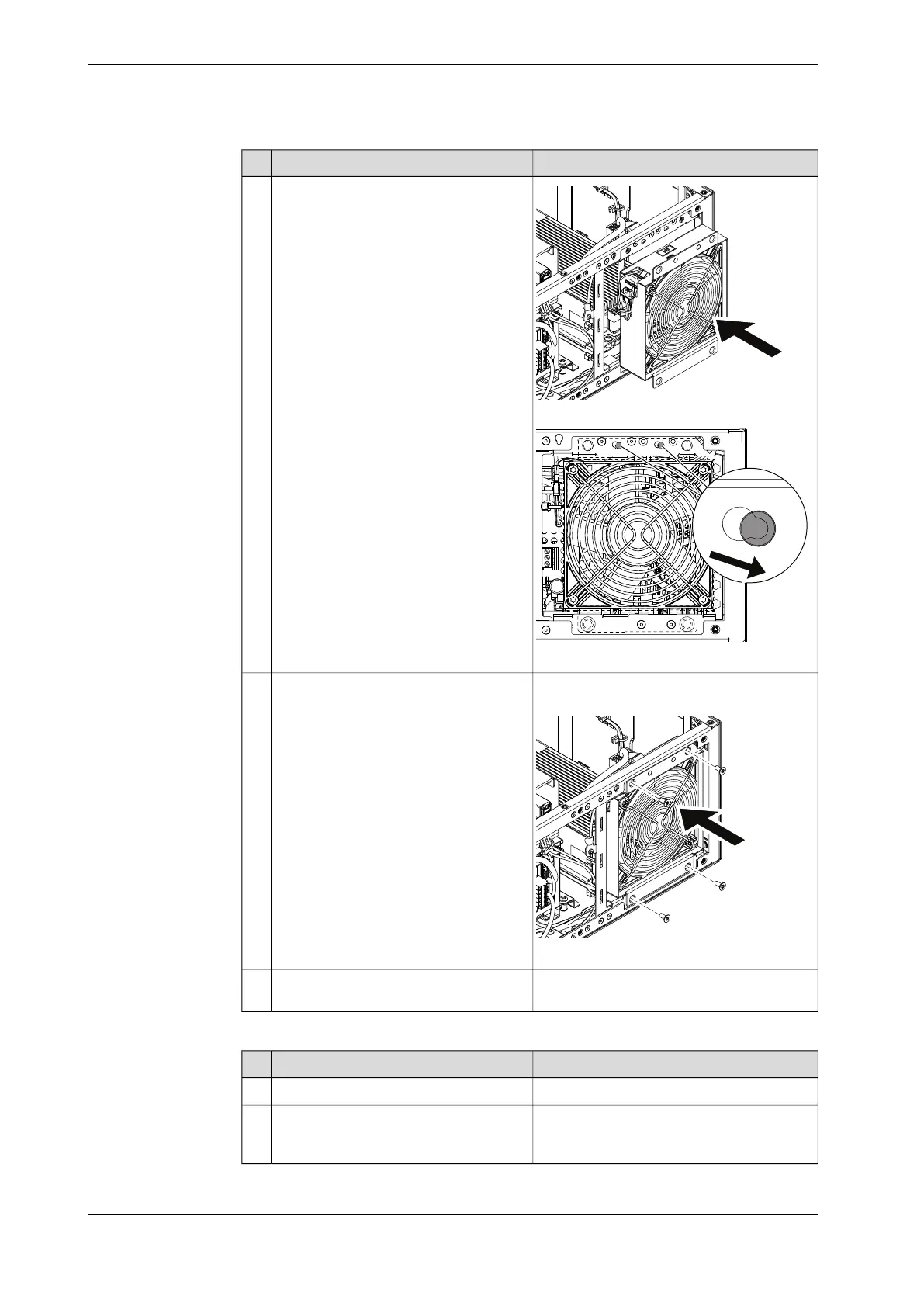

Note/IllustrationAction
xx2000002109
Refit the standard fan with the bracket.
Push and slide the bracket into position.
3
xx2000002111
Screws: Torx, countersunk screw M4x10 (4
pcs)
xx2000002107
Secure the screws.4
Reconnect:
• G1.X2-K2.X17
5
Concluding procedure
Note/IllustrationAction
Refitting the controller covers on page 227.Refit the covers.1
Perform the function tests to verify that
the safety features work properly, see
Function tests on page 212.
2
250 Product manual - OmniCore C30
3HAC060860-001 Revision: P
© Copyright 2019-2022 ABB. All rights reserved.
5 Repair
5.2.3.1.3 Replacing the standard size silent fan unit
Continued
