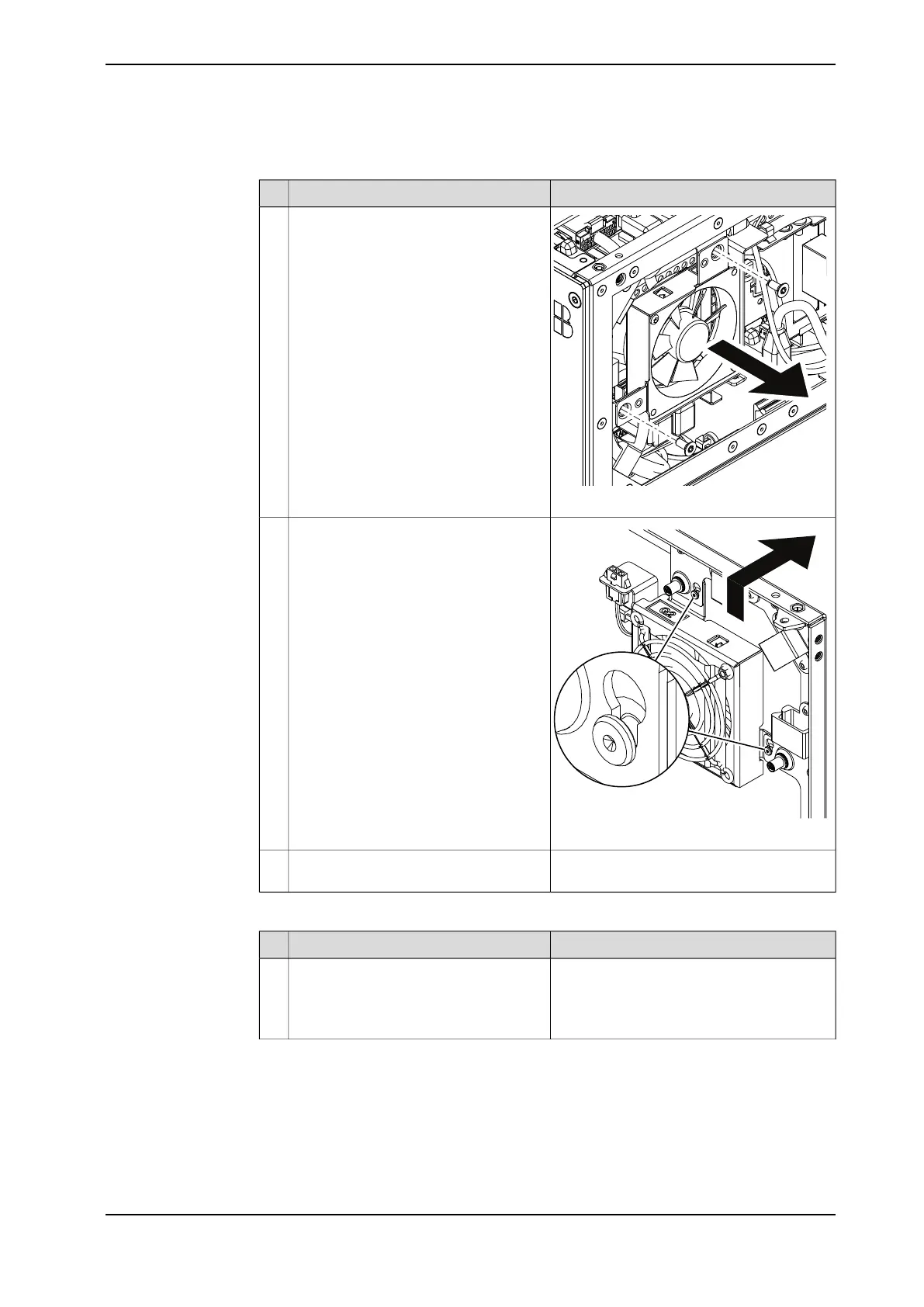

Removing the small fan
Note/IllustrationAction
xx1800000479
Remove the screws holding the fan.1
xx1800000480
Push and slide the fan bracket and lift it
out.
2
Disconnect:
• G2.X1-K2.X17
3
Removing the axis computer from the cabinet
Note/IllustrationAction
Disconnect:
• K6.X11 - A1.X3
• K6.X2 - A2.X9
• K6.X1 - K2.X3.
1
Continues on next page
Product manual - OmniCore C30 477
3HAC060860-001 Revision: P
© Copyright 2019-2022 ABB. All rights reserved.
5 Repair
5.3.7 Replacing the IP20 power outlet connector
Continued
