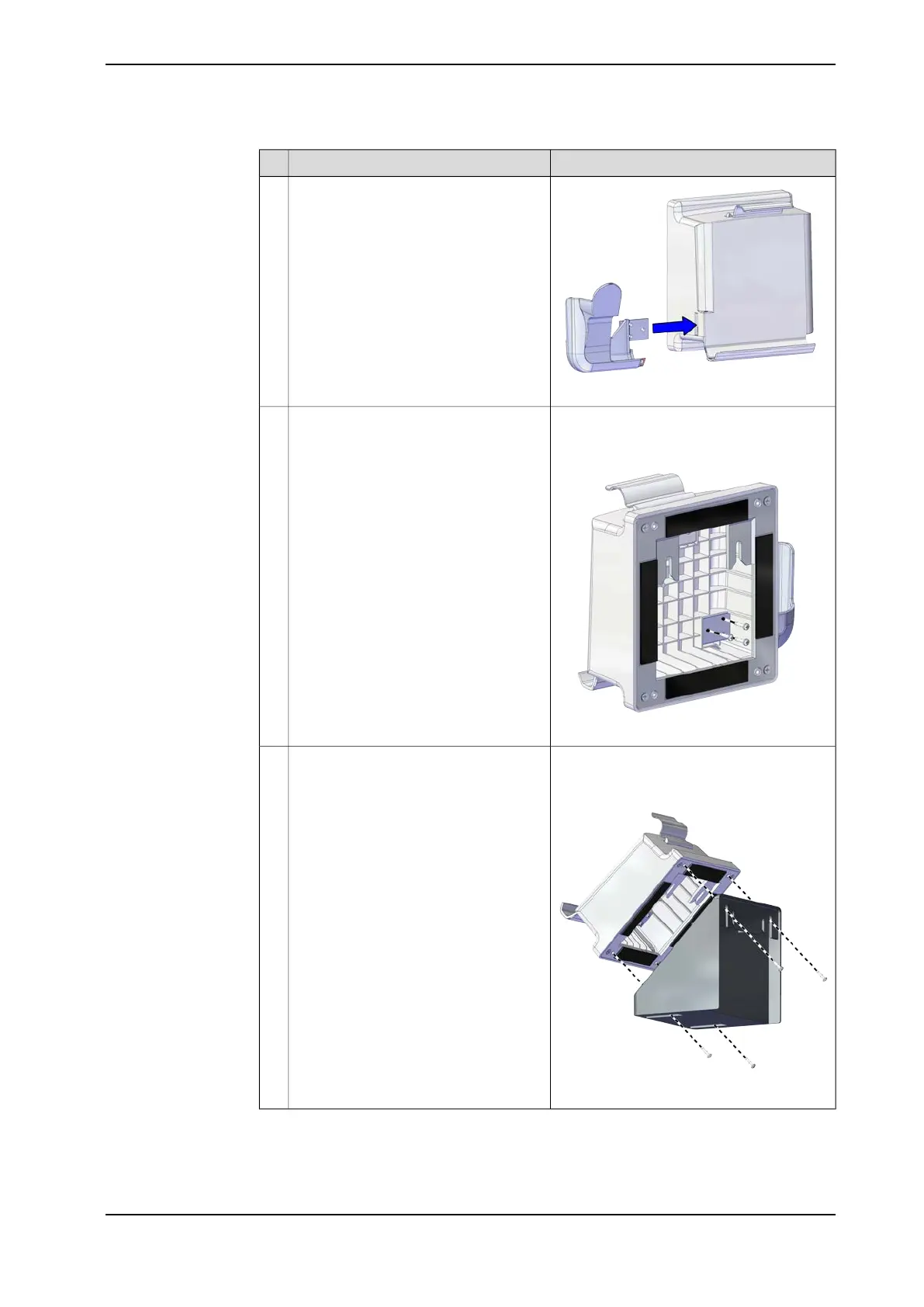

Note/illustrationAction
xx2100000765
Insert the bracket into the FlexPendant
holder.
3
Screws: BN33 Phillips pan head tapping
screw ST2.9x13 (3 pcs)
Secure with the screws.4
Tightening torque: 6 Nm-7.8 Nm
xx2100000766
Screws: BN33 Phillips pan head tapping
screw ST3.5x16 (4 pcs)
Refit the rear part and secure with the
screws.
5
Tightening torque: 9.4 Nm-12.2 Nm
xx2000002356
Continues on next page
Product manual - OmniCore C30 77
3HAC060860-001 Revision: P
© Copyright 2019-2022 ABB. All rights reserved.
3 Installation and commissioning
3.4.6 Mounting the FlexPendant holder
Continued
