ABB REL650 - Page 381

To Next Page

To Previous Page

CBREADY

Fault

SUCCL

PREP3P

CLOSECB

ACTIVE

1PT1

INPROGR

READY

SYNC

START

CBCLOSED

Closed

Open Closed

tPulse

t1 1Ph

tReclaim

Time

IEC04000196-4-en.vsd

IEC04000196 V4 EN-US

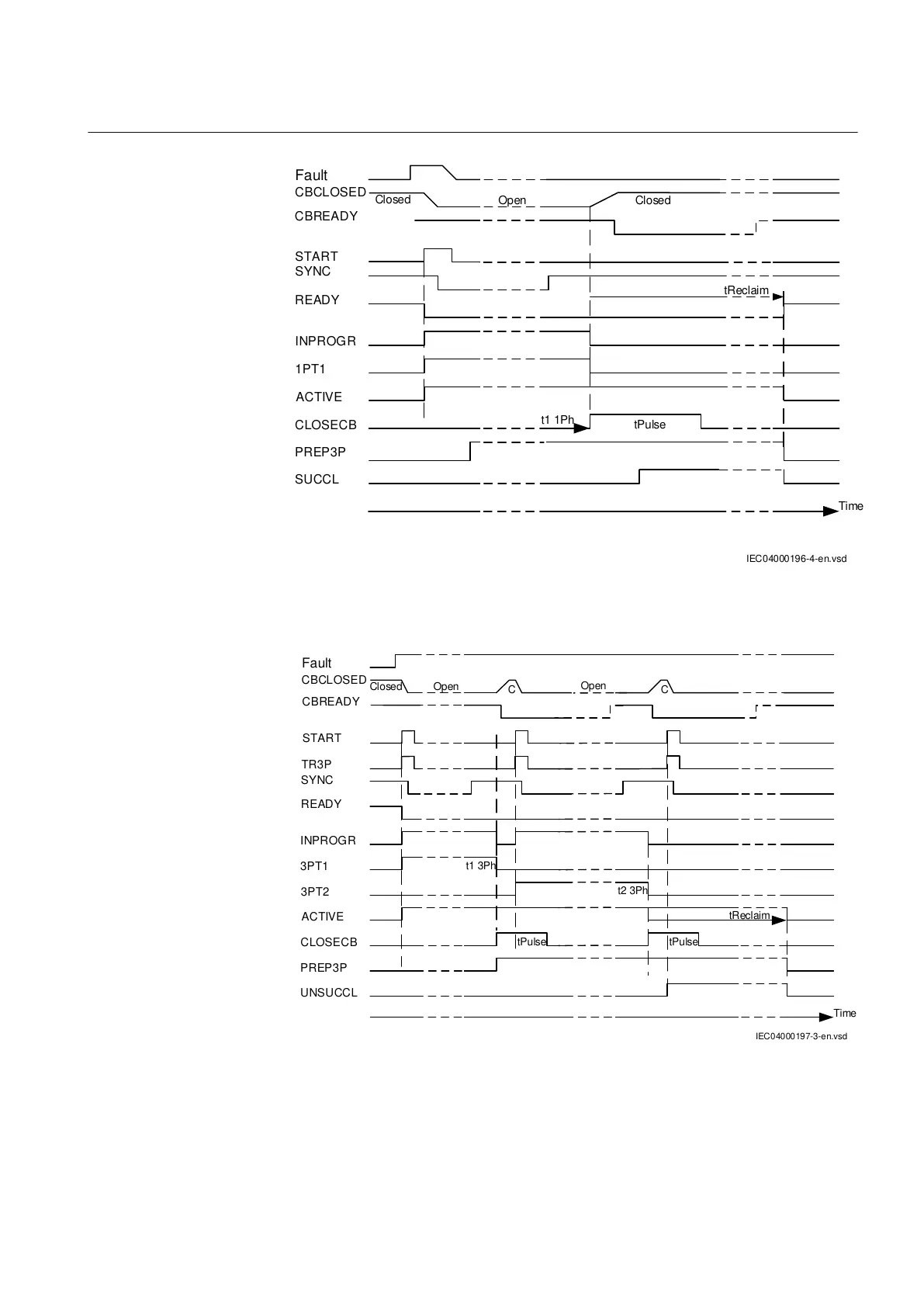

Figure 184: Transient single-phase fault, single-phase reclosing

CBREADY

Fault

UNSUCCL

ACTIVE

3PT2

3PT1

INPROGR

READY

SYNC

TR3P

START

CBCLOSED

Closed

Time

IEC04000197-3-en.vsd

PREP3P

CLOSECB

Open

t1 3Ph

tPulse

t2 3Ph

tPulse

tReclaim

IEC04000197 V3 EN-US

Figure 185: Permanent fault, three-phase trip, two-shot reclosing

1MRK 506 382-UEN A Section 11

Control

Line distance protection REL650 2.2 IEC 375

Technical manual
