17.4.9.3 Function block
GUID-A0B333CC-AEF4-40EA-B152-364648AB78D3 v1
IEC10000251-2-en.vsd
GOOSEMVRCV
BLOCK
^SRCMVOUT
^MVOUT
DATAVALID
COMMVALID
TEST
IEC10000251 V2 EN-US

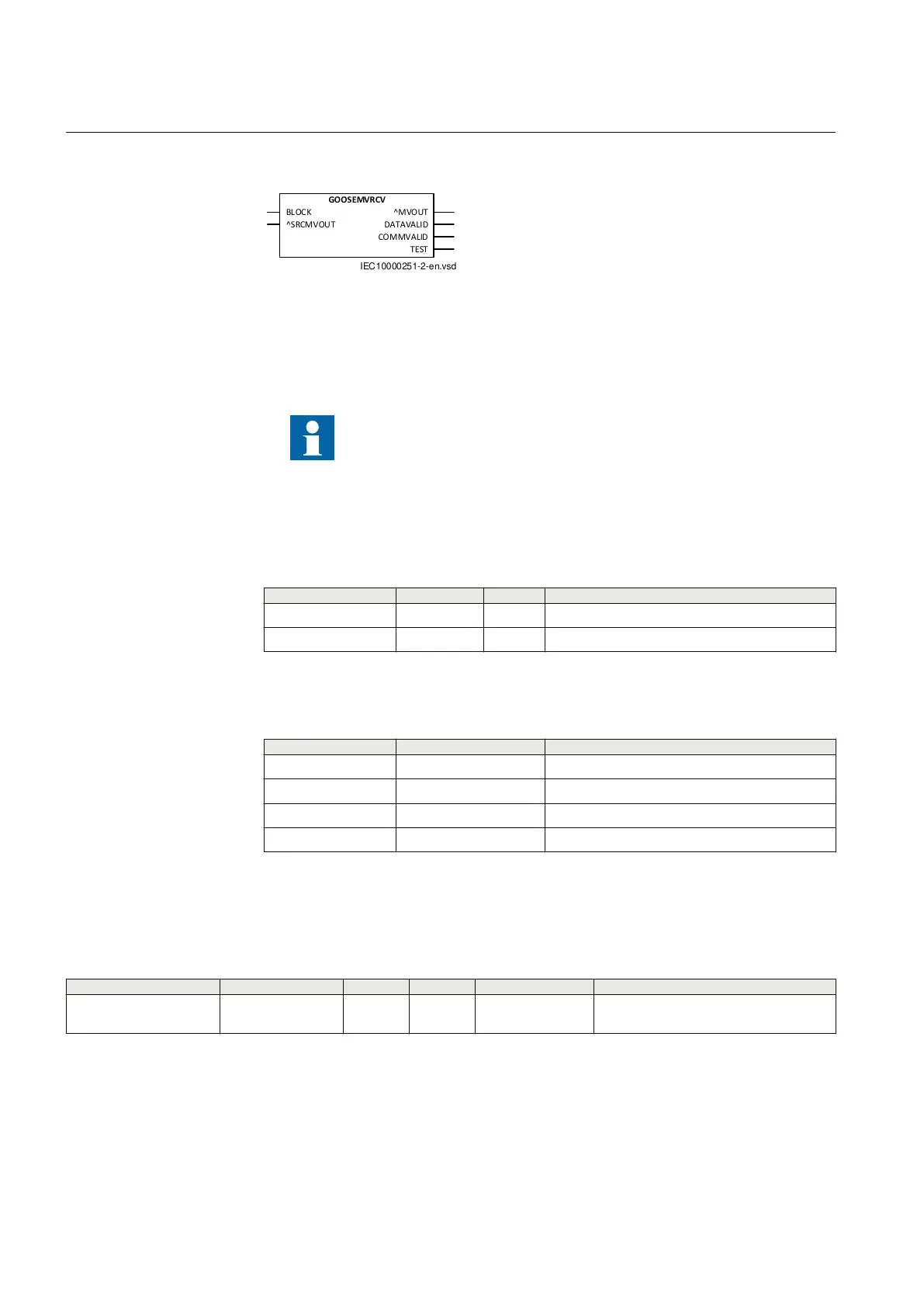

Figure 346: GOOSEMVRCV function block
17.4.9.4 Signals
GUID-2DC54788-86AF-4B4B-8E57-A89E30F0C433 v1
Except for the BLOCK input, the rest of the inputs of this GOOSE
function block are used for GOOSE connections. These
connections are visible and possible to make only if Easy GOOSE
engineering is enabled. For instructions on how to enable Easy
GOOSE engineering in PCM600, refer to the Engineering Manual.
PID-6830-INPUTSIGNALS v3
Table 495: GOOSEMVRCV Input signals
Name
Type Default Description
BLOCK BOOLEAN 0 Block of function
SRCMVOUT REAL 0 Source to measurand value output
PID-6830-OUTPUTSIGNALS v3
Table 496: GOOSEMVRCV Output signals
Name
Type Description
MVOUT REAL Measurand value output
DATAVALID BOOLEAN Data valid for measurand value output
COMMVALID BOOLEAN Communication valid for measurand value output
TEST BOOLEAN Test output
17.4.9.5 Settings
PID-6830-SETTINGS v3
Table 497: GOOSEMVRCV Non group settings (basic)
Name
Values (Range) Unit Step Default Description
Operation Off
On
- - Off Operation Off/On
17.4.9.6 Operation principle
GUID-7B24A6D3-2E5F-4961-A0A6-86436373809E v5
The DATAVALID output will be HIGH if the incoming message is with valid data.
