GUID-8AEB81D0-1731-46DF-A206-D2E758823575 v1
Table 601: Time synchronization PTP: IEC/IEEE 61850-9-3
Supported types of clock Boundary Clock (BC), Ordinary Clock (OC),
Transparent Clock (TC)
Accuracy According to standard IEC/IEEE 61850-9-3
Number of nodes According to standard IEC/IEEE 61850-9-3
Ports supported All rear Ethernet ports
19.2 Parameter setting groups
IP1745-1 v1
19.2.1 Functionality
M12006-6 v7
Use the six different groups of settings to optimize the IED operation for different
power system conditions. Creating and switching between fine-tuned setting sets,
either from the local HMI or configurable binary inputs, results in a highly
adaptable IED that can be applied to a variety of power system scenarios.
19.2.2 Function block
IP9661-1 v1
M12010-3 v3
ACTVGRP
ACTGRP1
ACTGRP2
ACTGRP3
ACTGRP4
ACTGRP5
ACTGRP6
GRP1
GRP2
GRP3
GRP4
GRP5
GRP6
SETCHGD
REMSETEN
IEC05000433-3-en.vsd
IEC05000433 V3 EN-US

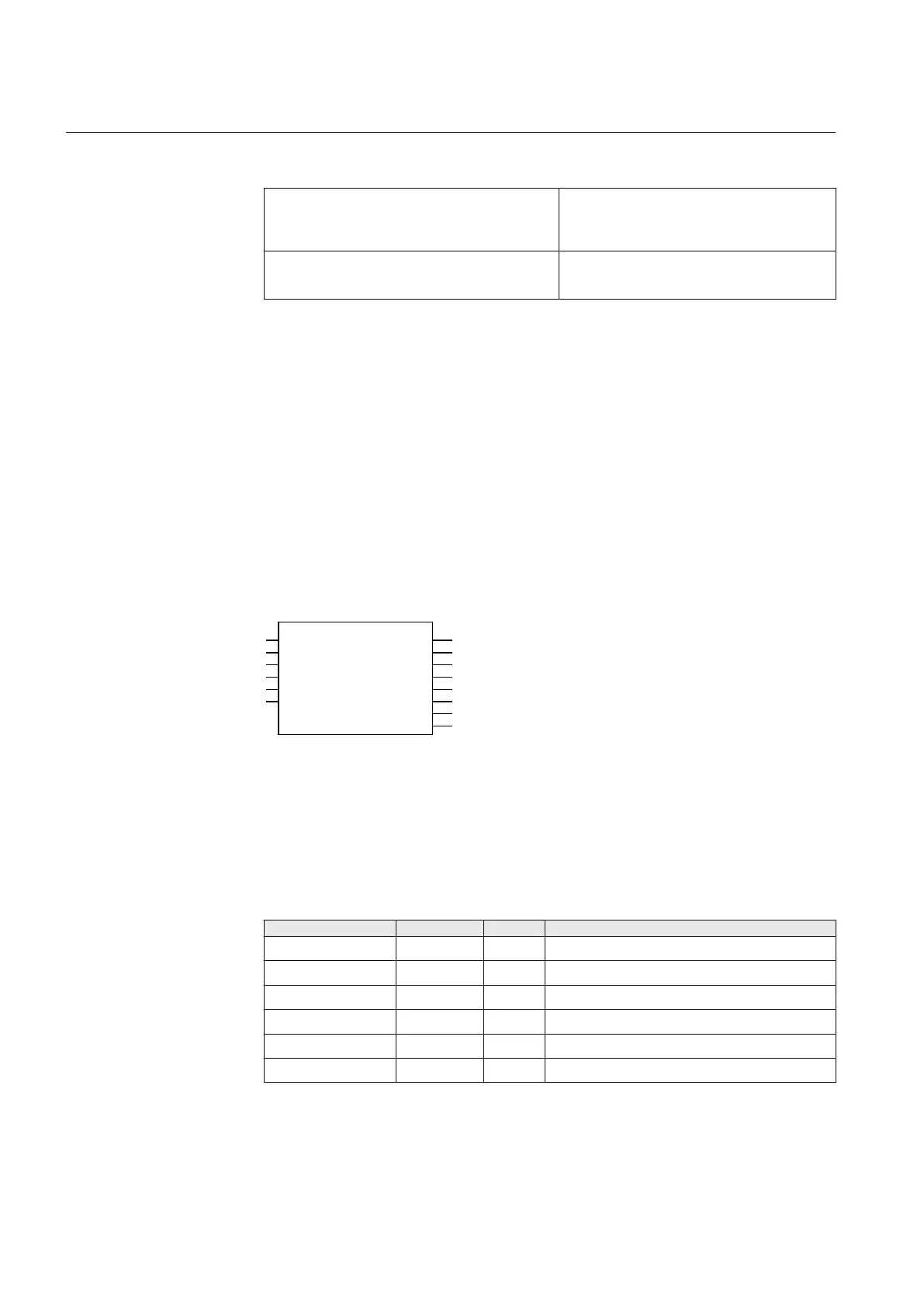

Figure 386: ActiveGroup function block
19.2.3 Signals
IP14073-1 v2
PID-6558-INPUTSIGNALS v6
Table 602: ACTVGRP Input signals
Name
Type Default Description
ACTGRP1 BOOLEAN 0 Selects setting group 1 as active
ACTGRP2 BOOLEAN 0 Selects setting group 2 as active
ACTGRP3 BOOLEAN 0 Selects setting group 3 as active
ACTGRP4 BOOLEAN 0 Selects setting group 4 as active
ACTGRP5 BOOLEAN 0 Selects setting group 5 as active
ACTGRP6 BOOLEAN 0 Selects setting group 6 as active
Section 19 1MRK 506 382-UEN A
Basic IED functions
810 Line distance protection REL650 2.2 IEC
Technical manual
