IEC99000505 V3 EN-US

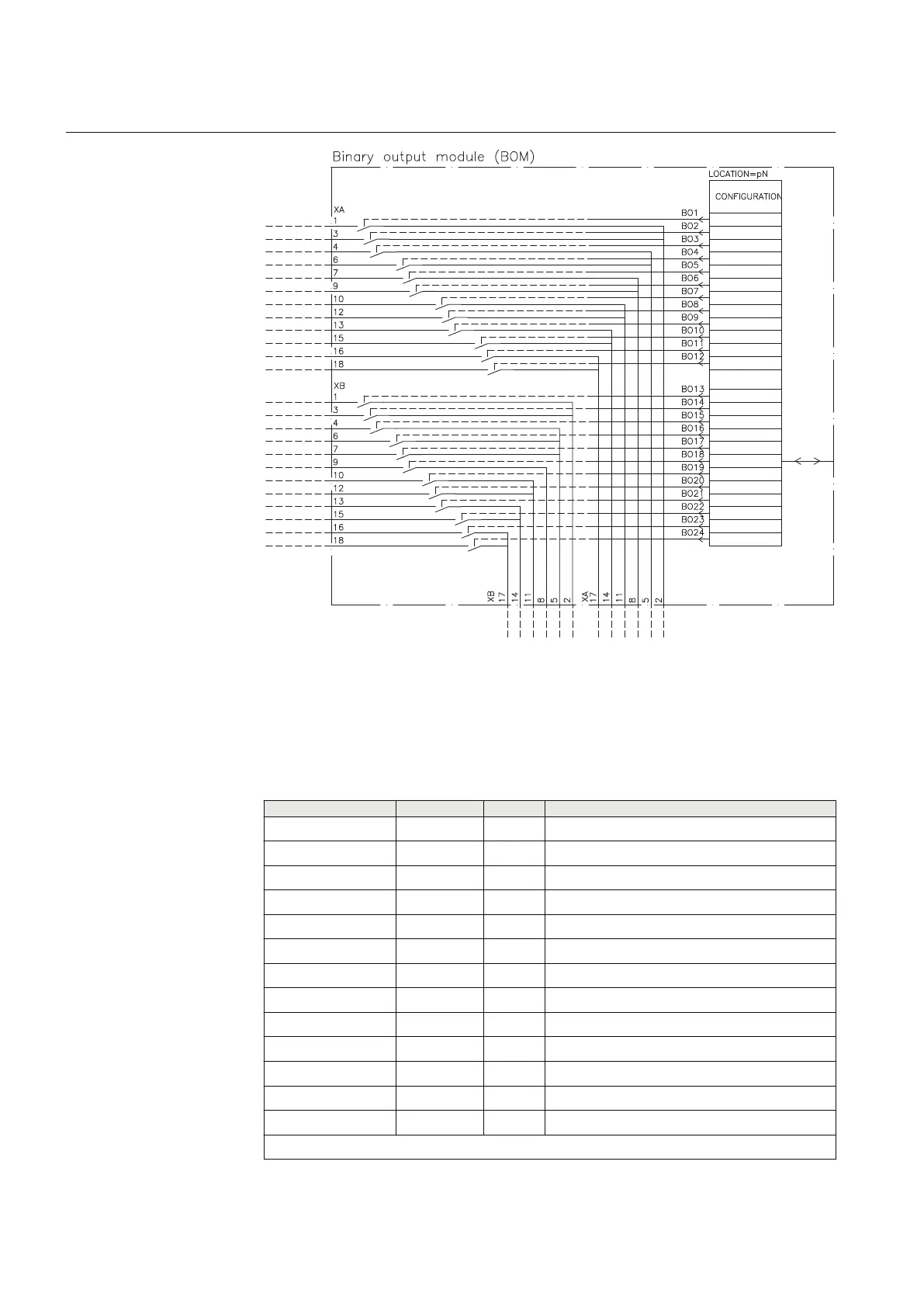

Figure 404: Connection diagram
20.2.8.3 Signals
PID-3439-INPUTSIGNALS v2
Table 640: BOM Input signals
Name
Type Default Description
BLOCK BOOLEAN 0 Block binary outputs
BO1 BOOLEAN 0 Binary output 1
BO2 BOOLEAN 0 Binary output 2
BO3 BOOLEAN 0 Binary output 3
BO4 BOOLEAN 0 Binary output 4
BO5 BOOLEAN 0 Binary output 5
BO6 BOOLEAN 0 Binary output 6
BO7 BOOLEAN 0 Binary output 7
BO8 BOOLEAN 0 Binary output 8
BO9 BOOLEAN 0 Binary output 9
BO10 BOOLEAN 0 Binary output 10
BO11 BOOLEAN 0 Binary output 11
BO12 BOOLEAN 0 Binary output 12
Table continues on next page
Section 20 1MRK 506 382-UEN A
IED hardware
848 Line distance protection REL650 2.2 IEC
Technical manual
