The mounting angles are reversible which enables mounting of the IED either to
the left or the right side of the cubicle.
A separately ordered rack mounting kit for side-by-side mounted
IEDs or IEDs together with RHGS cases should be selected so that
the total size equals 19”.
Use only the screws included in the mounting kit when mounting
the plates and the angles on the IED. Screws with wrong dimension
may damage the PCBs inside the IED.
20.4.2.2 Mounting procedure for 19” panel rack mounting
M11948-2 v6
IEC04000452-3-en.vsd
1b
1a
2
3
IEC04000452 V3 EN-US

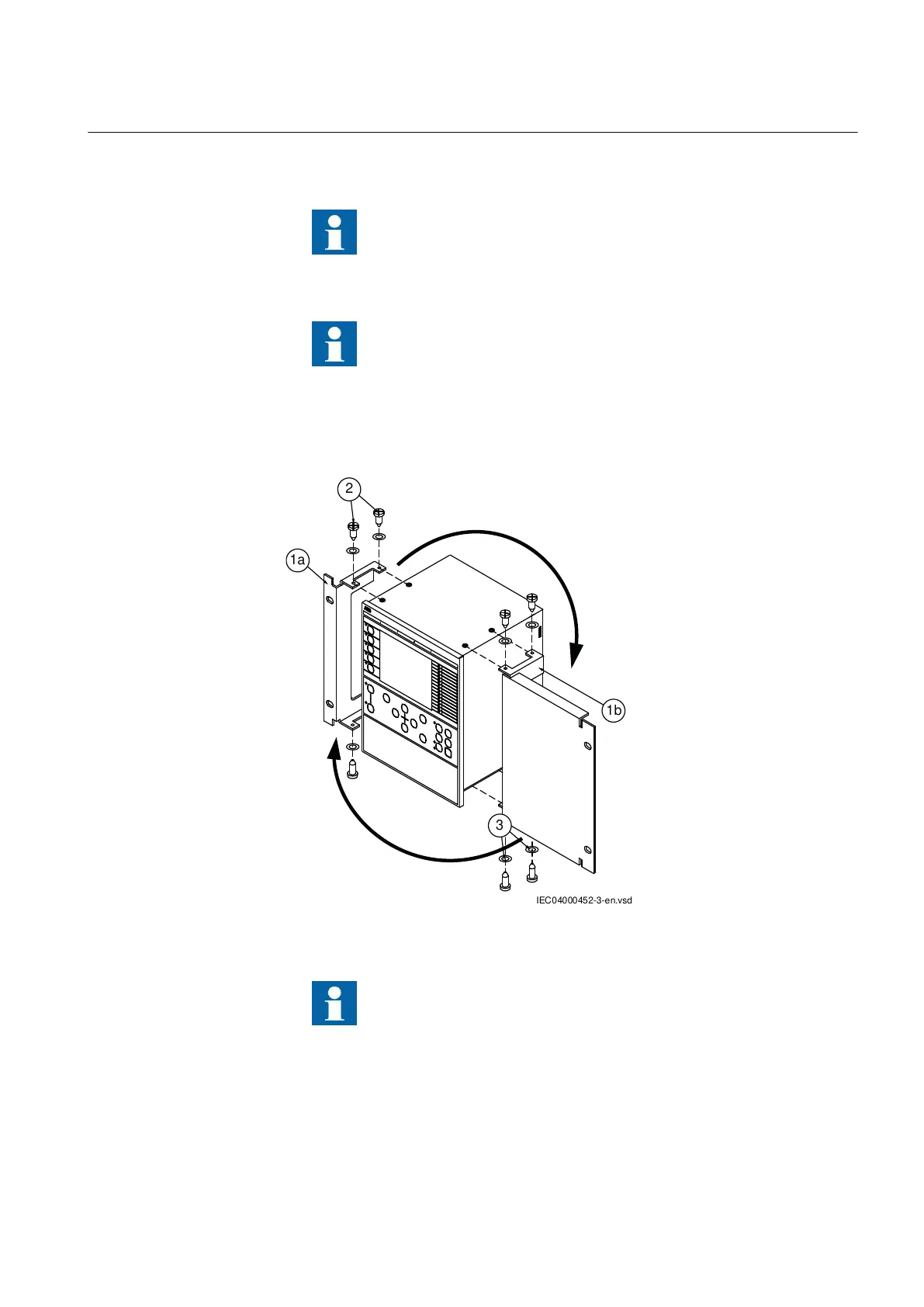

Figure 420: 19” panel rack mounting details
The required torque for the screws is 3.5 Nm.
