13.1.6.1 Logic diagram

M12258-7 v6

IEC0500 0517=4=en=Original..vsdx

TRIPALLBLOCK

AND

TRIN L1

tTripMin

TRINL2

TRIN L3

TRIN

1PTREF

1PTRZ

IEC05000517 V4 EN-US

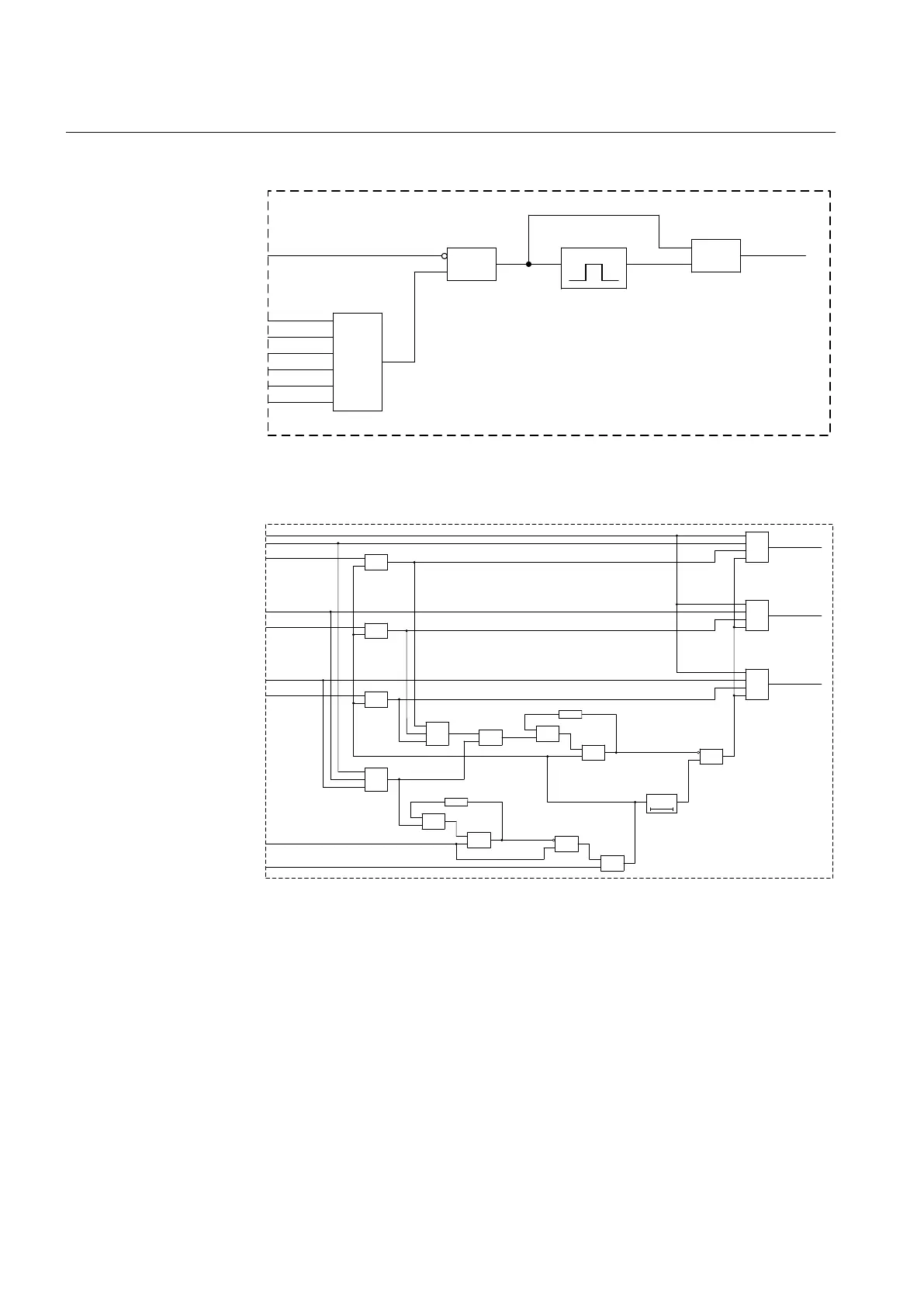

Figure 240: Three-phase front logic — simplified logic diagram

IEC10000056=4=en=Or iginal.vsdx

L1TRIP

TRIN

1PTR EF

tWaitForPHS

TRINL1

AND

PSL1

AND

PSL2

PSL3

TRINL2

TRINL3

L2TRIP

L3TRIP

-LOOP

AND

1PTRZ

-LOOP

AND

IEC10000056 V4 EN-US

Figure 241: Phase segregated front logic

Section 13 1MRK 506 382-UEN A

Logic

470 Line distance protection REL650 2.2 IEC

Technical manual
