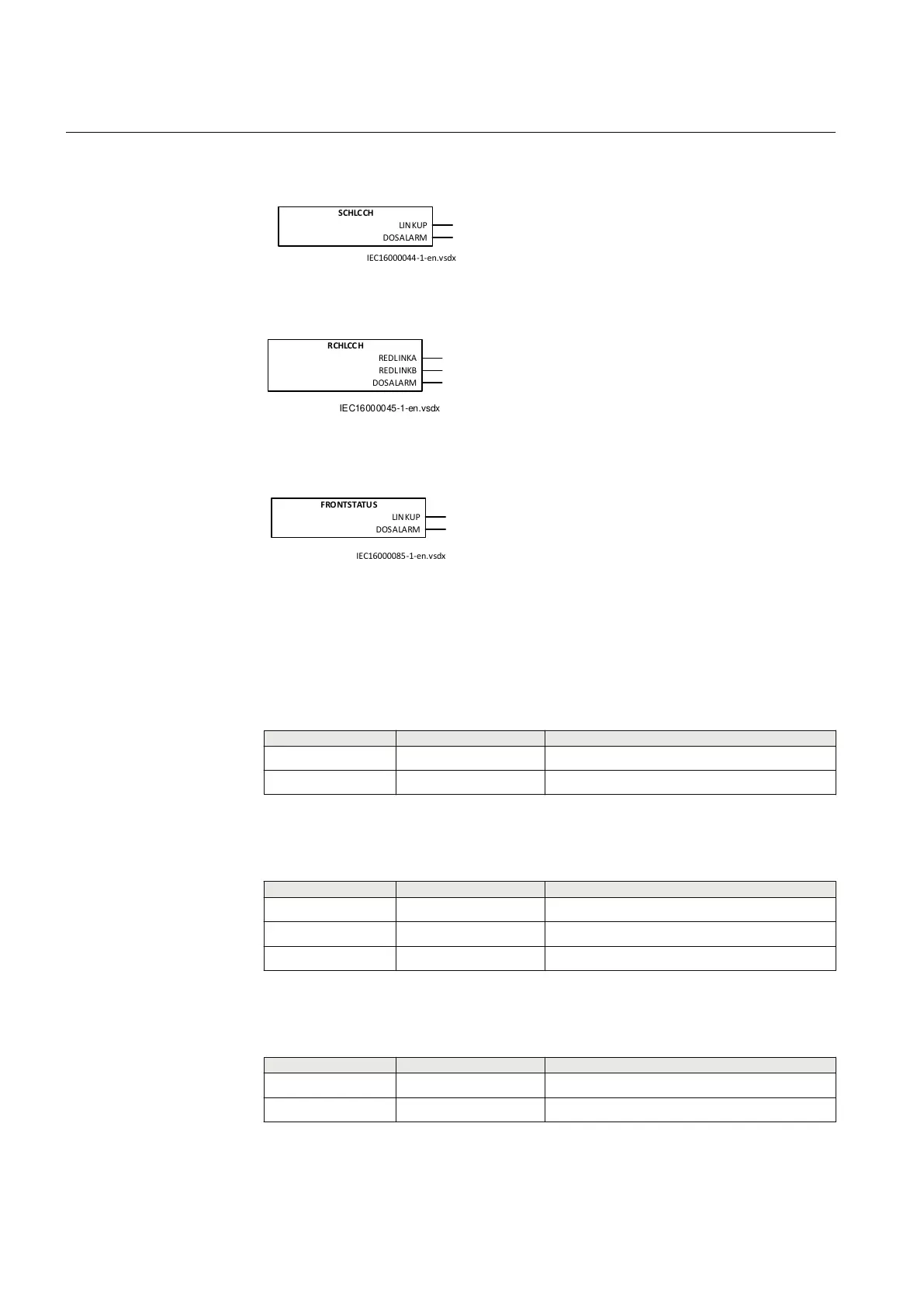

16.2.2 Function block
GUID-727BF536-1D60-4060-A674-5D73F252CCB7 v1
SCHLC CH
LIN KUP
DOSALARM
IEC16000044-1-en.vsdx
IEC16000044 V1 EN-US
Figure 334: SCHLCCH Function block
RCHLCCH
REDLINKA
REDL INKB
DOSALARM
IEC16000045-1-en.vsdx
IEC16000045 V1 EN-US
Figure 335: RCHLCCH Function block
FRONTSTATU S
LINKUP
DOSALARM
IEC16000085-1-en.vsdx
IEC16000085 V1 EN-US
Figure 336: FRONTSTATUS Function block
16.2.3 Signals
PID-6818-OUTPUTSIGNALS v2
Table 467: SCHLCCH Output signals
Name
Type Description
LINKUP BOOLEAN Access point link status
DOSALARM BOOLEAN Denial of service alarm
PID-6819-OUTPUTSIGNALS v2
Table 468: RCHLCCH Output signals
Name
Type Description
REDLINKA BOOLEAN Channel A redundancy status
REDLINKB BOOLEAN Channel B redundancy status
DOSALARM BOOLEAN Denial of service alarm (A + B)
PID-6813-OUTPUTSIGNALS v3
Table 469: FRONTSTATUS Output signals
Name
Type Description
LINKUP BOOLEAN Link status
DOSALARM BOOLEAN Denial of service alarm
