Gateway
Source Destination
Default gateway
IEC16000095-1-en.vsdx
IEC16000095 V1 EN-US

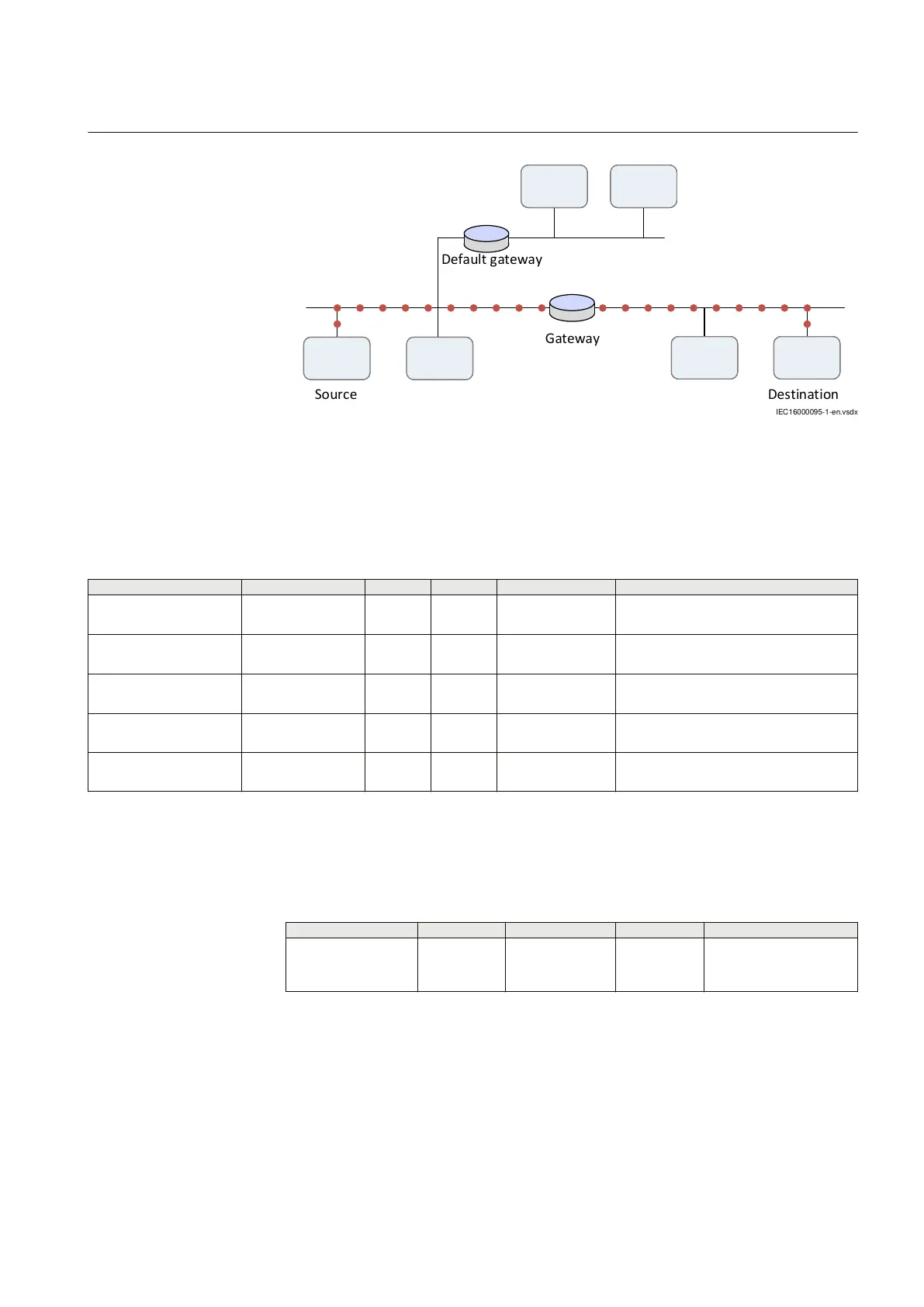

Figure 339: Route from source to destination through gateway
16.5.2 Settings
PID-6761-SETTINGS v2
Table 476: ROUTE_1 Non group settings (basic)
Name
Values (Range) Unit Step Default Description
Operation Off
On
- - Off Operation on/off of the route
IPAddress 0 - 18 IP
Address
1 0.0.0.0 IP address of the gateway
DestIPAddress 0 - 18 IP
Address
1 0.0.0.0 Destination IP address
DestSubnetMask 0 - 18 IP
Address
1 255.255.255.255 Destination IP subnet mask
Name 1 - 18 - 1 Route1 User configurable name of the route
[1-18 char]
16.5.3 Monitored data
PID-6761-MONITOREDDATA v2
Table 477: ROUTE_1 Monitored data
Name
Type Values (Range) Unit Description
RouteConfig INTEGER 0=Ok
1=Error
-1=Off
-
Route configuration
status
1MRK 506 382-UEN A Section 16
Ethernet
Line distance protection REL650 2.2 IEC 669
Technical manual
