ABB REL650 - Mounting Procedure for Flush Mounting

To obtain IP54 class protection, an additional factory mounted
sealing must be ordered when ordering the IED.
20.4.1.2 Mounting procedure for flush mounting
M11942-2 v5
1
5
6
3
IEC16000080=1=en .vsd
2
4
IEC16000080 V1 EN-US

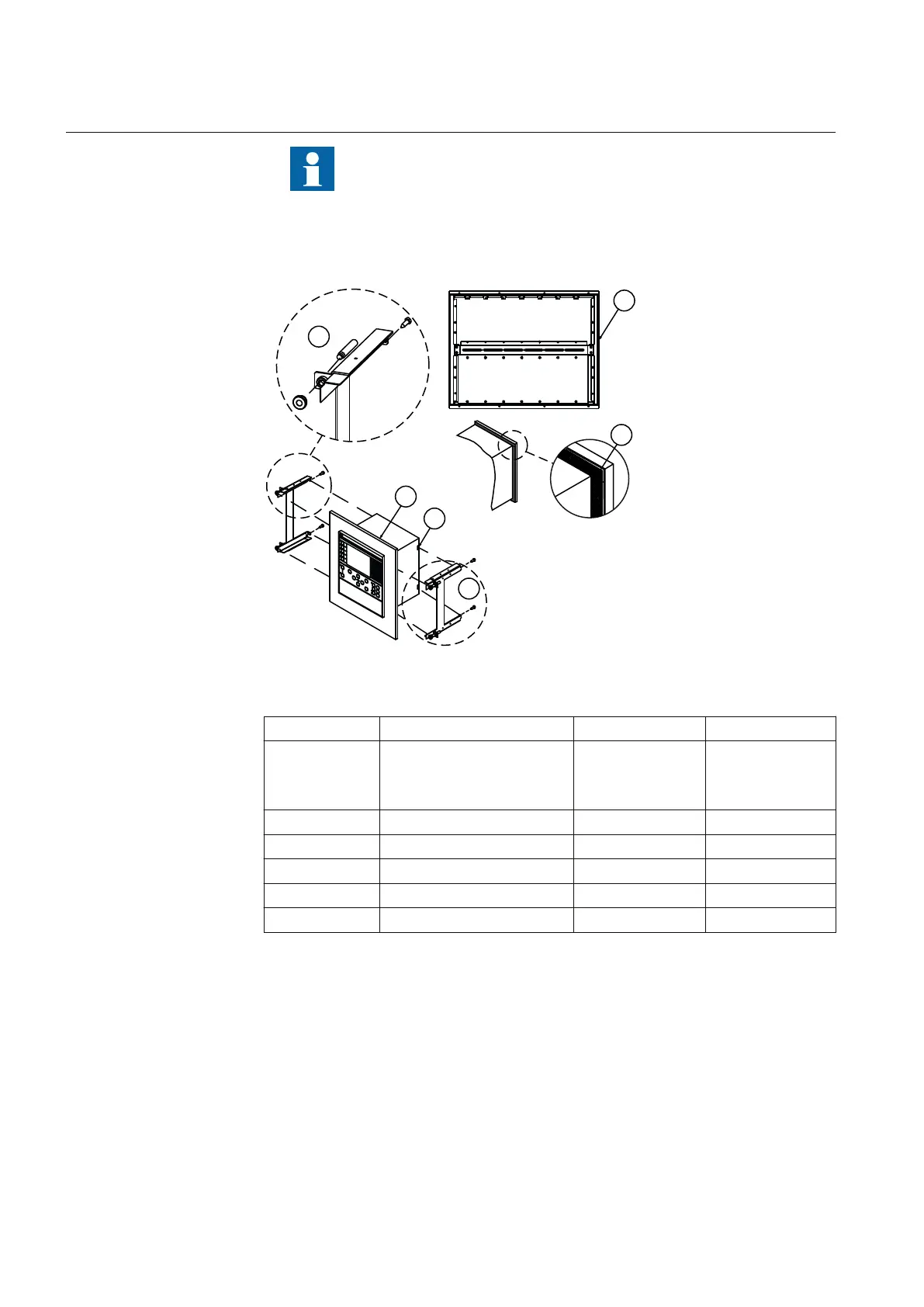

Figure 419: Flush mounting details.
PosNo
Description Quantity Type
1 Sealing strip, used to obtain
IP54 class. The sealing strip is
factory mounted between the
case and front plate.
-
-
2 Fastener 2 -
3 Groove - -
4 Screw 4 M3x8 mm
5 Joining point of sealing strip - -
6 Panel - -
20.4.2 19” panel rack mounting
IP10313-1 v1
20.4.2.1 Overview
SEMOD127656-5 v4
The IED can be mounted in a standard 19” cubicle rack by using a mounting kit
consisting of two mounting angles and their fastening screws.
