13.10.8 Technical data

GUID-3820F464-D296-4CAD-8491-F3F997359D79 v1

Table 344: Number of BTIGAPC instances

Function

Quantity with cycle time

3 ms 8 ms 100 ms

BTIGAPC 4 4 8

13.11 Integer to boolean 16 conversion IB16

13.11.1 Identification

SEMOD167941-2 v2

Function description IEC 61850

identification

IEC 60617

identification

ANSI/IEEE C37.2

device number

Integer to boolean 16 conversion IB16 - -

13.11.2 Functionality

SEMOD158373-5 v6

Integer to boolean 16 conversion function (IB16) is used to transform an integer

into a set of 16 boolean (logical) signals.

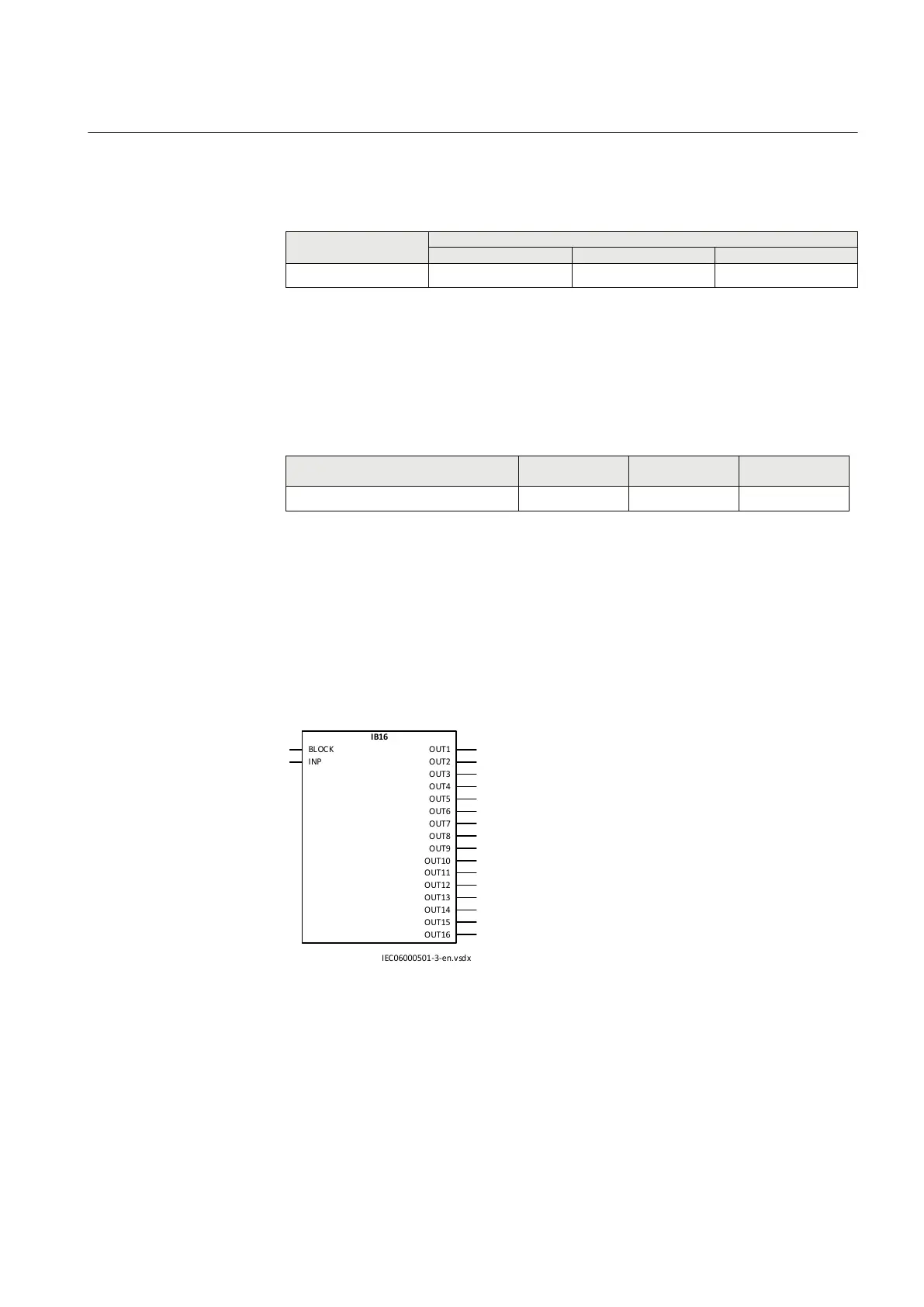

13.11.3 Function block

SEMOD158389-4 v4

IB16

BLOCK

INP

OUT1

OUT2

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

OUT12

OUT13

OUT14

OUT15

OUT16

IEC06000501-3-en.vsd x

IEC06000501 V3 EN-US

Figure 268: IB16 function block

1MRK 506 382-UEN A Section 13

Logic

Line distance protection REL650 2.2 IEC 511
